LED lighting systems have rapidly gained popularity due to their energy efficiency, longevity, and environmental benefits. However, when installing LED lights, understanding the components involved is crucial to ensure optimal performance and safety. Among these components, the LED driver and the LED transformer are often misunderstood, with many users assuming they are interchangeable. While both play essential roles in powering LED lights, they function differently. In this article, we will explore the key differences between an LED driver and an LED transformer, helping you understand their individual roles in an LED system.

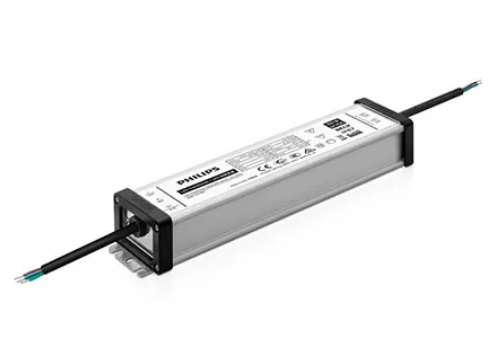

What is an LED Driver?
An LED driver is a power supply that regulates the electrical current flowing to an LED or LED array. Unlike traditional light bulbs, LEDs require a constant current to function properly. The LED driver ensures that the LED receives the appropriate amount of current, protecting it from overloading or being underpowered.
Key Functions of an LED Driver
1. Current Regulation: The primary role of an LED driver is to regulate the current supplied to the LED. Since LEDs are sensitive to changes in current, the driver helps maintain a steady flow of current to prevent damage.
2. Voltage Conversion: LEDs typically operate on a low DC (Direct Current) voltage, and the LED driver converts the input AC (Alternating Current) voltage from the power source to the required DC voltage for the LEDs.
3. Dimming Capabilities: Many LED drivers come with built-in dimming features, allowing users to adjust the brightness of their LEDs. This is particularly useful for creating mood lighting or saving energy when full brightness is unnecessary.
4. Protection Features: LED drivers often come with built-in safety features, such as overload protection, thermal protection, and short circuit protection, to ensure that the LED system remains safe and efficient throughout its lifespan.
What is an LED Transformer?
An LED transformer is another term used to describe a type of power supply unit that steps down the voltage to a level suitable for powering LEDs. However, the key distinction between an LED transformer and an LED driver is that the LED transformer primarily focuses on voltage conversion rather than current regulation.
Key Functions of an LED Transformer
1. Voltage Conversion: An LED transformer converts the input voltage (usually from AC mains) into the appropriate voltage for the LED system. While traditional lighting systems often require high-voltage AC, LEDs need low-voltage DC power, which is provided by the transformer.
2. Step-down Voltage: Most LED transformers are used to step down the high-voltage AC input to a lower, safe voltage (such as 12V or 24V) for the LED lights. This is especially common in low-voltage LED systems.
3. Limited Current Control: Unlike an LED driver, an LED transformer does not have built-in current regulation. Therefore, when using an LED transformer, an additional component, such as a LED driver, may be required to ensure proper current regulation.
Key Differences Between LED Drivers and LED Transformers
An LED driver converts AC (Alternating Current) into DC (Direct Current), which is necessary for most LED bulbs and lights to function. In many of SERA's fittings and lamps, the LED driver is integrated into the back of the lamp or housed within the fitting itself. However, some manufacturers may require a separate LED driver for their products.
A LED transformer is a power supply used in conjunction with LED lighting systems. Unlike LED drivers, LED transformers operate with a higher output wattage. As a result, a LED transformer can power larger, longer lighting systems.
A LED transformer is a double wound device with just AC in and AC out. Drivers are more sophisticated and give a DC output using a switched-mode system, and have current regulating and monitoring circuits built in.
1. Voltage vs. Current Regulation
- LED Driver: Primarily regulates the current supplied to the LED, ensuring the LED operates efficiently and safely.
- LED Transformer: Focuses on stepping down the voltage to a level that is suitable for the LED, but does not regulate the current. As a result, an LED transformer may need to be paired with a driver in some cases.
2. Application in LED Systems
- LED Driver: Used in LED systems that require precise control of both current and voltage. It is suitable for a wide range of LED applications, including dimmable lights, architectural lighting, and high-power LED systems.
- LED Transformer: Typically used in low-voltage LED systems, such as garden lights, outdoor lighting, and some accent lighting applications.
3. Power Output
- LED Driver: Provides a constant current to the LED, ensuring that the LED receives the exact amount of power it needs.
- LED Transformer: Converts high-voltage AC to a lower voltage DC but does not provide consistent current, meaning it may not be suitable for all LED systems.
4. Compatibility with Dimming Systems
- LED Driver: Many LED drivers are compatible with dimming systems, allowing users to adjust the brightness of their LEDs.
- LED Transformer: Generally does not include dimming capabilities, although some specialized transformers may offer this feature.
5. Protection Features
- LED Driver: Most LED drivers include built-in protection features, such as overload protection, thermal protection, and short circuit protection.
- LED Transformer: Generally lacks advanced protection features, as it is designed mainly for voltage conversion.
When to Use an LED Driver vs. an LED Transformer
Understanding when to use an LED driver and when to use an LED transformer depends on the specific needs of your LED system. If your LED system requires precise current regulation and the possibility of dimming, an LED driver is the best choice. On the other hand, if you are working with a low-voltage LED system that does not require current regulation, an LED transformer may be sufficient.
In some cases, a combination of both components may be necessary to achieve optimal performance. For example, a LED transformer can step down the voltage, and a separate LED driver can regulate the current, ensuring the LEDs operate efficiently and safely.
Conclusion
In summary, the LED driver and the LED transformer are two distinct components that play essential roles in LED lighting systems. While both are involved in powering LEDs, their primary functions differ—LED drivers regulate current and voltage for precise LED performance, while LED transformers step down voltage for low-voltage systems. Understanding the differences between the two and choosing the right component for your LED system will ensure optimal performance, safety, and energy efficiency.
