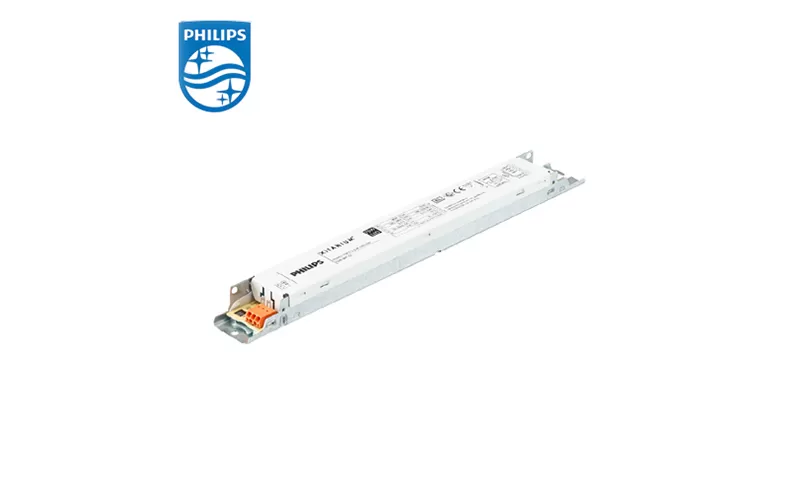

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

Product date

Model name:PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

12NC:929002165880

Output voltage: 105 to 170 Vdc

Output current: 0.35 A

Output power: 19W

Pieces per box: 50

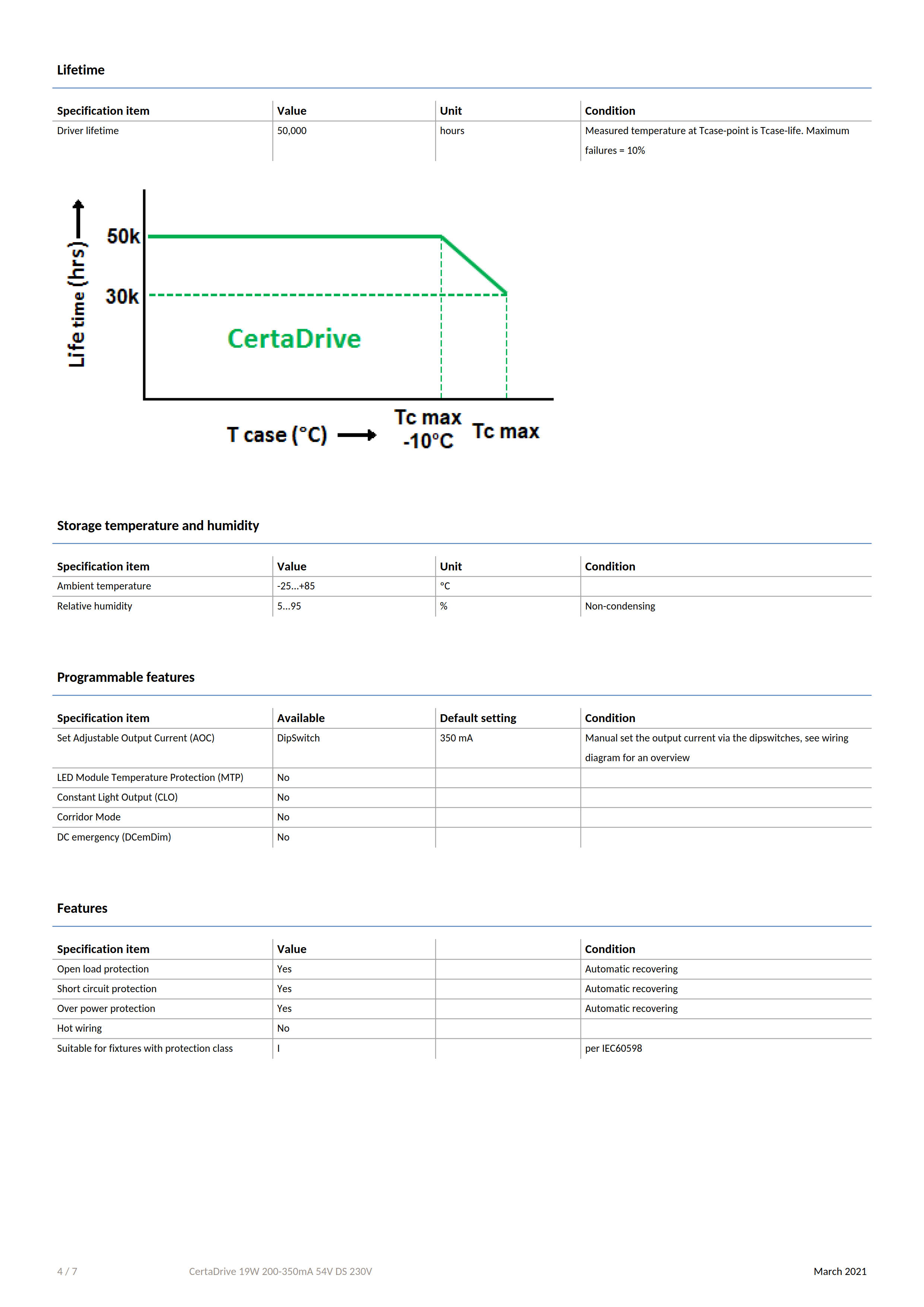

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

12NC:929002165880

Output voltage: 105 to 170 Vdc

Output current: 0.35 A

Output power: 19W

Pieces per box: 50

Driver lifetime: 50,000 hours

Control method: Fixed

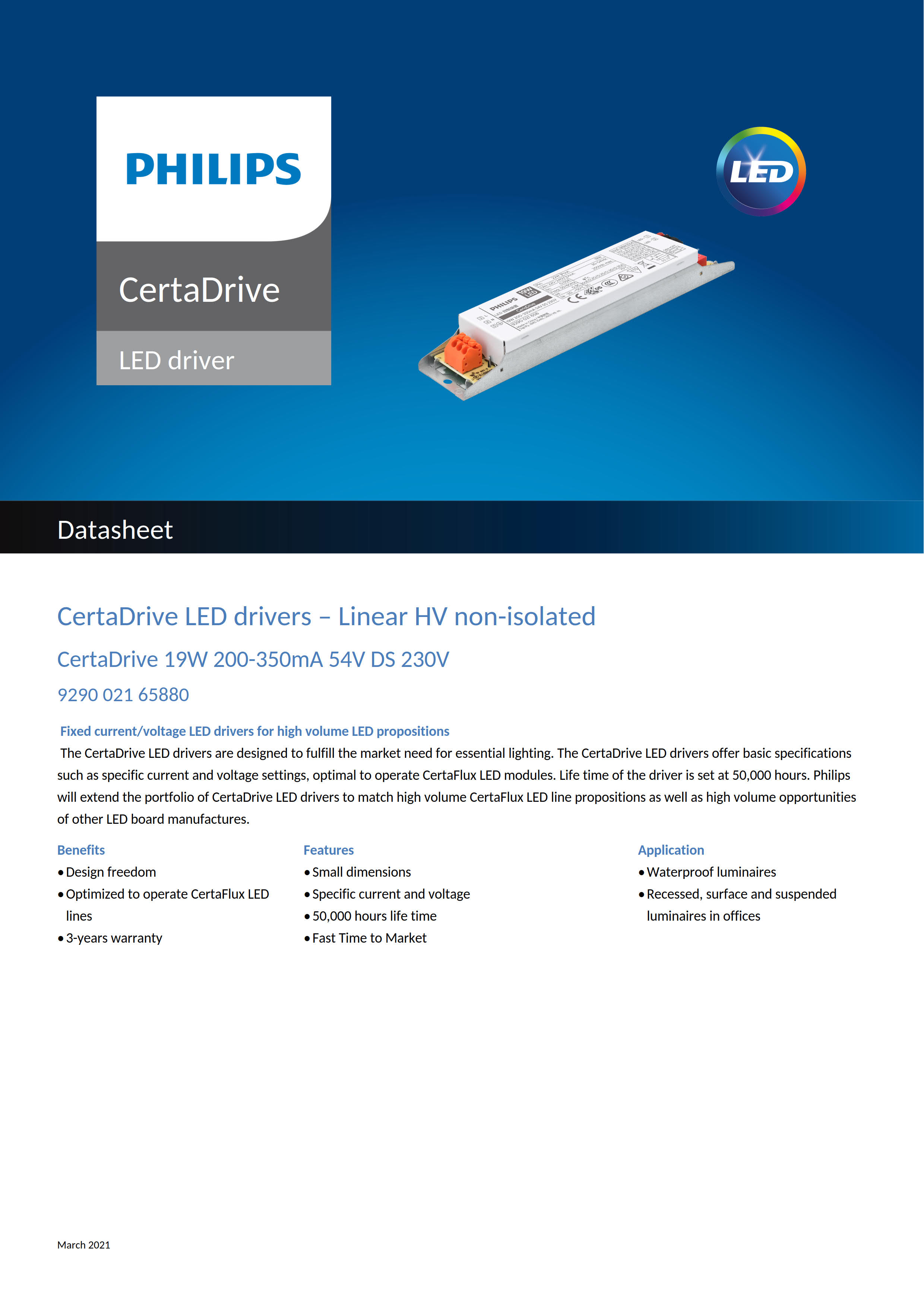

CertaDrive LED drivers – Linear HV non-isolated CertaDrive 19W 200-350mA 54V DS 230V 9290 021 65880

Fixed current/voltage LED drivers for high volume LED propositions

The CertaDrive LED drivers are designed to fulfill the market need for essential lighting. The CertaDrive LED drivers offer basic specifications such as specific current and voltage settings, optimal to operate CertaFlux LED modules. Life time of the driver is set at 50,000 hours. Philips will extend the portfolio of CertaDrive LED drivers to match high volume CertaFlux LED line propositions as well as high volume opportunities of other LED board manufactures.

Benefits

• Design freedom

• Optimized to operate CertaFlux LED lines

• 3-years warranty


Features

• Small dimensions

• Specific current and voltage

• 50,000 hours life time

• Fast Time to Markets


Application

• Waterproof luminaires

• Recessed, surface and suspended luminaires in offices

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880

PHILIPS CertaDrive 19W 200-350mA 54V DS 230V 929002165880


PHILIPS Product 12NC List

12NC List:

9290 021 65880 CertaDrive 19W 200-350mA 54V DS 230V

9290 021 65980 CertaDrive 44W 200-350mA 125V DS 230V

9290 021 66080 CertaDrive 65W 200-350mA 185V DS 230V
