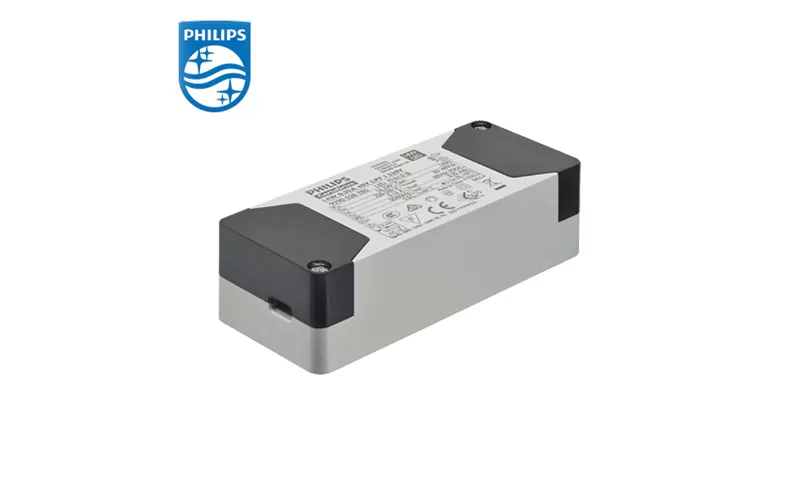

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

Product date

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

12NC:929002878880

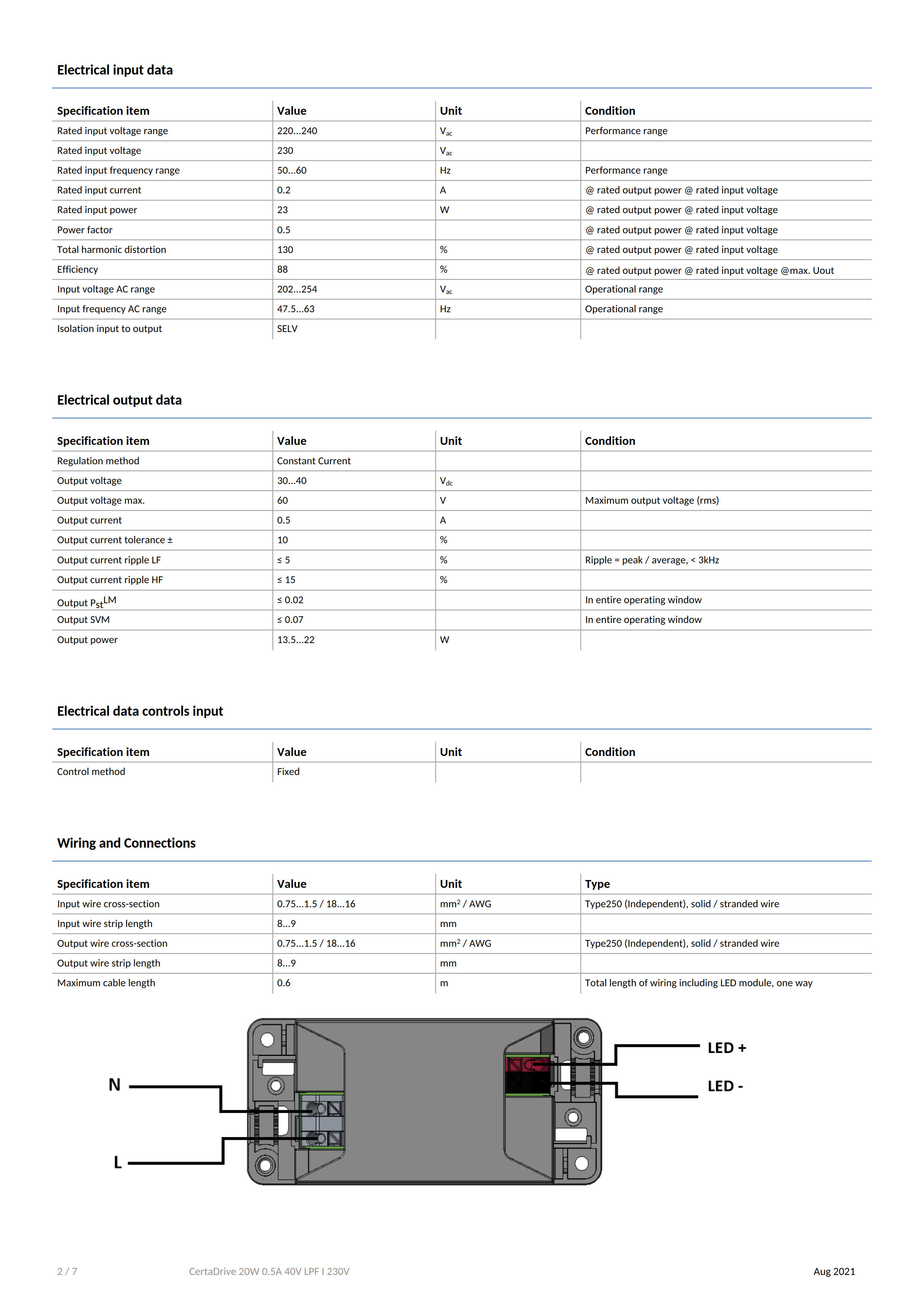

Output voltage: 30 to 40 Vdc

Output current: 0.5 A

Output power: 13.5 to 22 W

Pieces per box: 64

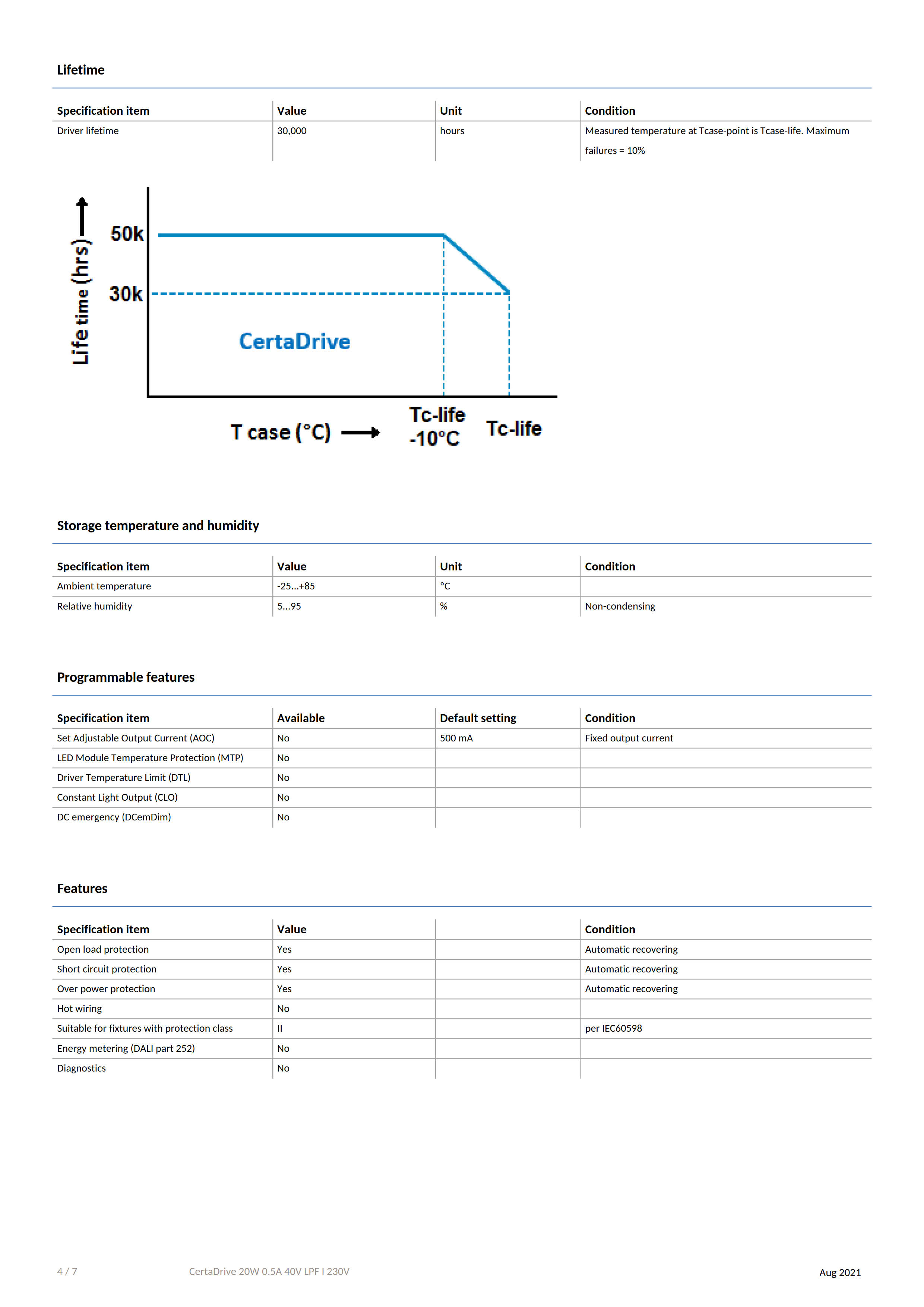

Driver lifetime: 30,000 hours

Control method: Fixed


PRODUCT DATA

Product date

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

12NC:929002878880

Output voltage: 30 to 40 Vdc

Output current: 0.5 A

Output power: 13.5 to 22 W

Pieces per box: 64

Driver lifetime: 30,000 hours

Control method: Fixed

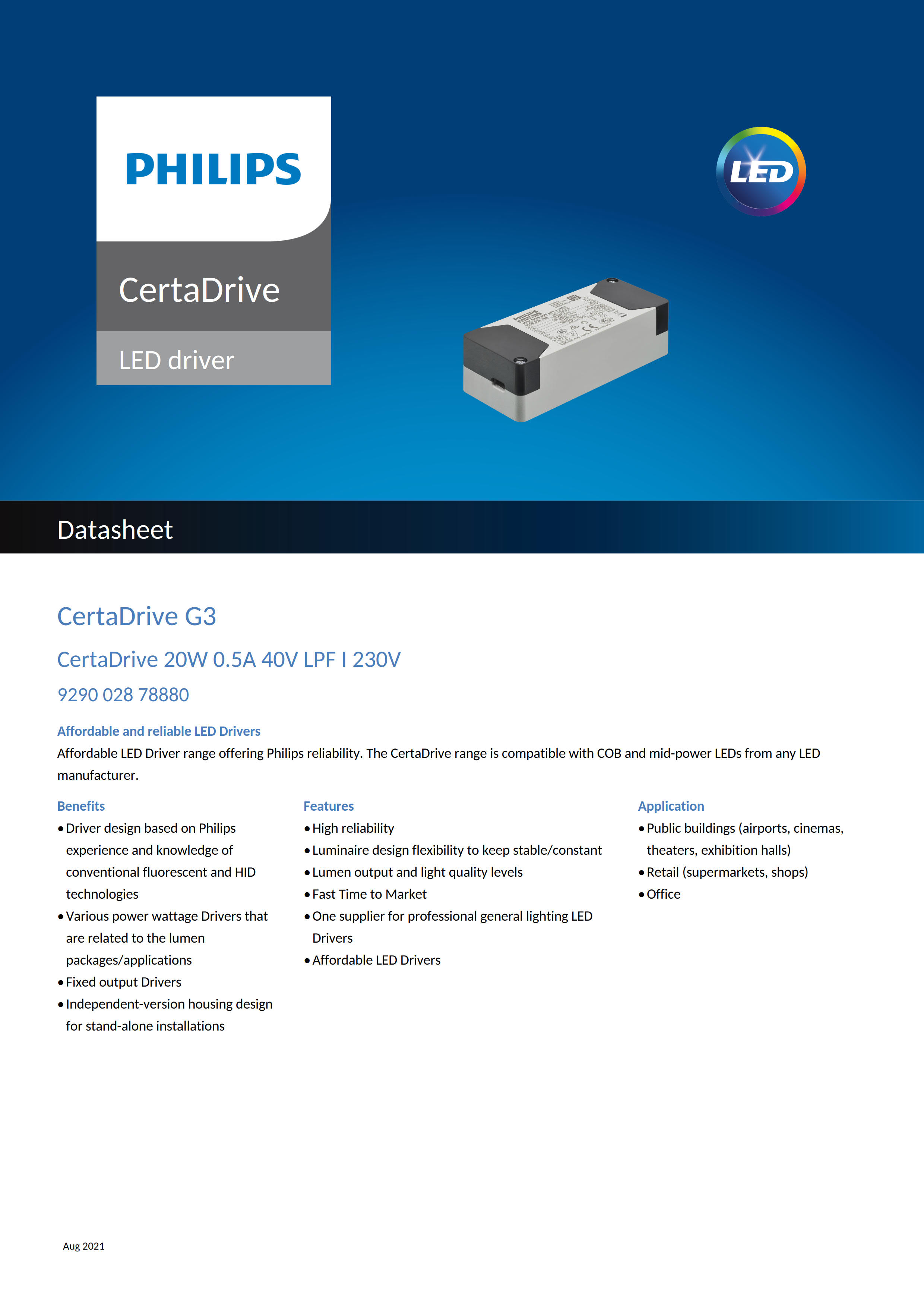

CertaDrive G3

CertaDrive 20W 0.5A 40V LPF I 230V 9290 028 78880

Affordable and reliable LED Drivers Affordable LED Driver range offering Philips reliability. The CertaDrive range is compatible with COB and mid-power LEDs from any LED manufacturer


Benefits

•Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies

•Various power wattage Drivers that are related to the lumen packages/applications

• Fixed output Drivers

• Independent-version housing design for stand-alone installations


Features

• High reliability

• Luminaire design flexibility to keep stable/constant

• Lumen output and light quality levels

• Fast Time to Market

• One supplier for professional general lighting LED Drivers

• Affordable LED Drivers


Application

• Public buildings (airports, cinemas, theaters, exhibition halls…)

•Retail (supermarkets, shops)

•Office

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880

PHILIPS CertaDrive 20W 0.5A 40V LPF I 230V 929002878880


PHILIPS Product 12NC List

12NC List:

 929002878080 CertaDrive 4W 0.1A 40V LPF I 230V

 929002878180 CertaDrive 6W 0.15A 40V LPF I 230V

 929002878280 CertaDrive 8W 0.2A 40V LPF I 230V

 929002878380 CertaDrive 10W 0.25A 40V LPF I 230V

 929002878480 CertaDrive 12W 0.3A 40V LPF I 230V

 929002878580 CertaDrive 14W 0.35A 40V LPF I 230V

 929002878680 CertaDrive 16W 0.4A 40V LPF I 230V

 929002878780 CertaDrive 18W 0.45A 40V LPF I 230V

 929002878880 CertaDrive 20W 0.5A 40V LPF I 230V
