Product date
Model name:PHILIPS CertaDrive 25W 0.5/0.6A 42V 230V I G3 929002804680
12NC:29002804680
Output voltage: 30 to 42 Vdc
Output current: 0.5 / 0.6 A
Output power: 15 to 25 W
Pieces per box: 40

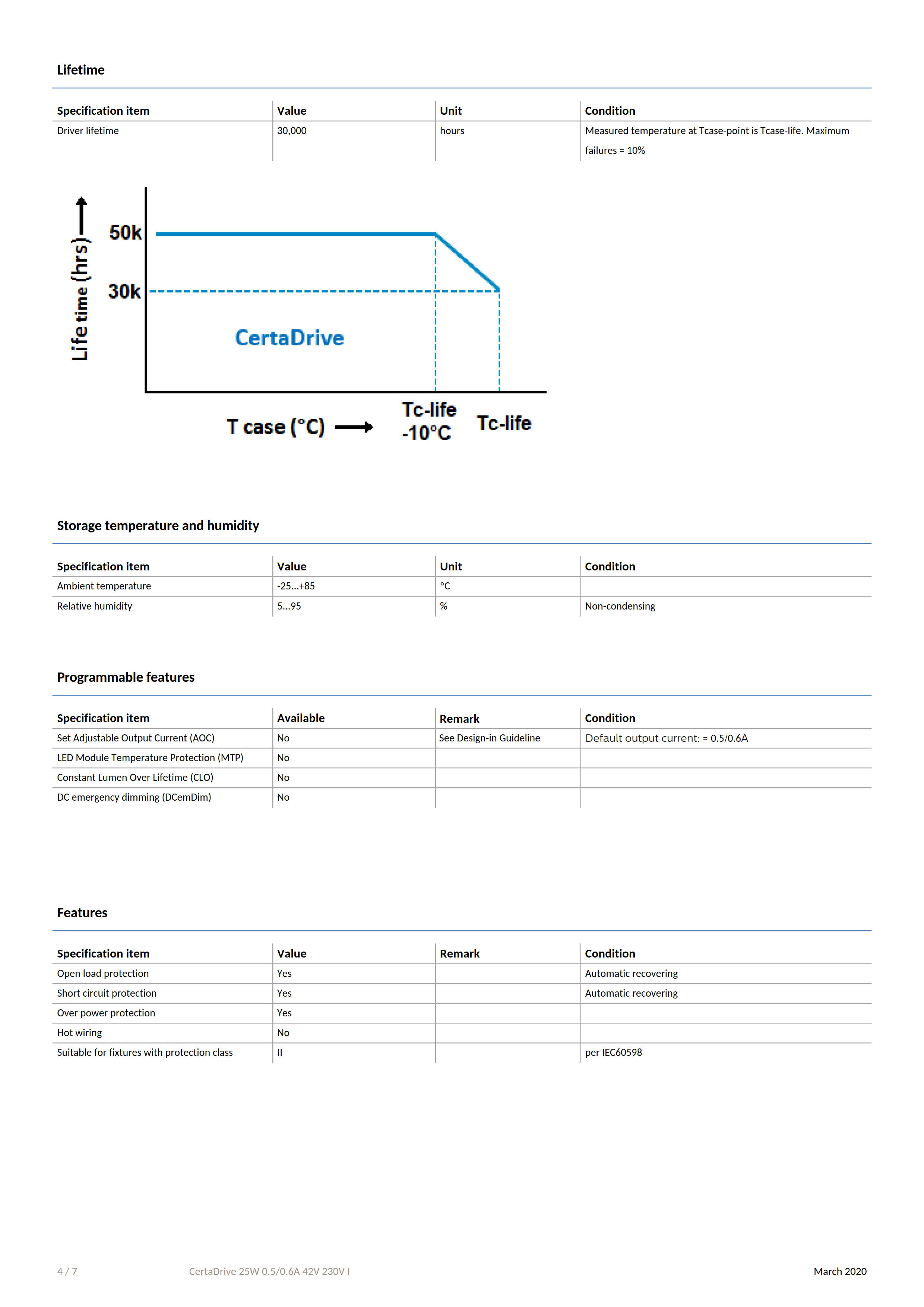

Driver lifetime: 50,000 hours
Control method: Fixed
PRODUCT DATA
Product date
Model name:PHILIPS CertaDrive 25W 0.5/0.6A 42V 230V I G3 929002804680
12NC:29002804680
Output voltage: 30 to 42 Vdc
Output current: 0.5 / 0.6 A
Output power: 15 to 25 W
Pieces per box: 40
Driver lifetime: 50,000 hours
Control method: Fixed

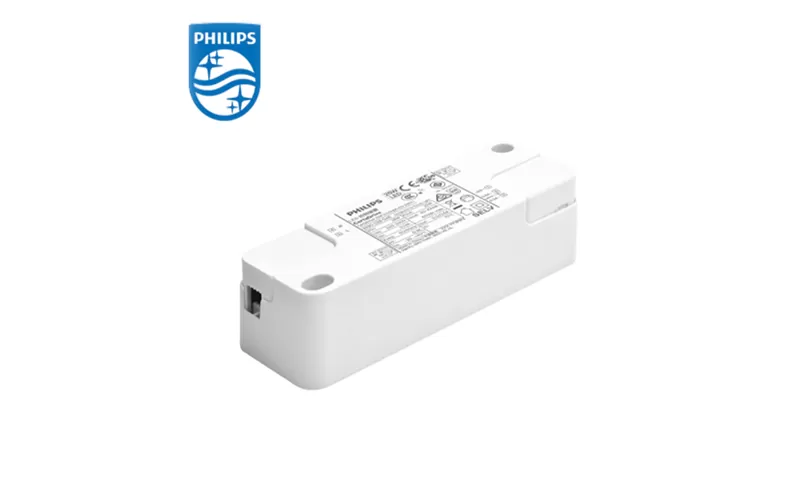

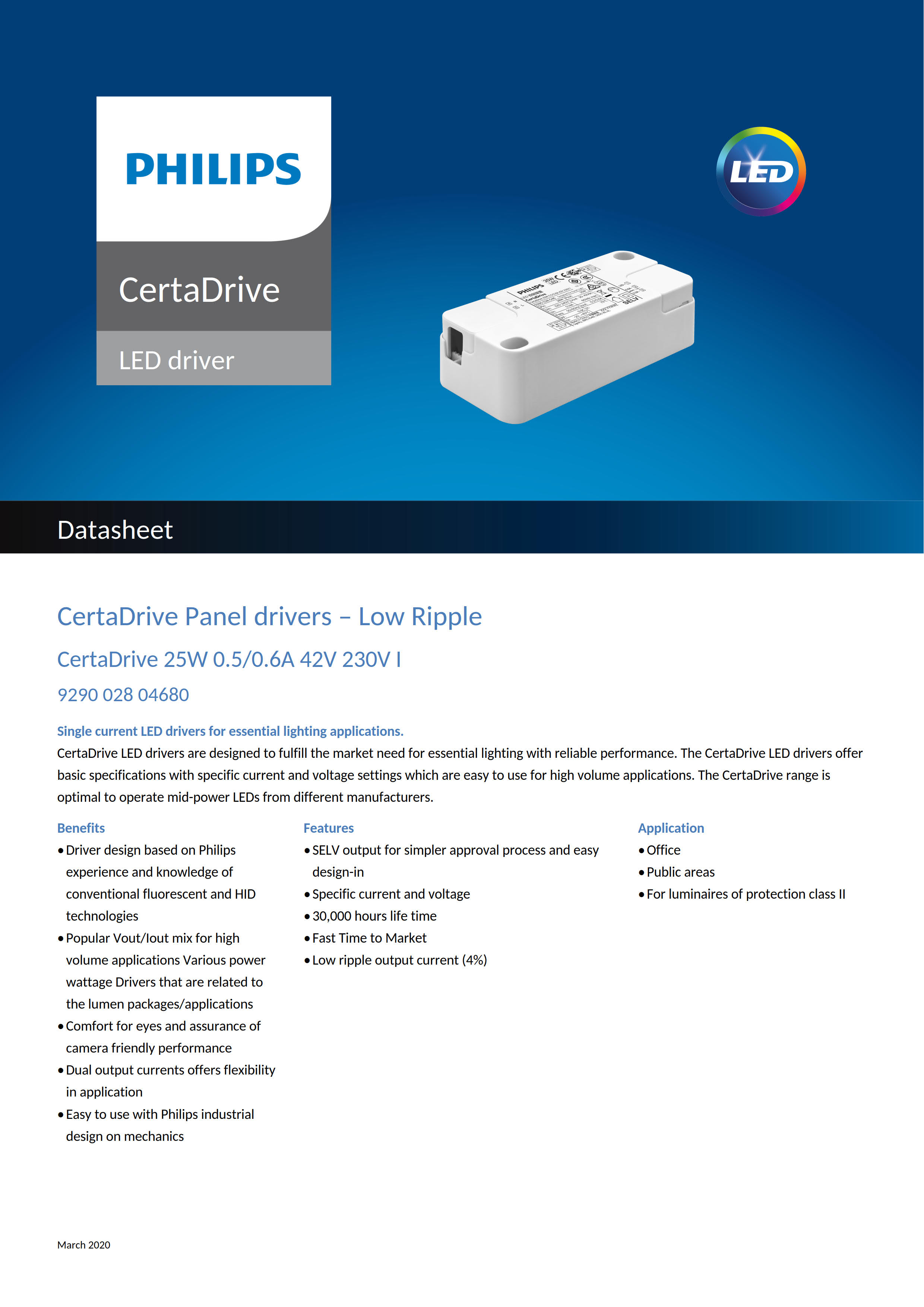

PHILIPS CertaDrive 25W 0.5/0.6A 42V 230V I G3 929002804680
Benefits
• Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies
• Popular Vout/Iout mix for high volume applications Various power wattage Drivers that are related to the lumen packages/applications
• Comfort for eyes and assurance of camera friendly performance
Features
• SELV output for simpler approval process and easy design-in
• Specific current and voltage
• 50,000 hours life time
• Fast Time to Market
Application
• Office
• Public areas
• For luminaires of protection class II
PHILIPS Product 12NC List
12NC List:
929002804680 CertaDrive 25W 0.5/0.6A 42V 230V I G3
929002804780 CertaDrive 34W 0.7/0.8A 42V 230V I G3
929002804880 CertaDrive 44W 0.9/1.05A 42V 230V I G3
