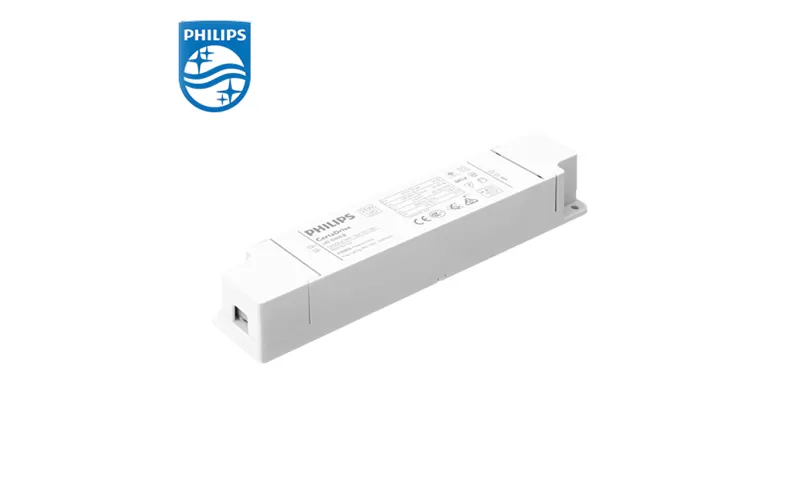

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

Product date

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

12NC:929001416180

Output voltage:32 to 42 Vdc

Output current: 0.8 A

Output power: 25.6 to 34 W

Pieces per box: 50

Driver lifetime: 30,000 hours

Control method: Fixed


PRODUCT DATA

Product date

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

12NC:929001416180

Output voltage:32 to 42 Vdc

Output current: 0.8 A

Output power: 25.6 to 34 W

Pieces per box: 50

Driver lifetime: 30,000 hours

Control method: Fixed

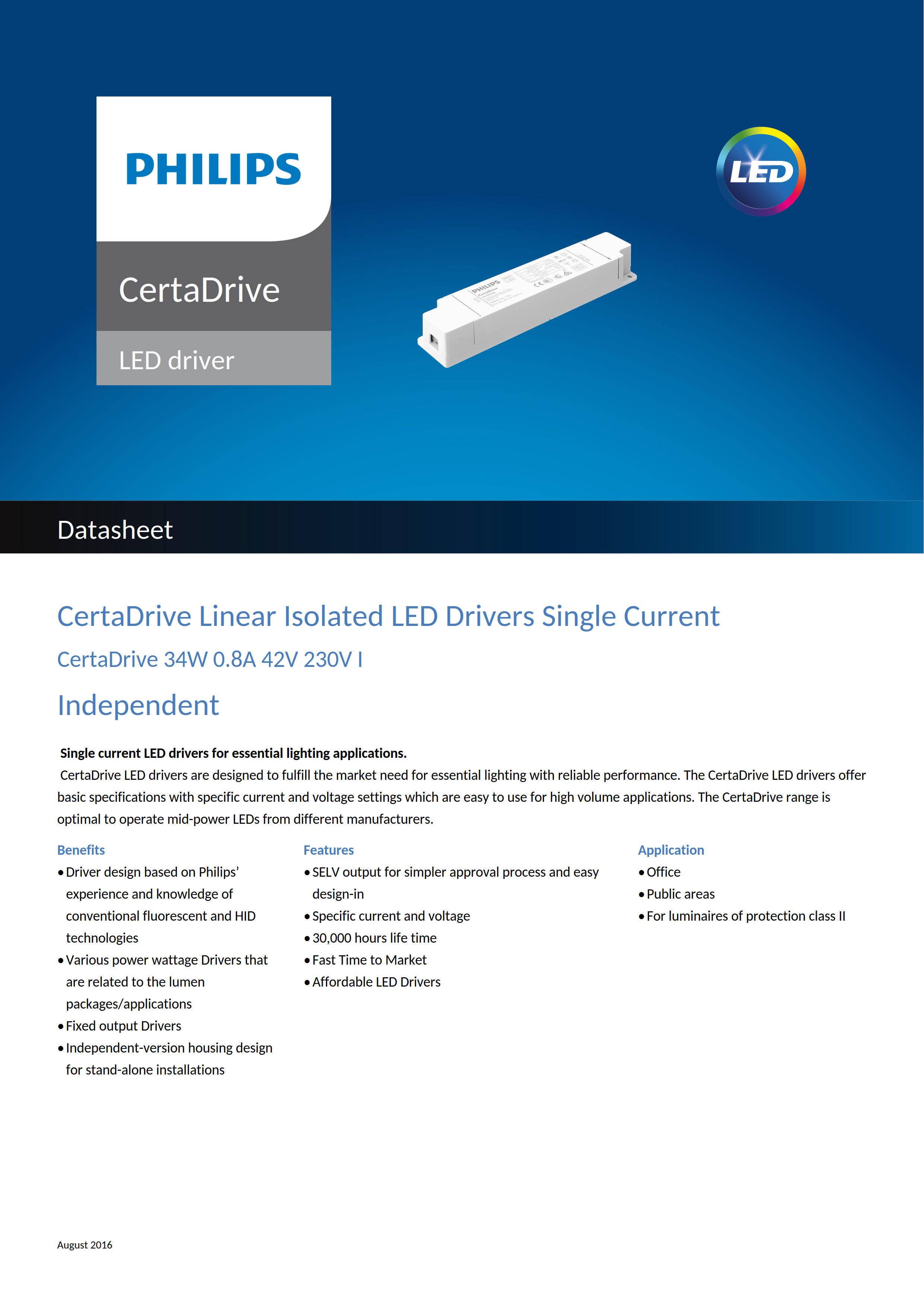

CertaDrive Linear Isolated LED Drivers Single Current Independent

CertaDrive 34W 0.8A 42V 230V I

Single current LED drivers for essential lighting applications.

CertaDrive LED drivers are designed to fulfill the market need for essential lighting with reliable performance. The CertaDrive LED drivers offer basic specifications with specific current and voltage settings which are easy to use for high volume applications. The CertaDrive range is optimal to operate mid-power LEDs from different manufacturers.


Benefits

•Driver design based on Philips’ experience and knowledge of conventional fluorescent and HID technologies

• Various power wattage Drivers that are related to the lumen packages/applications

• Fixed output Drivers

• Independent-version housing design for stand-alone installations


Features

• SELV output for simpler approval process and easy design-in

• Specific current and voltage

• 35,000 hours life time

• Fast Time to Market

• Affordable LED Drivers


Application

•Office

• Public areas

• For luminaires of protection class II

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180

PHILIPS CertaDrive 34W 0.8A 42V 230V I 929001416180


PHILIPS Product 12NC List

12NC List:

 929001416080 CertaDrive 30W 0.7A 42V 230V I

 929001416180 CertaDrive 34W 0.8A 42V 230V I

 929001416280 CertaDrive 38W 0.9A 42V 230V I

 929001416380 CertaDrive 44W 1.05A 42V 230V I

 929001416480 CertaDrive 34W 1.05A 32V 230V I
