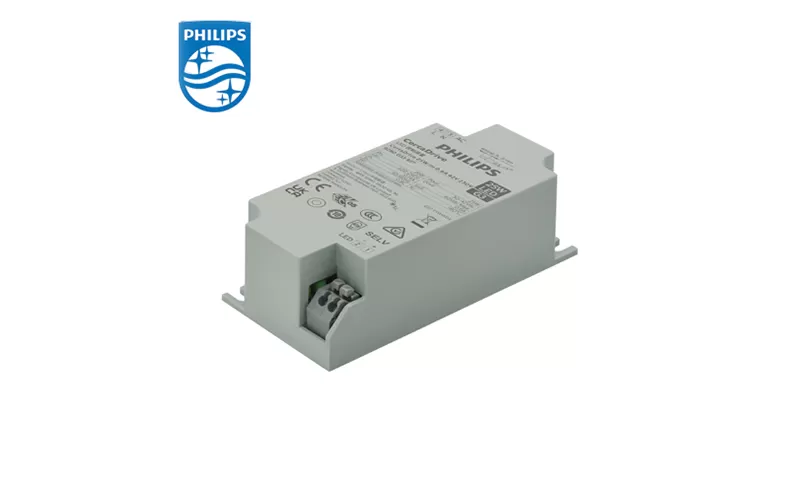

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

Product date

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

12NC:929003388180

Output voltage: 27 to 39 Vdc

Output current: 1.05 A

Output power: 28 to 41 W

Pieces per box: 40

Driver lifetime: 30,000 hours

Control method: Fixed


PRODUCT DATA

Product date

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

12NC:929003388180

Output voltage: 27 to 39 Vdc

Output current: 1.05 A

Output power: 28 to 41 W

Pieces per box: 40

Driver lifetime: 30,000 hours

Control method: Fixed

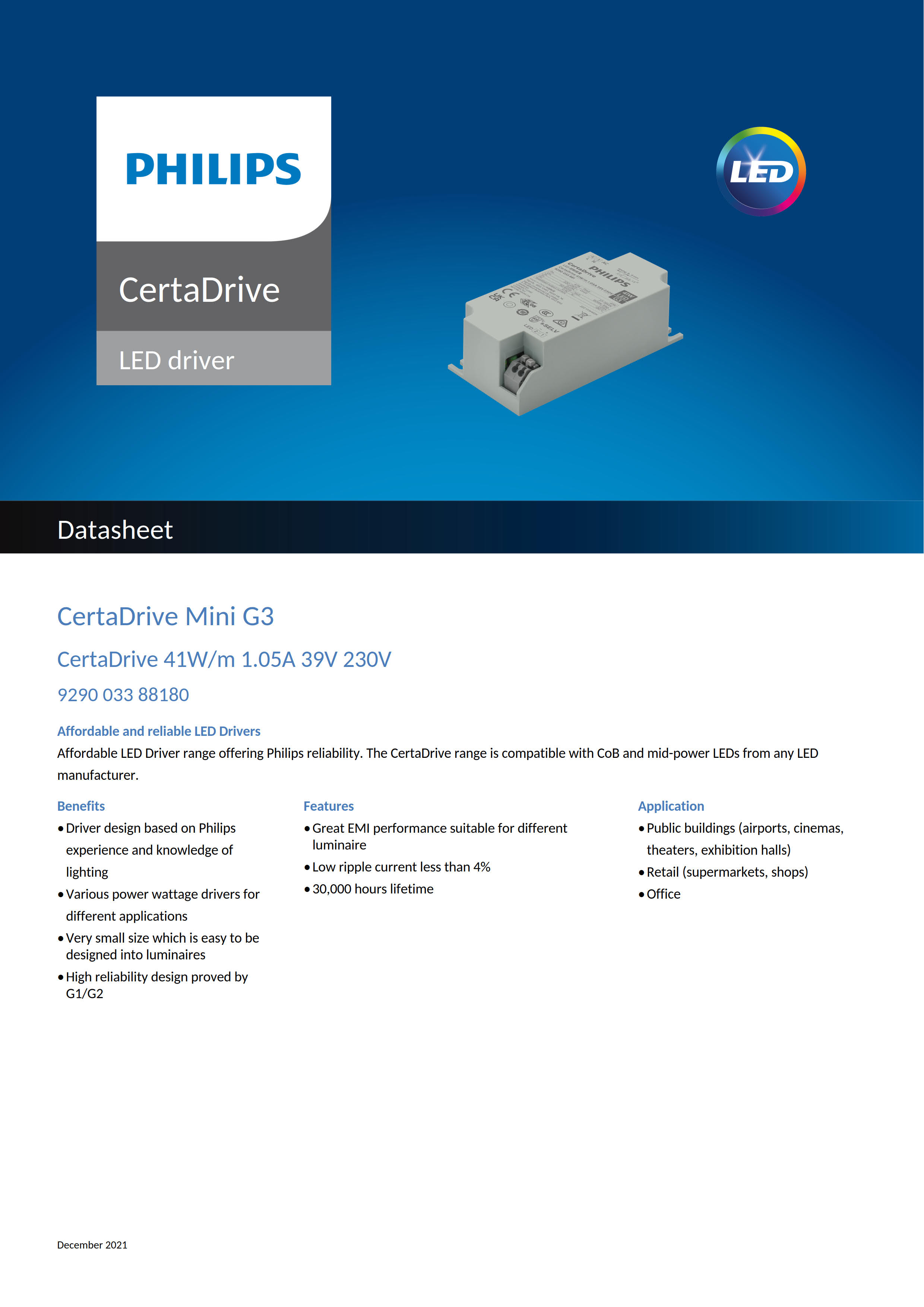

CertaDrive Mini G3

CertaDrive 41W/m 1.05A 39V 230V 9290 033 88180

Affordable and reliable LED Drivers Affordable LED Driver range offering Philips reliability. The CertaDrive range is compatible with CoB and mid-power LEDs from any LED manufacturer.

Benefits

• Driver design based on Philips experience and knowledge of lighting

• Various power wattage drivers for different applications

• Very small size which is easy to be designed into luminaires

•High reliability design proved by G1/G2


Features

•Great EMI performance suitable for different luminaire

• Low ripple current less than 4%

• 30,000 hours lifetime


Application

• Public buildings (airports, cinemas, theaters, exhibition halls…)

•Retail (supermarkets, shops)

•Office

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180

PHILIPS CertaDrive 41W/m 1.05A 39V 230V 929003388180


PHILIPS Product 12NC List

12NC List:

929003387680 CertaDrive 21W/m 0.5A 42V 230V

929003387780 CertaDrive 25W/m 0.6A 42V 230V

929003387880 CertaDrive 30W/m 0.7A 42V 230V

929003387980 CertaDrive 34W/m 0.8A 42V 230V

929003388080 CertaDrive 40W/m 0.9A 44V 230V

929003388180 CertaDrive 41W/m 1.05A 39V 230V
