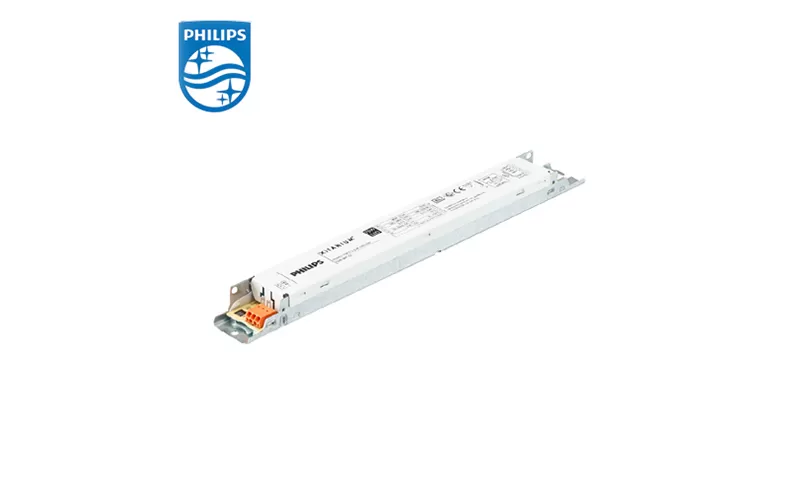

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

Product date

Model name:PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

12NC:929002141680

Output voltage: 23 to 51 Vdc

Output current: 1.2/1.4 A

Output power: 27.6 to 71.4 W

Pieces per box: 50

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

12NC:929002141680

Output voltage: 23 to 51 Vdc

Output current: 1.2/1.4 A

Output power: 27.6 to 71.4 W

Pieces per box: 50

Driver lifetime: 50,000 hours

Control method: Fixed

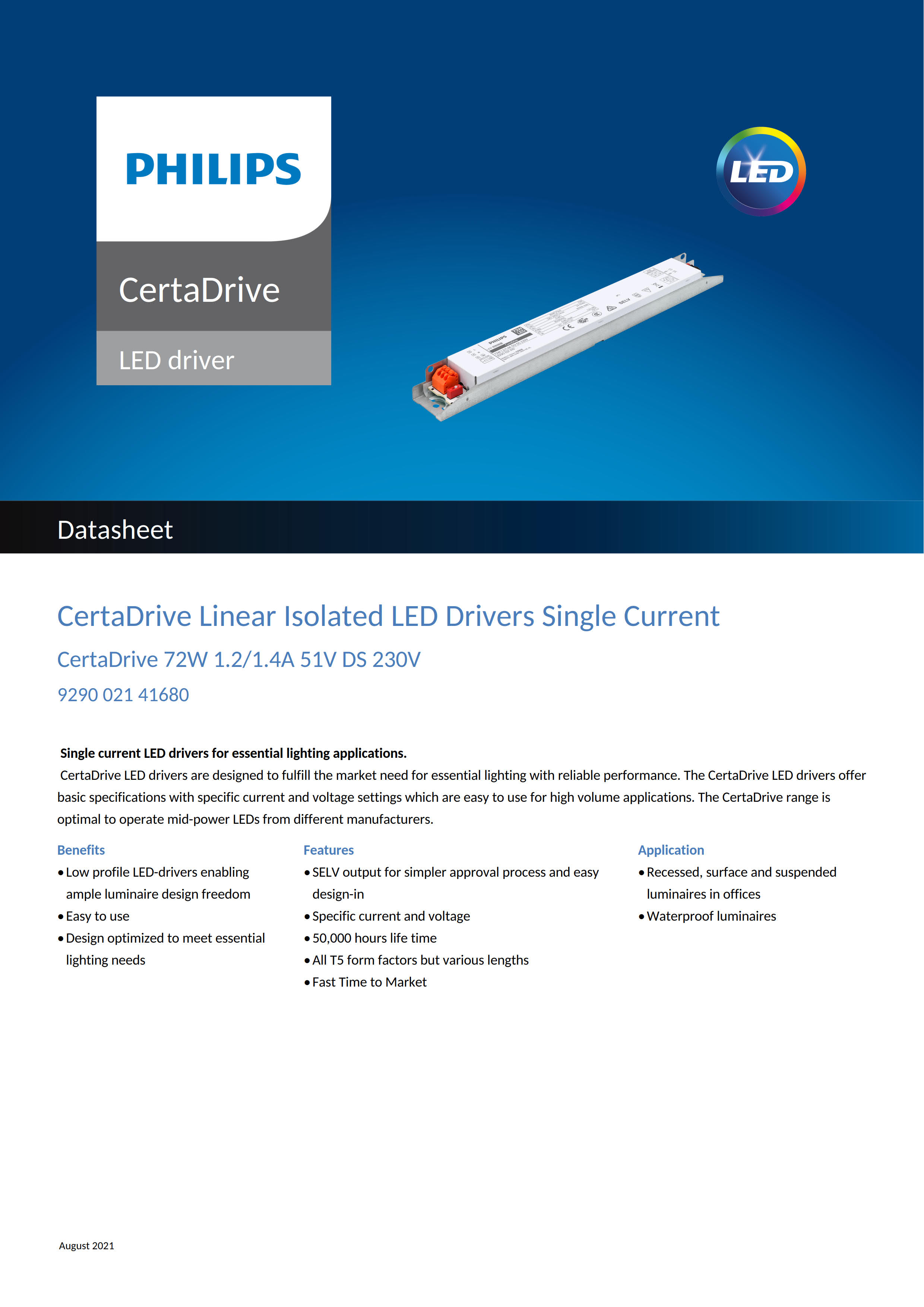

CertaDrive Linear Isolated LED Drivers Single Current CertaDrive 72W 1.2/1.4A 51V DS 230V 9290 021 41680


CertaDrive LED drivers are designed to fulfill the market need for essential lighting with reliable performance. The CertaDrive LED drivers offer basic specifications with specific current and voltage settings which are easy to use for high volume applications. The CertaDrive range is optimal to operate mid-power LEDs from different manufacturers.


Benefits

• Low profile LED-drivers enabling ample luminaire design freedom

• Easy to use

• Design optimized to meet essential lighting needs


Features

• SELV output for simpler approval process and easy design-in

• Specific current and voltage

• 50,000 hours life time

• All T5 form factors but various lengths

• Fast Time to Market


Application

• Recessed, surface and suspended luminaires in offices

• Waterproof luminaires

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680

PHILIPS CertaDrive 72W 1.2/1.4A 51V DS 230V 929002141680


PHILIPS Product 12NC List

12NC List:

929002141380 CertaDrive 41W 0.5-0.8A 51V DS 230V

929002141480 CertaDrive 54W 0.9/1.05A 51V DS 230V

929002141680 CertaDrive 72W 1.2/1.4A 51V DS 230V
