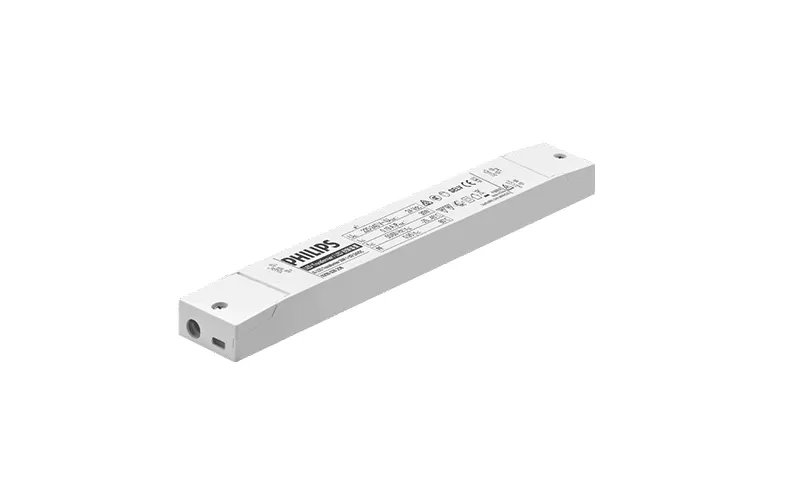

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

Product date

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

12NC:929002825980

Wattage:60W

Dim:1-10v

Hours:50k HOURS


PRODUCT DATA

Product date

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

12NC:929002825980

Wattage:60W

Dim:1-10v

Hours:50k HOURS


LED Transformers

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

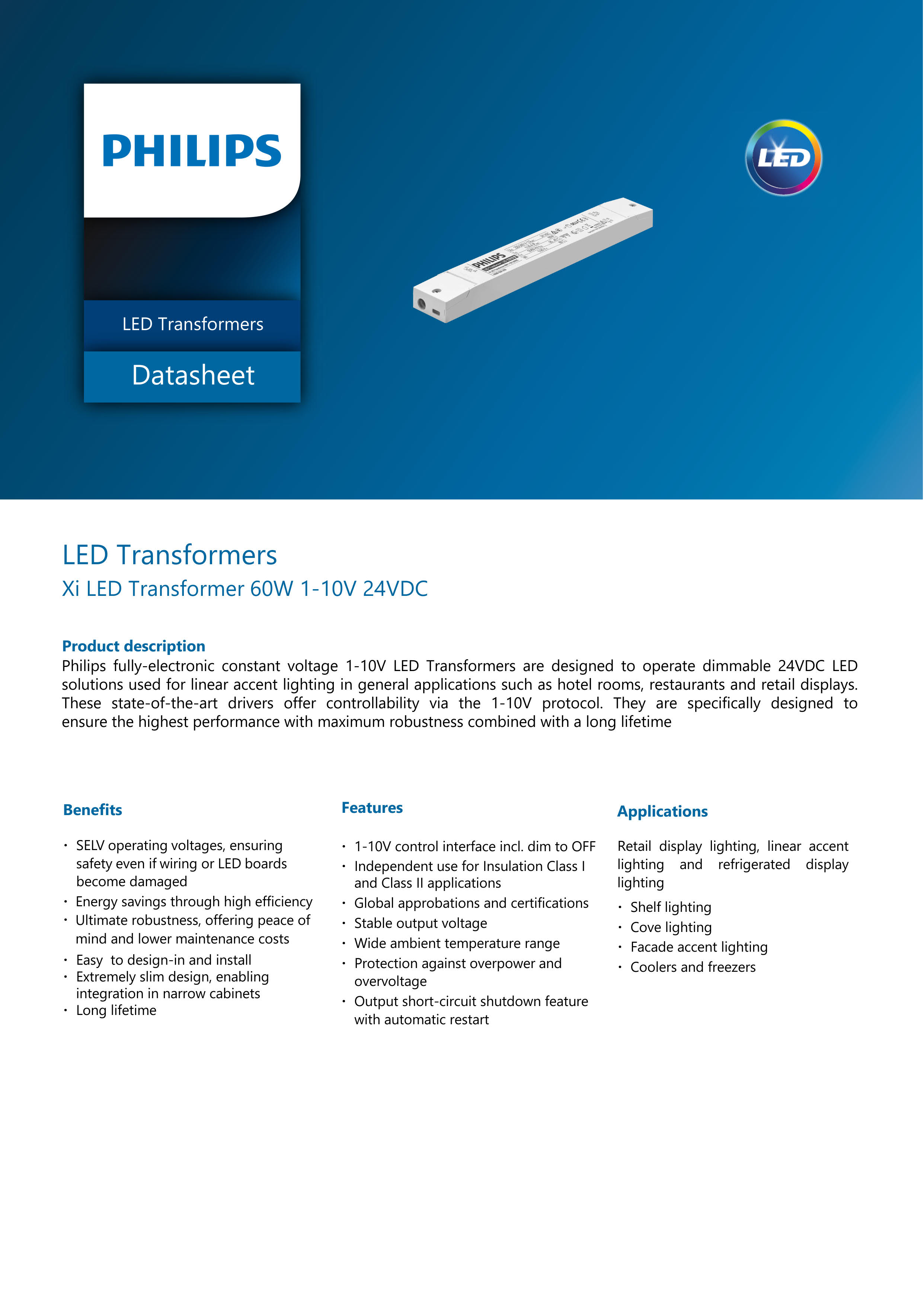

Product description Philips fully-electronic constant voltage 1-10V LED Transformers are designed to operate dimmable 24VDC LED solutions used for linear accent lighting in general applications such as hotel rooms, restaurants and retail displays. These state-of-the-art drivers offer controllability via the 1-10V protocol. They are specifically designed to ensure the highest performance with maximum robustness combined with a long lifetime

Benefits • SELV operating voltages, ensuring safety even if wiring or LED boards become damaged •

• Energy savings through high efficiency Ultimate robustness, offering peace of mind and lower maintenance costs

• Easy to design-in and install • Extremely slim design, enabling integration in narrow cabinets • Long lifetime

Features

• 1-10V control interface incl. dim to OFF

• Independent use for Insulation Class I and Class II applications

• Global approbations and certifications

• Stable output voltage • Wide ambient temperature range

• Protection against overpower and overvoltage

• Output short-circuit shutdown feature with automatic restart

Applications

Retail display lighting, linear accent lighting and refrigerated display lighting

• Shelf lighting

• Cove lighting

• Facade accent lighting

• Coolers and freezers

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980

PHILIPS Xi LED Transformer 60W 1-10V 24VDC 929002825980


PHILIPS Product 12NC List

12NC List:

9290 028 25880 Xi LED Transformer 30W 1-10V 24VDC

9290 028 25980 Xi LED Transformer 60W 1-10V 24VDC

9290 028 26080 Xi LED Transformer 100W 1-10V 24VDC

9290 028 26180 Xi LED Transformer 150W 1-10V 24VDC

9290 028 26280 Xi LED Transformer 250W 1-10V 24VDC
