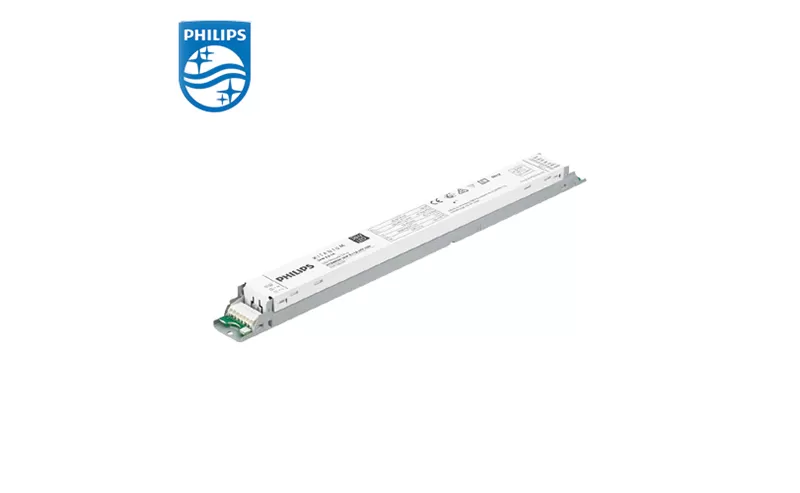

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

Product date

Model name:PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

12NC:929001613406

Output voltage: 50 to 220 Vdc

Output current: 0.25 to 0.7 A

Output power: 28 to 100 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

12NC:929001613406

Output voltage: 50 to 220 Vdc

Output current: 0.25 to 0.7 A

Output power: 28 to 100 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406


Benefits

•High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs


Features

•Up to 95% efficiency, lowest cost and smallest dimensions

• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver

• Reduced output ripple current and thermal de-rating for increased reliability

• Multiple versions - DALI dimmable & programmable, 1-10V dimmable, and fixed-output;

• All T5 form factors but various length


Application

• 17W, 35W, 36W, 60W and 75W LED drivers for office applications

• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406

PHILIPS Xitanium 100W 0.25-0.7A 220V 16 230V 929001613406


PHILIPS Product 12NC List

12NC List:

929001420180 Xitanium 59W 1.2/1.4A 42V 230V

929001425380 Xitanium 25W 0.5/0.6A 42V 13 230V

929001425480 Xitanium 44W 0.9/1.05A 42V 13 230V

929001613406 Xitanium 100W 0.25-0.7A 220V 16 230V
