Product date
Model name:PHILIPS Xitanium 20W/a 0.35/0.5A 40V 3CW 230V 929001475780
12NC:929001475780
Output voltage: 30 to 40 Vdc
Output current: 0.35 /0.5 A
Output power: 15 to 20 W
Pieces per box: 40
Driver lifetime: 50,000 hours
Control method: Fixed
PRODUCT DATA
Product date
Model name:PHILIPS Xitanium 20W/a 0.35/0.5A 40V 3CW 230V 929001475780
12NC:929001475780
Output voltage: 30 to 40 Vdc
Output current: 0.35 /0.5 A
Output power: 15 to 20 W
Pieces per box: 40
Driver lifetime: 50,000 hours
Control method: Fixed

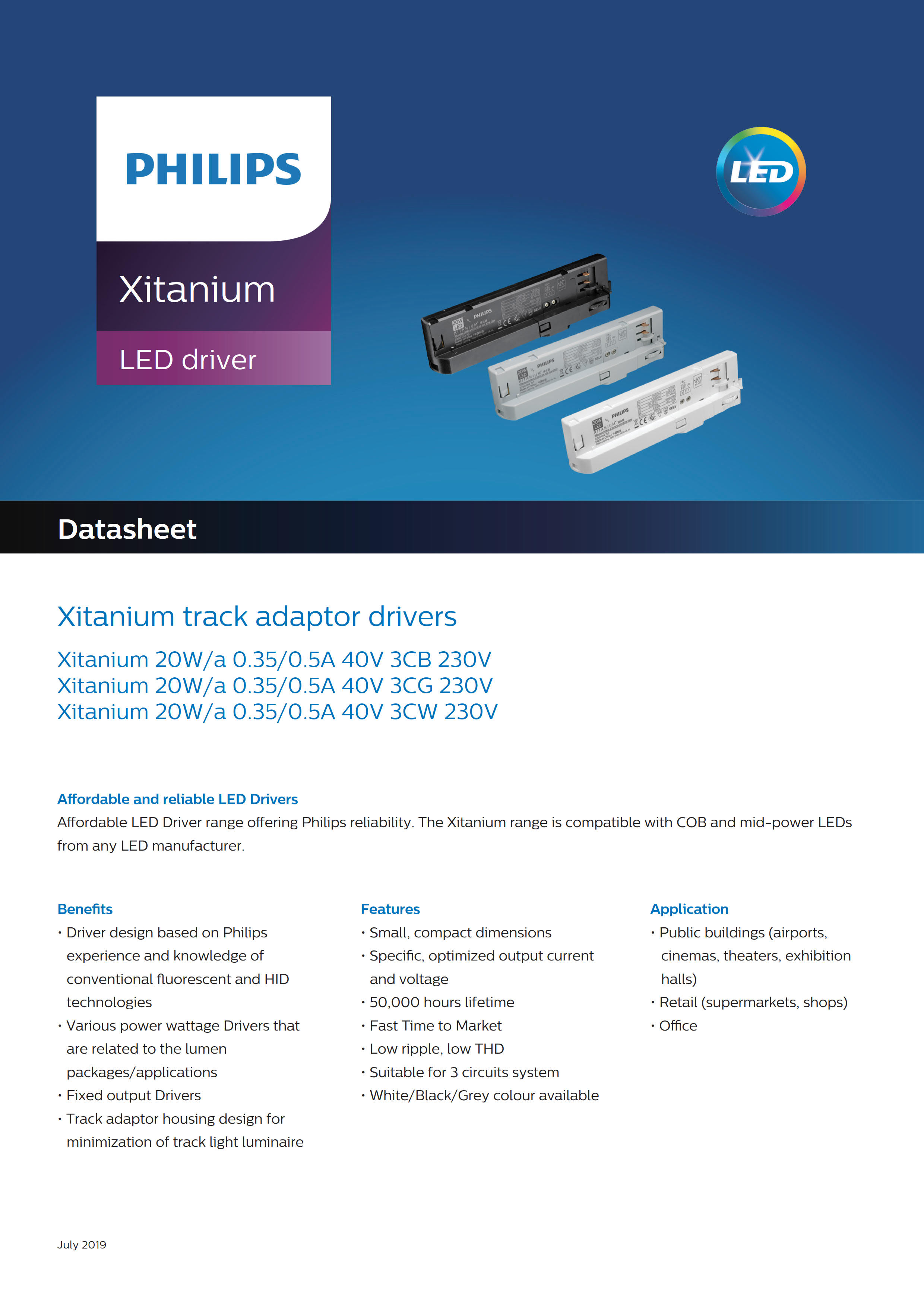

Xitanium track adaptor drivers (3C)

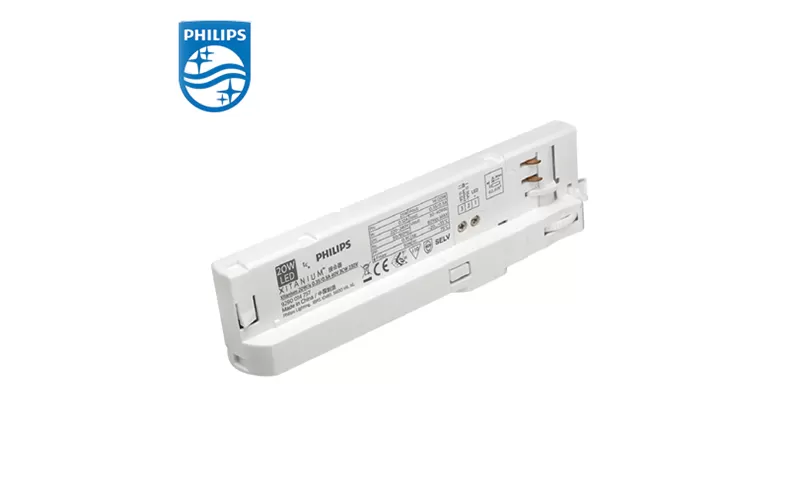

PHILIPS Xitanium 20W/a 0.35/0.5A 40V 3CW 230V 929001475780
Affordable and reliable LED Drivers Affordable LED driver range offering Philips reliability.
The Xitanium track driver range is compatible with COB and mid-power LEDs from any LED manufacturer.
Benefits
•Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies
• Various power ratings matching common lumen packages/applications
• Track adaptor housing design for compact track luminaire designs
Features
•Compact size
• Specific, optimized dual-output current choice
• Long lifetime
• Low output current ripple, low input current THD
• Suitable for 3-phase track systems
•Available in white, black and grey housing color
Application
• Public buildings (airports, cinemas, theaters, exhibition halls) •Retail (supermarkets, shops)
•Offices
PHILIPS Product 12NC List
12NC List:
929001475606 Xitanium 10W/a 0.2/0.25A 40V 3CW 230V
929001475706 Xitanium 20W/a 0.35/0.5A 40V 3CW 230V
929001475806 Xitanium 32W/a 0.7/0.8A 40V 3CW 230V
929001475906 Xitanium 42W/a 0.9/1.05A 40V 3CW 230V
929001476006 Xitanium 10W/a 0.2/0.25A 40V 3CB 230V
929001476106 Xitanium 20W/a 0.35/0.5A 40V 3CB 230V
929001476206 Xitanium 32W/a 0.7/0.8A 40V 3CB 230V
929001476306 Xitanium 42W/a 0.9/1.05A 40V 3CB 230V
929001476406 Xitanium 10W/a 0.2/0.25A 40V 3CG 230V
929001476506 Xitanium 20W/a 0.35/0.5A 40V 3CG 230V
929001476606 Xitanium 32W/a 0.7/0.8A 40V 3CG 230V
929001476706 Xitanium 42W/a 0.9/1.05A 40V 3CG 230V
