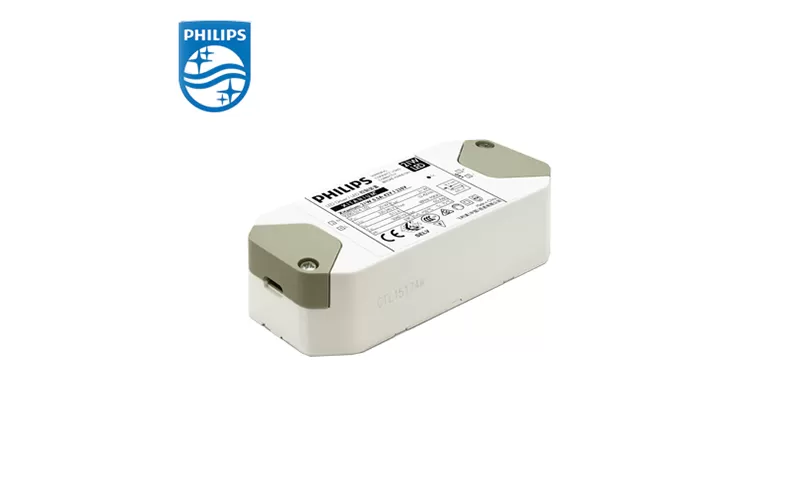

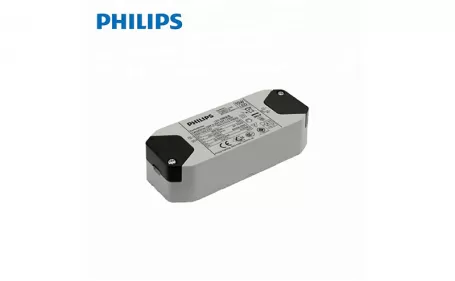

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

Product date

Model name:PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

12NC:929001410280

Output voltage: 32 to 42 Vdc

Output current: 0.5 A

Output power: 16 to 21 W

Pieces per box: 40

Driver lifetime: 50,000 hours

Control method: Fixed



PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

12NC:929001410280

Output voltage: 32 to 42 Vdc

Output current: 0.5 A

Output power: 16 to 21 W

Pieces per box: 40

Driver lifetime: 50,000 hours

Control method: Fixed


Lumiblade OLED Driver-Low Voltage

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

This driver detects the power and voltage needs of the attached OLED and drives the attached OLED Panel accordingly. This one-driver-fits-all-panels approach eases the life of the customers and makes this driver also compatible for future developments.


Benefits

• Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies

• Various power wattage Drivers that are related to the lumen packages/applications

• Fixed output Drivers

• Independent-version housing design for stand-alone installation


Features

• Small, compact dimensions

• Specific, optimized output current and voltage

• 50,000 hours lifetime

• Fast Time to Market

• Low ripple, low THD


Application

• Public buildings (airports, cinemas, theaters, exhibition halls)

• Retail (supermarkets, shops)

• Office

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280

PHILIPS Xitanium 21W 0.5A 42V I 230V 929001410280


PHILIPS Product 12NC List

12NC List:

929001410180 Xitanium 15W 0.35A 42V I 230V

929001410280 Xitanium 21W 0.5A 42V I 230V

929001418280 Xitanium 27W 0.6/0.65A 42V I 230V  G2

929001418380 Xitanium 32W 0.7/0.75A  42V I 230V  G2

929001418580 Xitanium 36W 0.8/0.85A 42V I 230V G2

929001419380 Xitanium 40W 0.9/0.95A 42V I 230V G2

929001418680 Xitanium 44W 1.0A/1.05A 42V I 230V G2

929001418480 Xitanium 34W 0.9/1.05A 32V I 230V G2

929001423380  Xitanium 50W 1.1/1.2A 42V I 230V

929001423480  Xitanium 59W 1.3/1.4A 42V I 230V

929001423580  Xitanium 64W 1.5/1.6A 40V I 230V
