PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

Product date

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

12NC:929001418706

Output voltage: 31 to 46 Vdc

Output current: 0.6 A

Output power: 18.6 to 28 W

Pieces per box: 20

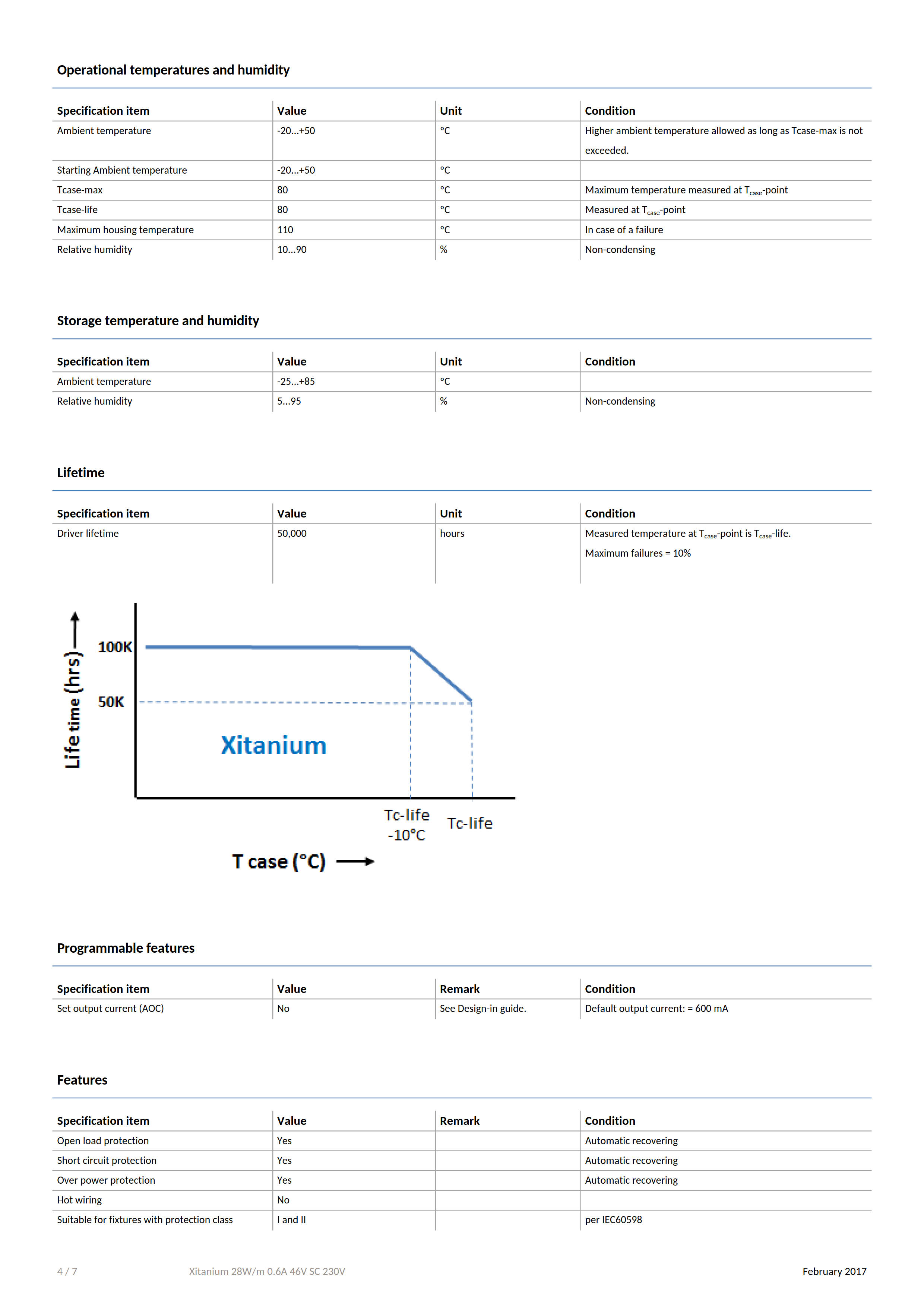

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

12NC:929001418706

Output voltage: 31 to 46 Vdc

Output current: 0.6 A

Output power: 18.6 to 28 W

Pieces per box: 20

Driver lifetime: 50,000 hours

Control method: Fixed

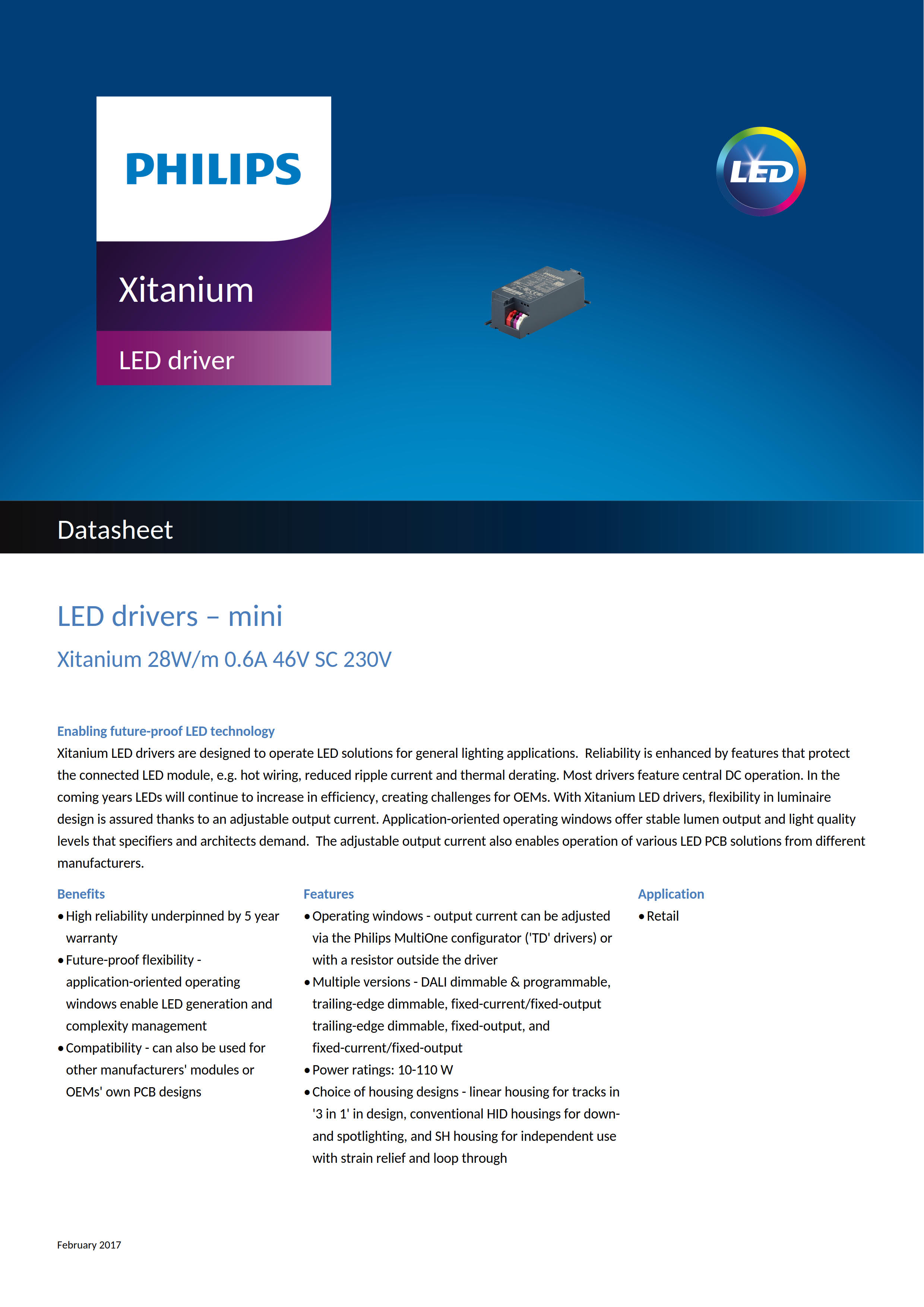

LED drivers – mini Xitanium 28W/m 0.6A 46V SC 230V 929001418706

Enabling future-proof LED technology Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.


Benefits

•High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

•Compatibility - can also be used for other manufacturers' modules or OEMs' own PCB designs


Features

•Operating windows - output current can be adjusted via the Philips MultiOne configurator ('TD' drivers) or with a resistor outside the driver

• Multiple versions - DALI dimmable & programmable, trailing-edge dimmable, fixed-current/fixed-output trailing-edge dimmable, fixed-output, and fixed-current/fixed-output

• Power ratings: 10-110 W

•Choice of housing designs


Application

•Retail

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706

PHILIPS Xitanium 28W/m 0.6A 46V SC 230V 929001418706


PHILIPS Product 12NC List

12NC List:

 929001412280 Xitanium 10W/m 0.35A 30V SC 230V

 929001412380 Xitanium 16W/m 0.35A 46V SC 230V

 929001412480  Xitanium 23W/m 0.5A 46V SC 230V

 929001412580  Xitanium 21W/m 0.7A 30V SC 230V

 929001418706 Xitanium 28W/m 0.6A 46V SC 230V

 929001412680 Xitanium 32W/m 0.7A 46V SC 230V

 929001418806  Xitanium 34W/m 0.8A 42V SC 230V

 929001418906  Xitanium 38W/m 0.9A 42V SC 230V

 929001572806 Xitanium 48W/m 1.05A 46V SC 230V
