PHILIPS Xitanium 32W/a 0.7/0.8A 40V 3CG 230V 929001476606

Product date

Model name:PHILIPS Xitanium 32W/a 0.7/0.8A 40V 3CG 230V 929001476606

12NC:929001476606

Output voltage: 30 to 40 Vdc

Output current: 0.7 / 0.8 A

Output power: 21 to 32 W

Pieces per box: 40

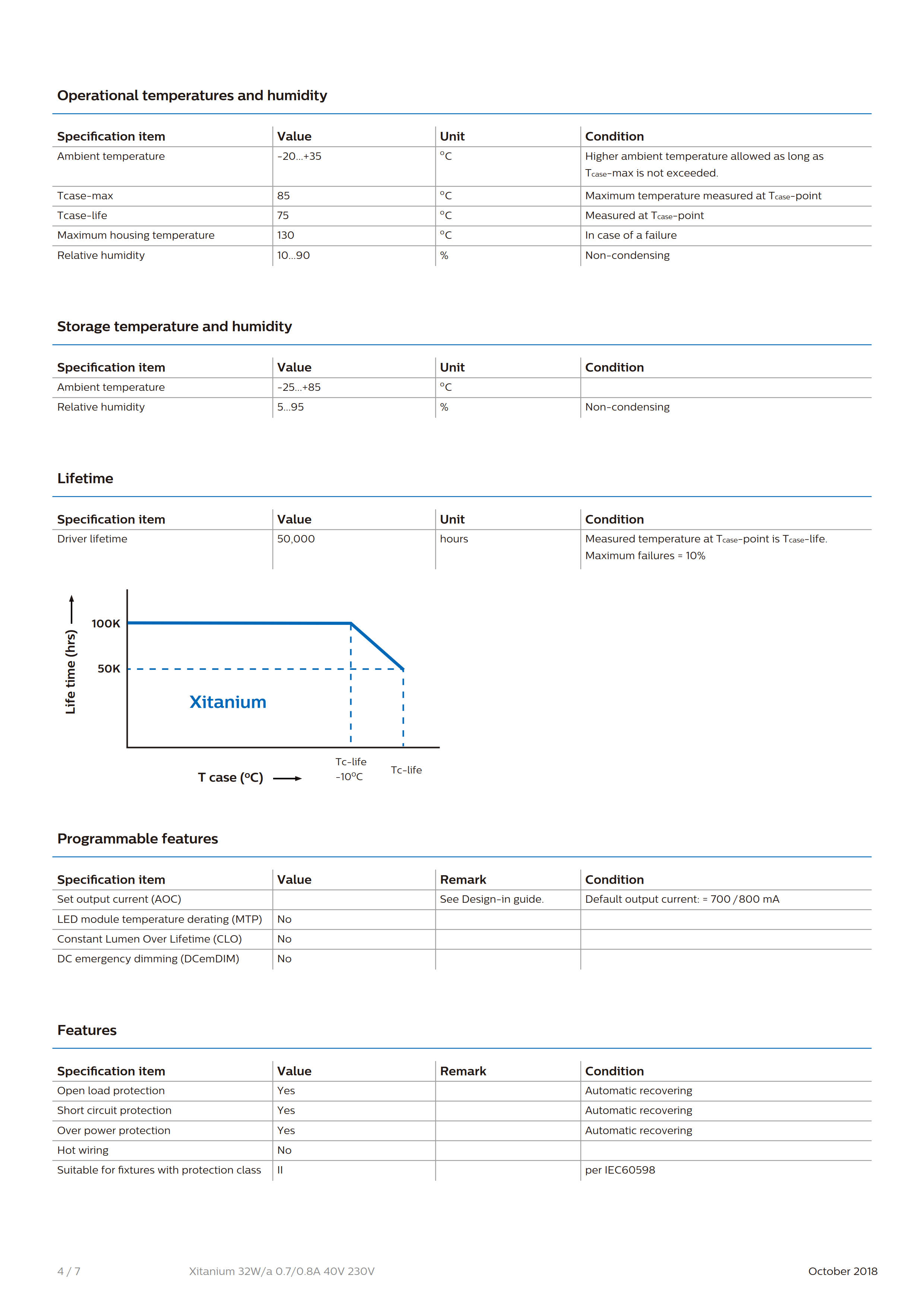

Driver lifetime: 50,000 hours

Control method: Fixed

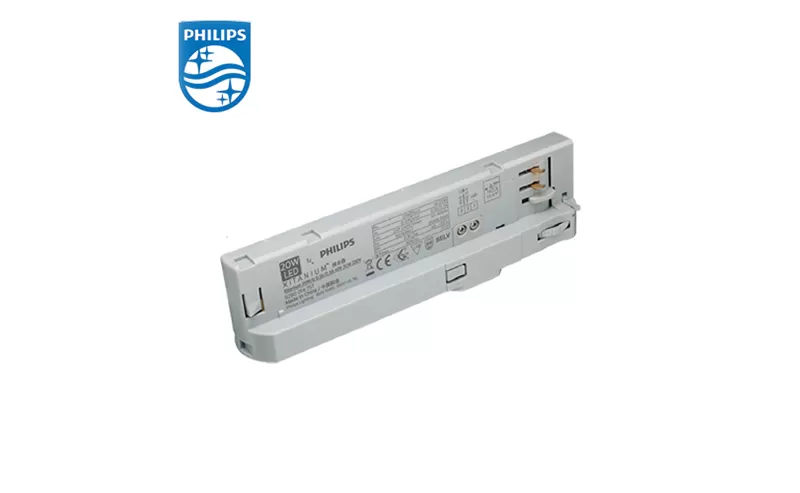

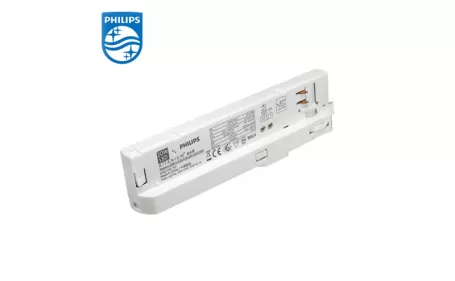

Xitanium track adaptor drivers (3C)

PHILIPS Xitanium 32W/a 0.7/0.8A 40V 3CG 230V 929001476606

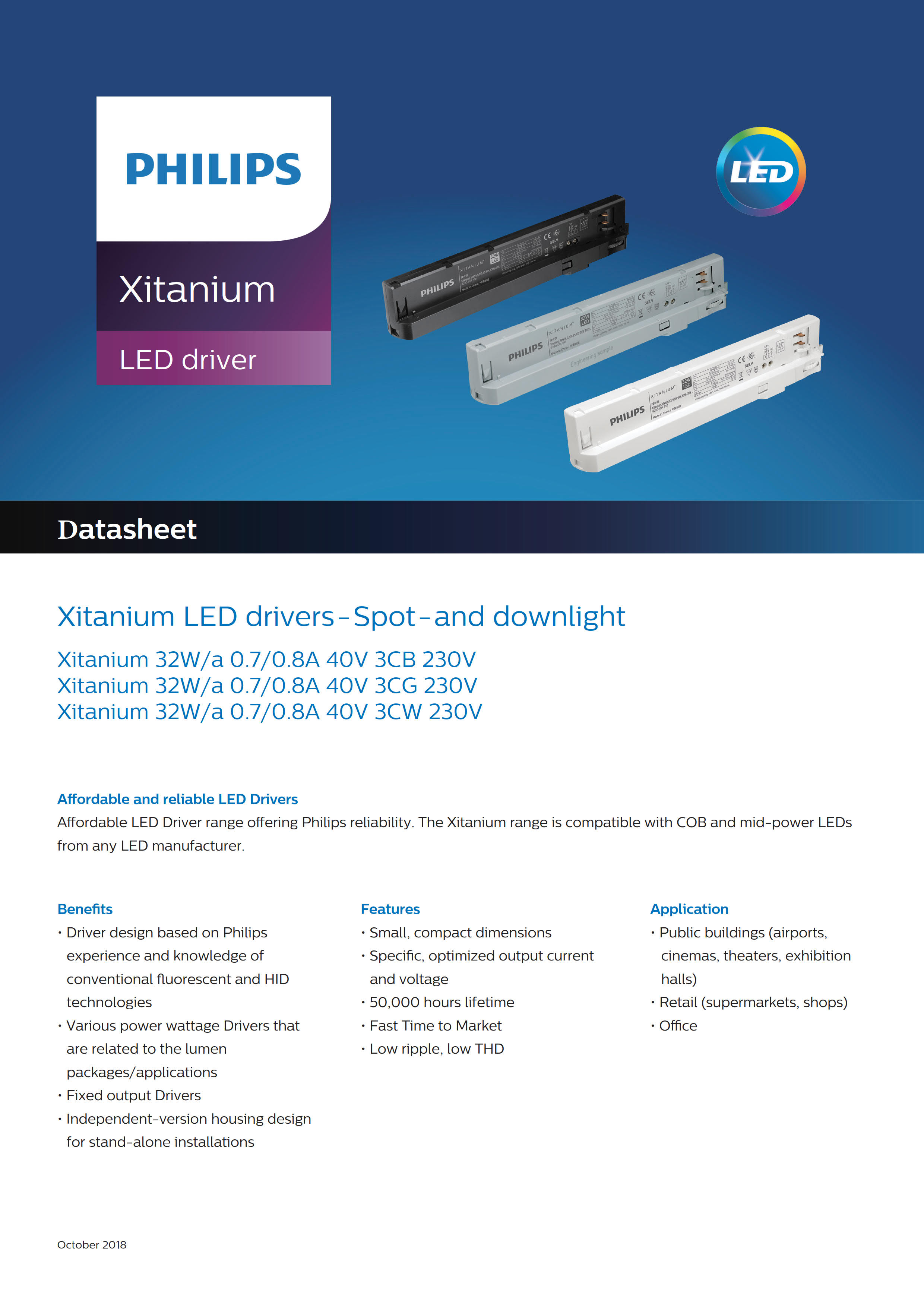

Affordable and reliable LED Drivers Affordable LED driver range offering Philips reliability.

The Xitanium track driver range is compatible with COB and mid-power LEDs from any LED manufacturer.

Benefits

•Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies

• Various power ratings matching common lumen packages/applications

• Track adaptor housing design for compact track luminaire designs

Features

•Compact size

• Specific, optimized dual-output current choice

• Long lifetime

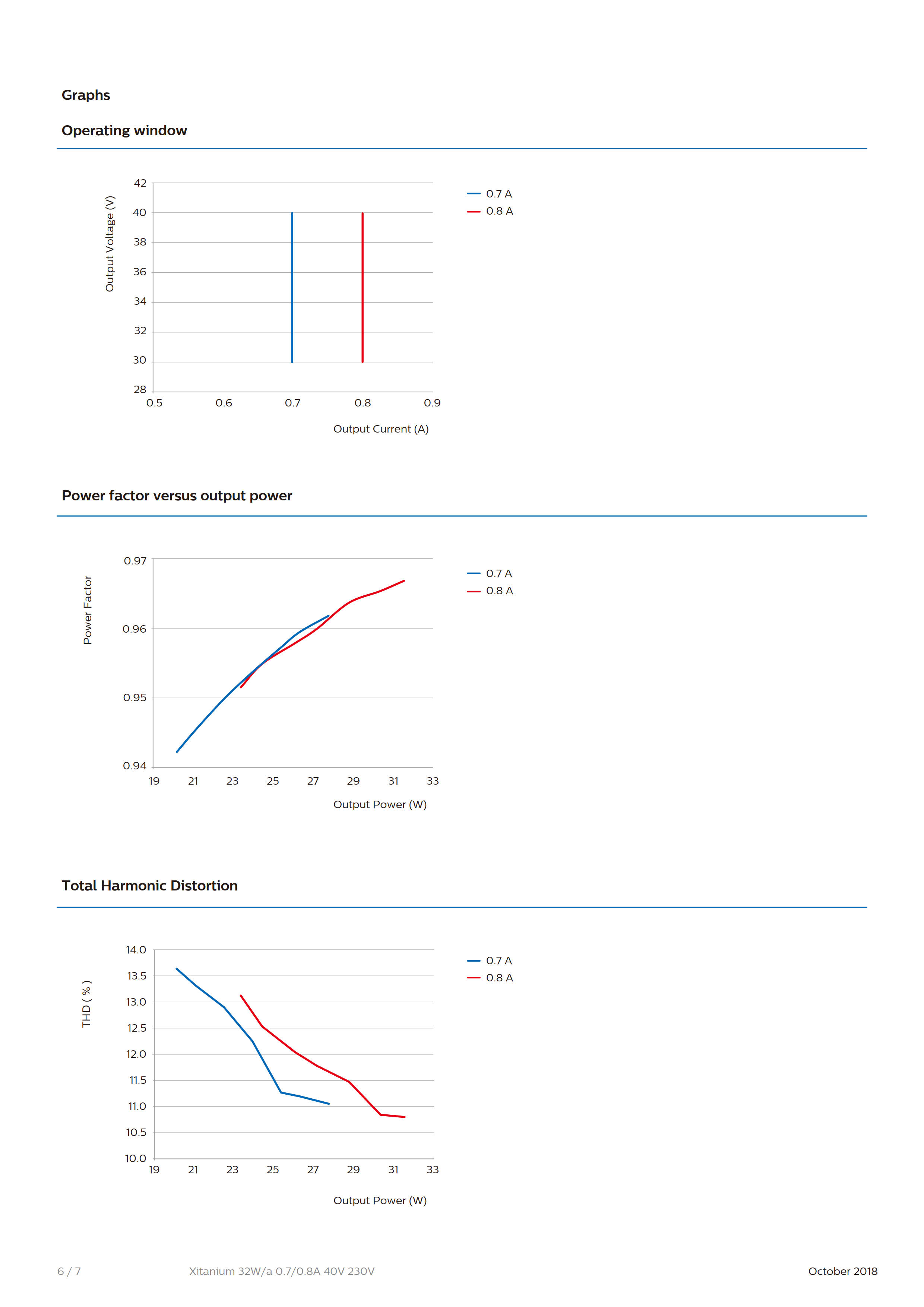

• Low output current ripple, low input current THD

• Suitable for 3-phase track systems

•Available in white, black and grey housing color

Application

• Public buildings (airports, cinemas, theaters, exhibition halls) •Retail (supermarkets, shops)

•Offices

12NC List:

929001475606 Xitanium 10W/a 0.2/0.25A 40V 3CW 230V

929001475706 Xitanium 20W/a 0.35/0.5A 40V 3CW 230V

929001475806 Xitanium 32W/a 0.7/0.8A 40V 3CW 230V

929001475906 Xitanium 42W/a 0.9/1.05A 40V 3CW 230V

929001476006 Xitanium 10W/a 0.2/0.25A 40V 3CB 230V

929001476106 Xitanium 20W/a 0.35/0.5A 40V 3CB 230V

929001476206 Xitanium 32W/a 0.7/0.8A 40V 3CB 230V

929001476306 Xitanium 42W/a 0.9/1.05A 40V 3CB 230V

929001476406 Xitanium 10W/a 0.2/0.25A 40V 3CG 230V

929001476506 Xitanium 20W/a 0.35/0.5A 40V 3CG 230V

929001476606 Xitanium 32W/a 0.7/0.8A 40V 3CG 230V

929001476706 Xitanium 42W/a 0.9/1.05A 40V 3CG 230V
