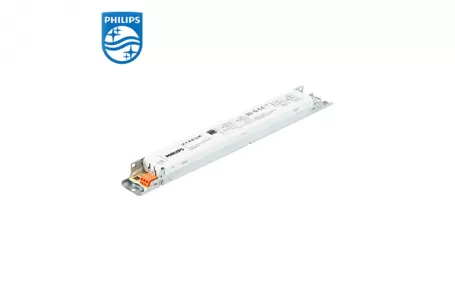

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

Product date

Model name:PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

12NC:929001486380

Output voltage: 30 to 42 Vdc

Output current: 0.8 A

Output power: 24 to 34 W

Pieces per box: 50

Driver lifetime: 50,000 hours

Control method: 1-10V


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

12NC:929001486380

Output voltage: 30 to 42 Vdc

Output current: 0.8 A

Output power: 24 to 34 W

Pieces per box: 50

Driver lifetime: 50,000 hours

Control method: 1-10V

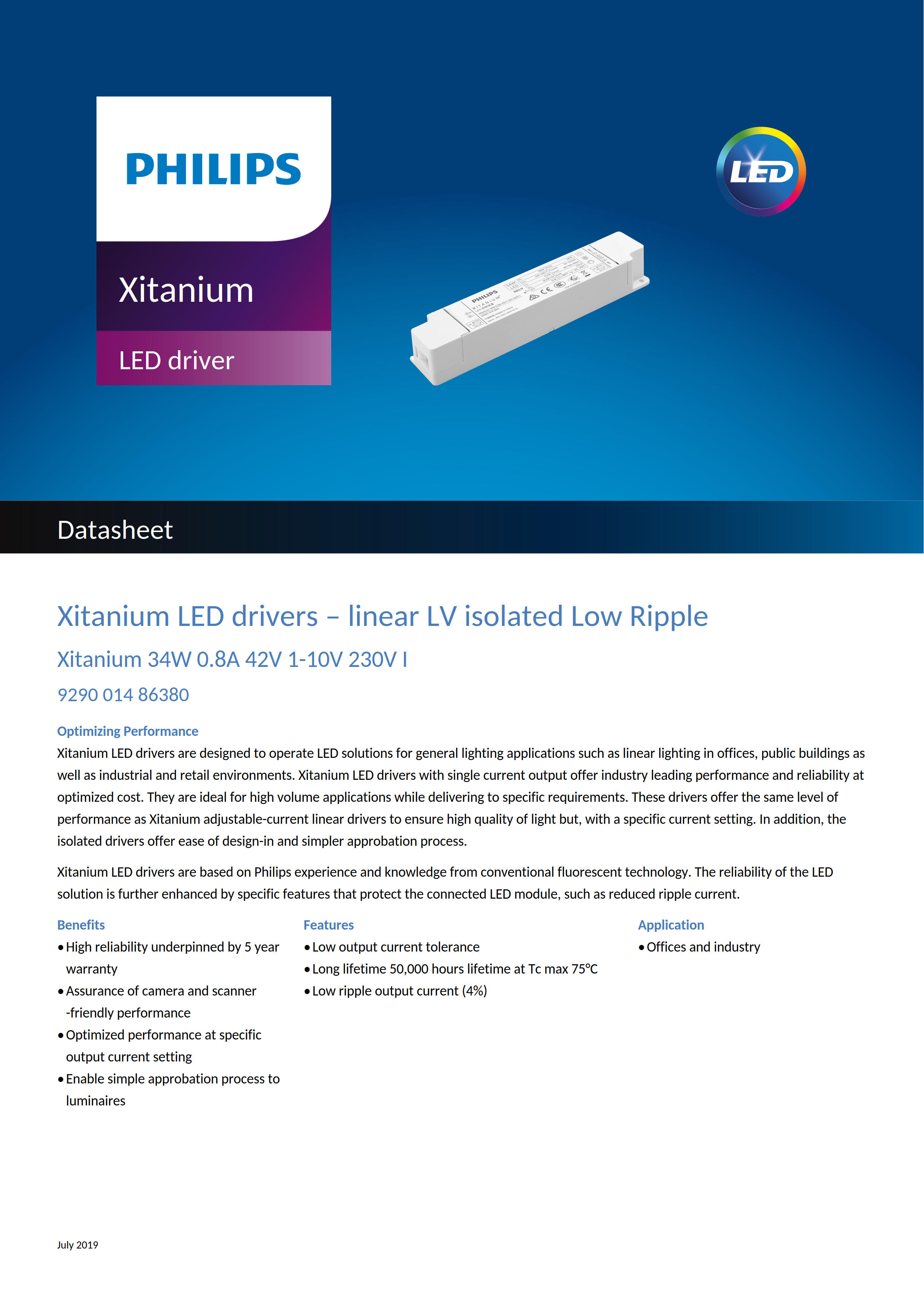

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380


Xitanium LED drivers are based on Philips experience and knowledge from conventional fluorescent technology. The reliability of the LED solution is further enhanced by specific features that protect the connected LED module, such as reduced ripple current.


Benefits

• High reliability underpinned by 5 year warranty

• Assurance of camera and scanner -friendly performance

• Optimized performance at specific output current setting

• Enable simple approbation process to luminaires


Features

• Low output current tolerance

• Long lifetime 50,000 hours lifetime

• Low ripple output current (4%)


Application

•Offices and industry

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380

PHILIPS Xitanium 34W 0.8A 42V 1-10V 230V I 929001486380


PHILIPS Product 12NC List

12NC List:

929001499680 Xitanium 8W 0.2A 42V 1-10V 230V I

929001499780 Xitanium 15W 0.35A 42V 1-10V 230V I

929001499880 Xitanium 21W 0.5A 42V 1-10V 230V I

929001486280 Xitanium 30W 0.7A 42V 1-10V 230V I

929001486380 Xitanium 34W 0.8A 42V 1-10V 230V I

929001486480 Xitanium 38W 0.9A 42V 1-10V 230V I

929001486580 Xitanium 44W 1.05A 42V 1-10V 230V I
