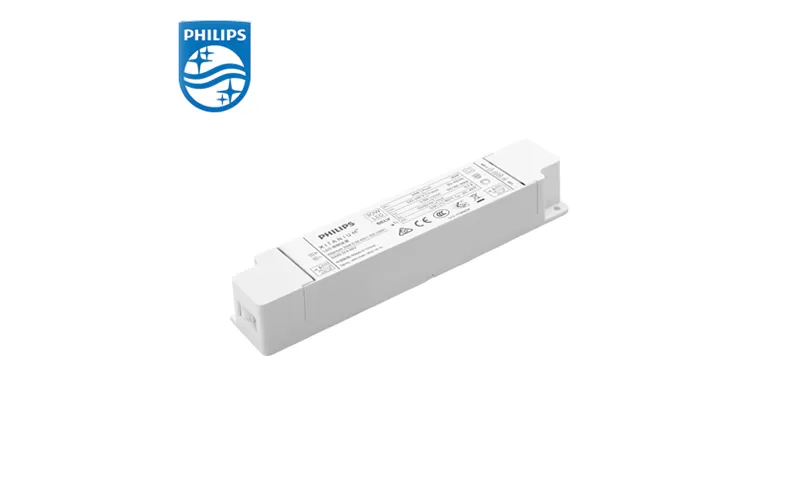

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

Product date

Model name:PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

12NC:929002171180

Output voltage: 30 to 42 Vdc

Output current: 0.8 A

Output power: 24 to 33.6 W

Pieces per box: 60

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

12NC:929002171180

Output voltage: 30 to 42 Vdc

Output current: 0.8 A

Output power: 24 to 33.6 W

Pieces per box: 60

Driver lifetime: 50,000 hours

Control method: Fixed


PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180


Xitanium LED drivers are based on Philips experience and knowledge from conventional fluorescent technology. The reliability of the LED solution is further enhanced by specific features that protect the connected LED module, such as reduced ripple current.


Benefits

• High reliability underpinned by 5 year warranty

• Assurance of camera and scanner -friendly performance

• Optimized performance at specific output current setting

• Enable simple approbation process to luminaires


Features

• Low output current tolerance

• Long lifetime 50,000 hours lifetime

• Low ripple output current (4%)


Application

•Offices and industry

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180

PHILIPS Xitanium 34W LT 0.8A 42V 230V I 929002171180


PHILIPS Product 12NC List

12NC List:

929002171080 Xitanium 30W LT 0.7A 42V 230V I

929002171180 Xitanium 34W LT 0.8A 42V 230V I

929002171280 Xitanium 38W LT 0.9A 42V 230V I

929002171380 Xitanium 44W LT 1.05A 42V 230V I
