PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

Product date

Model name:PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

12NC:929000950606

Output voltage: 50 to 115 Vdc

Output current: 0.12 A - 0.4 A

Output power: 10 to 36 W

Pieces per box: 24

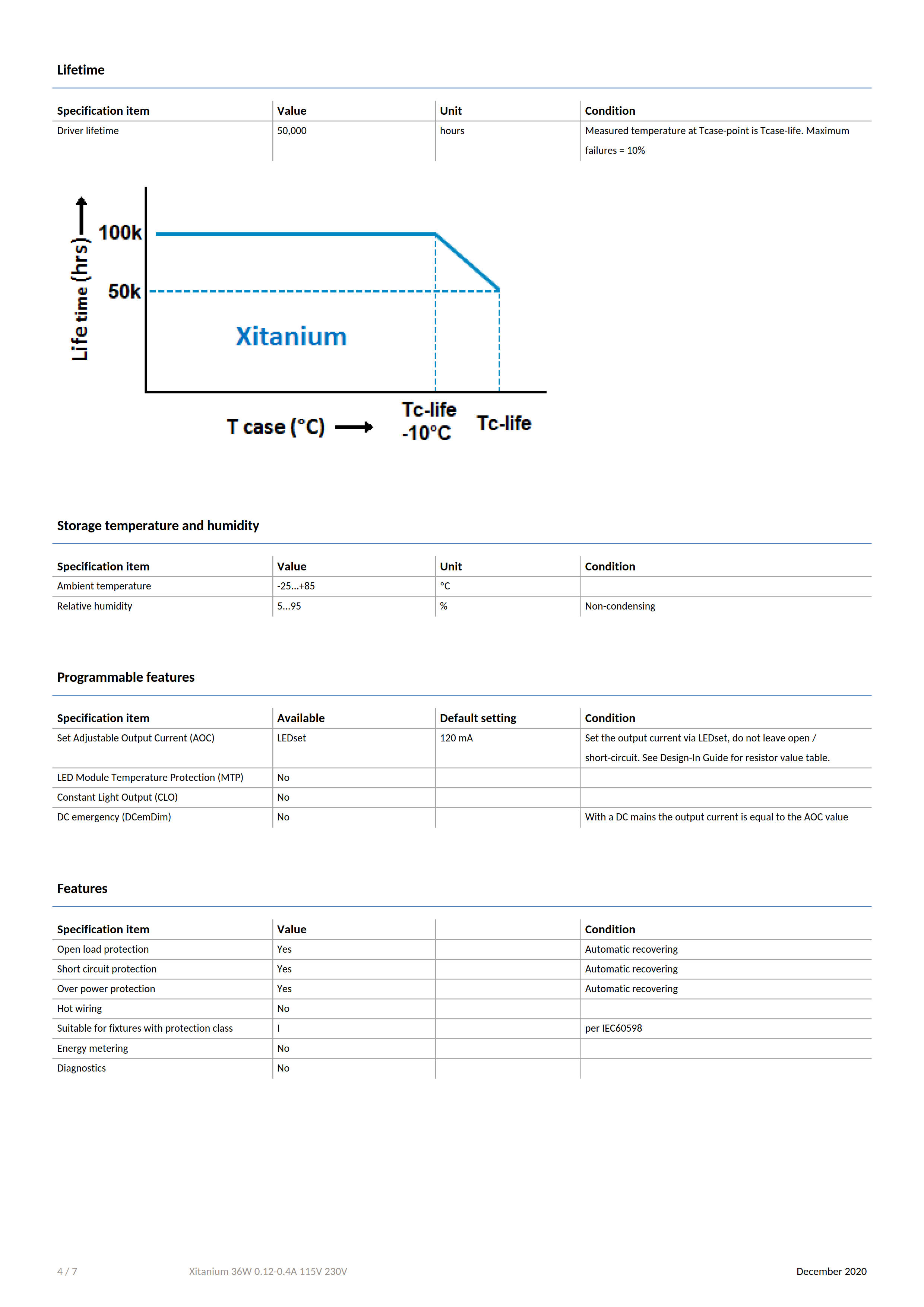

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

12NC:929000950606

Output voltage: 50 to 115 Vdc

Output current: 0.12 A - 0.4 A

Output power: 10 to 36 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

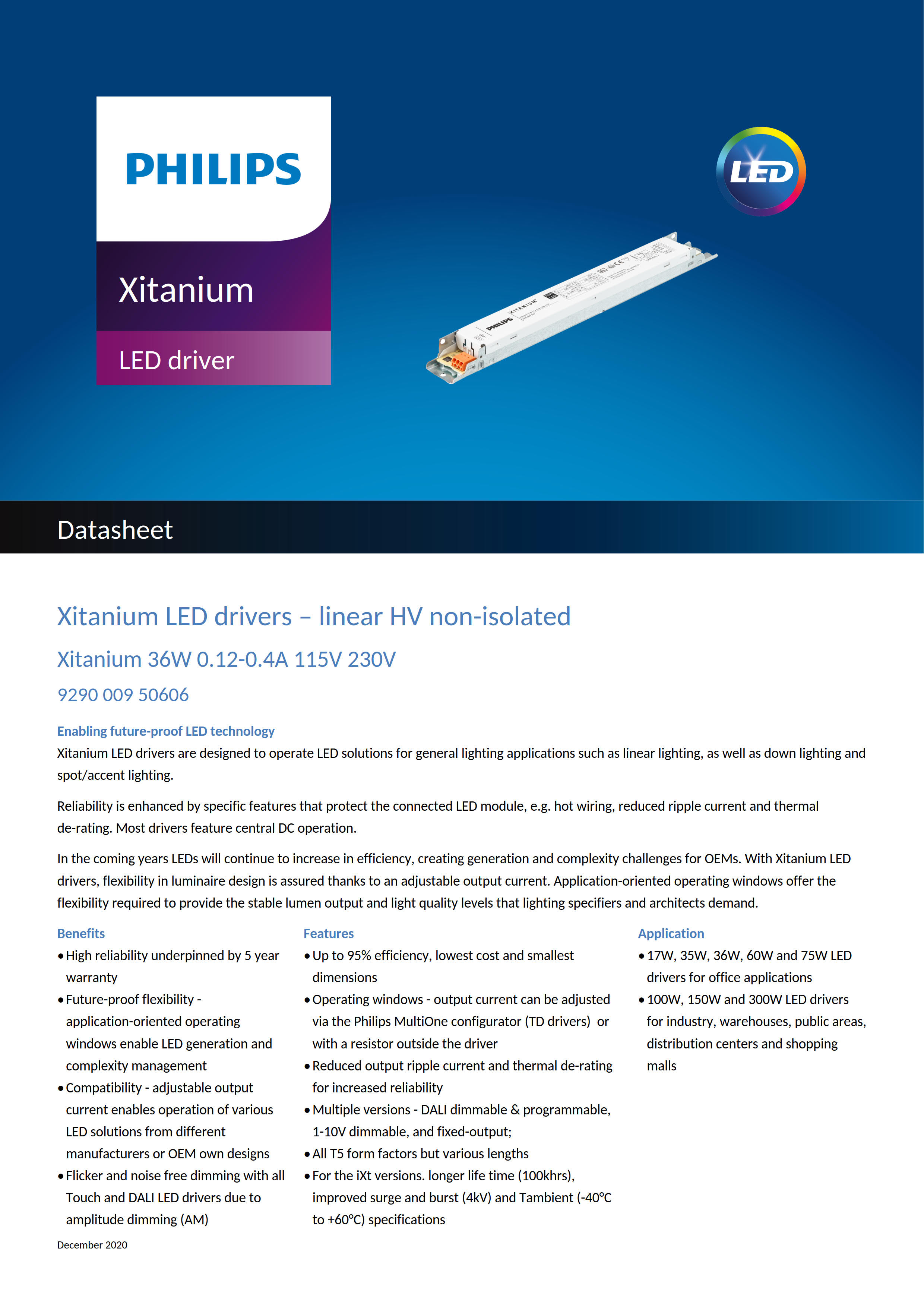

Enabling future-proof LED technology Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as down lighting and spot/accent lighting. Reliability is enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal de-rating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand.


Benefits

• High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs


Features

•Up to 95% efficiency, lowest cost and smallest dimensions

• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver

• Reduced output ripple current and thermal de-rating for increased reliability


Application

• 17W, 35W, 36W, 60W and 75W LED drivers for office applications

• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606

PHILIPS Xitanium 36W 0.12-0.4A 115V 230V 929000950606


PHILIPS Product 12NC List

12NC List:

929000950606 Xitanium 36W 0.12-0.4A 115V 230V

929000950706 Xitanium 75W 0.12-0.4A 220V 230V

929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V

929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V

929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

929000958706 Xitanium 36W/0.3-1A 54V 230V

929000958806 Xitanium 75W/0.7-2A 54V 230V
