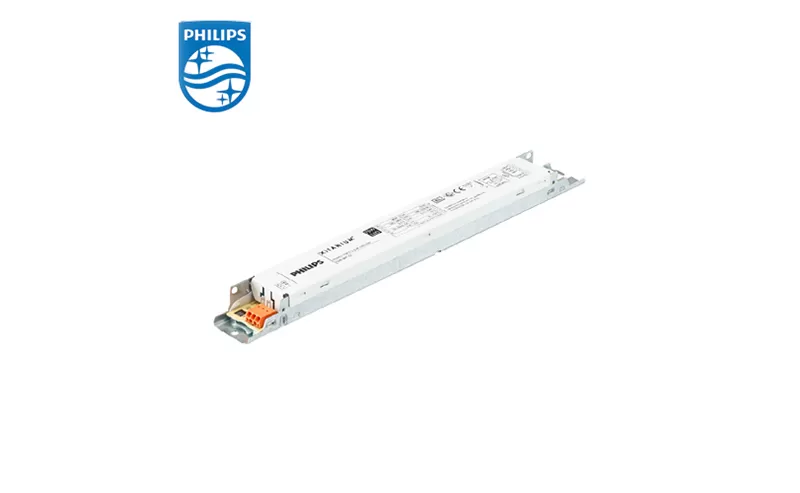

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

Product date

Model name:PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

12NC:929000958706

Output voltage: 27 to 54 Vdc

Output current: 0.3 A - 1 A

Output power: 11 to 37 W

Pieces per box: 24

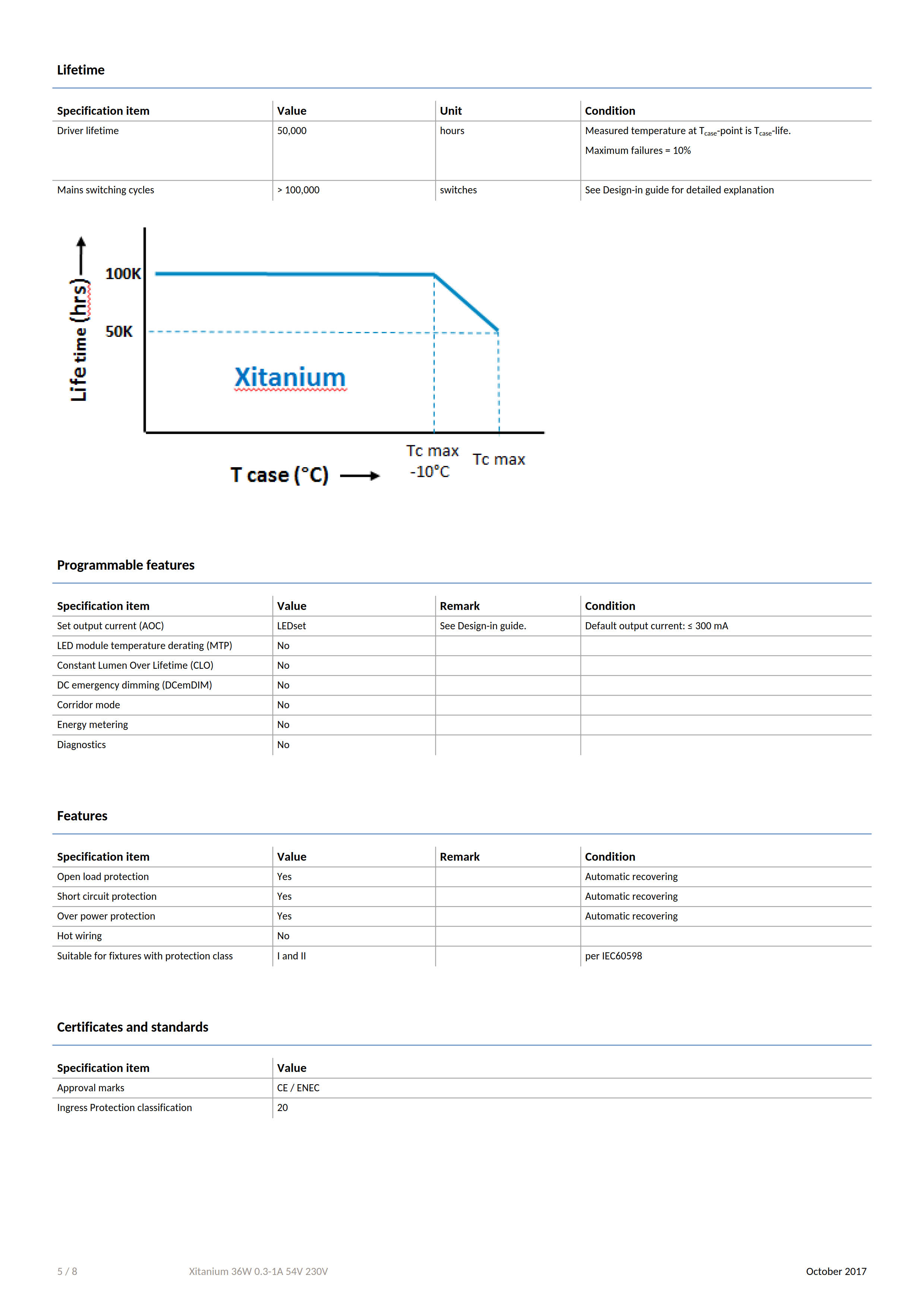

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

12NC:929000958706

Output voltage: 27 to 54 Vdc

Output current: 0.3 A - 1 A

Output power: 11 to 37 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

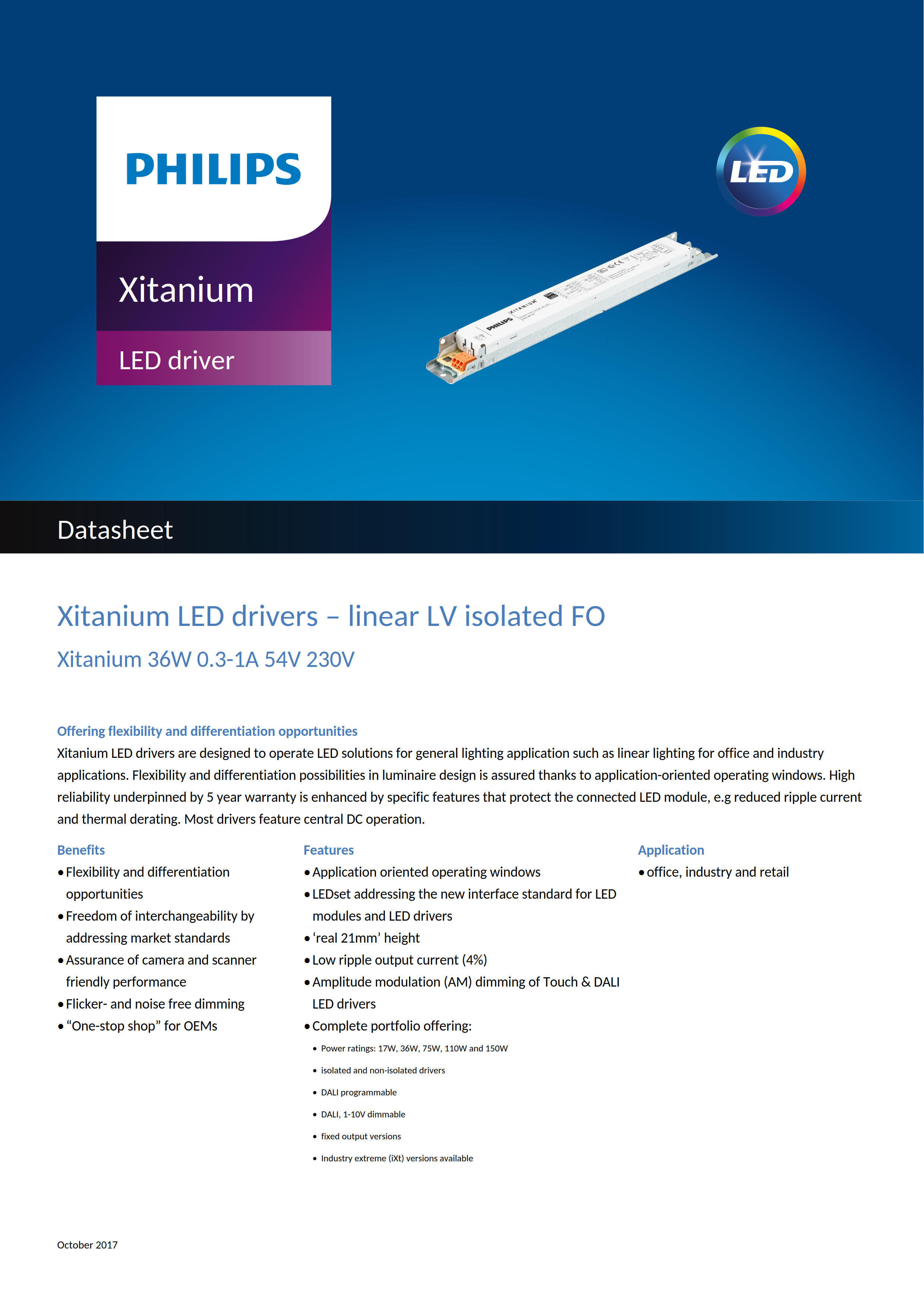

Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as down lighting and spot/accent lighting. Reliability is enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal de-rating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand.



Benefits

• Flexibility and differentiation opportunities

• Freedom of interchangeability by addressing market standards

• Assurance of camera and scanner friendly performance

• Flicker- and noise free dimming

• “One-stop shop” for OEMs


Features

• Application faced operating windows

• LEDset3 addressing the new interface standard for LED modules and LED drivers

• ‘real 21mm’ height

• Low ripple output current (4%)

• Amplitude modulation (AM) dimming of Touch & DALI LED drivers


Application

• office, industry and retail

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706

PHILIPS Xitanium 36W/0.3-1A 54V 230V 929000958706


PHILIPS Product 12NC List

12NC List:

929000950606 Xitanium 36W 0.12-0.4A 115V 230V

929000950706 Xitanium 75W 0.12-0.4A 220V 230V

929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V

929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V

929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

929000958706 Xitanium 36W/0.3-1A 54V 230V

929000958806 Xitanium 75W/0.7-2A 54V 230V
