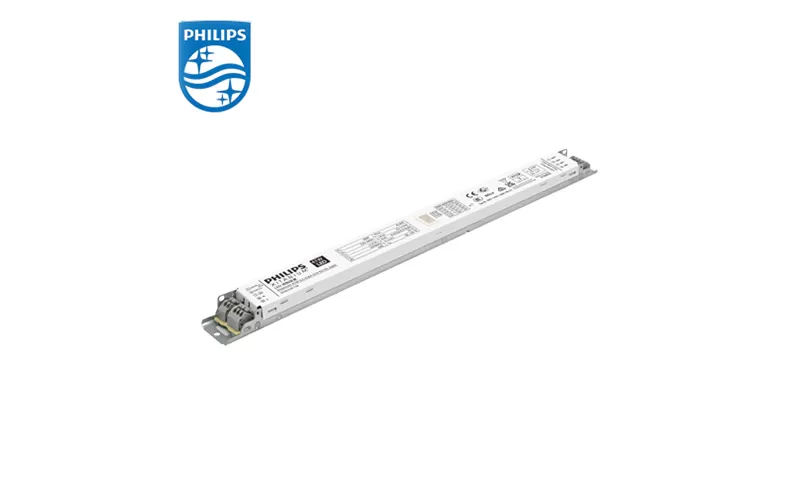

PHILIPS Xitanium 36W 0.3-1A 54V TD 230V 929001503606

Product date

Model name:PHILIPS Xitanium 36W 0.3-1A 54V TD 230V 929001503606

12NC:929001503606

Output voltage: 27 to 54 Vdc

Output current: 0.3 A - 1 A

Output power: 10 to 36 W

Pieces per box: 24

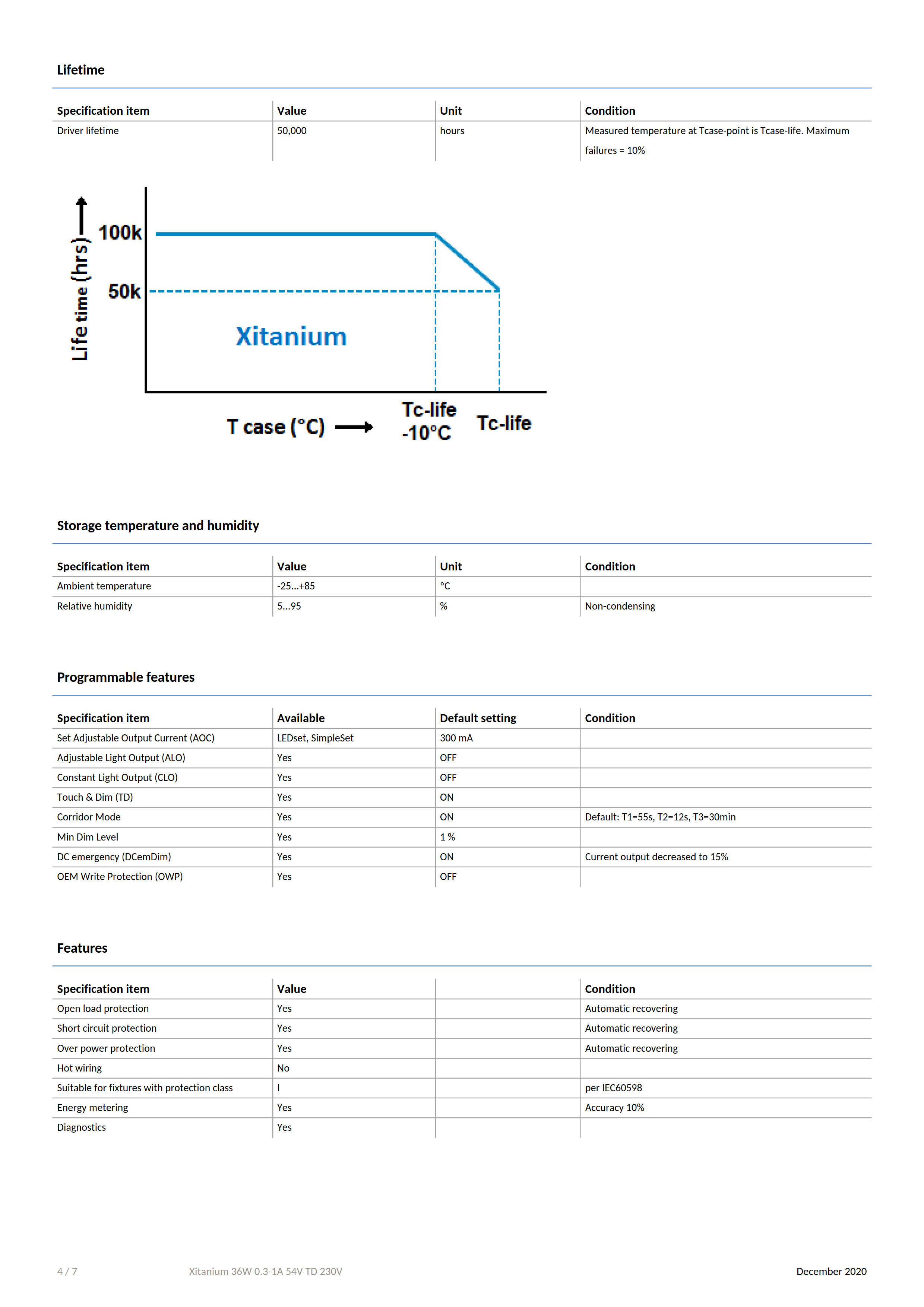

Driver lifetime: 50,000 hours

Control method: Corridor Mode, DALI, Touch & Dim (TD)

PHILIPS Xitanium 36W 0.3-1A 54V TD 230V 929001503606

Benefits

• Simpler approval process and easy design-in

• Operating windows - output current configurable via DALI or SimpleSet by means of Philips MultiOne software or via a resistor (LEDset)

• Reduced ripple current and thermal derating for increased reliability

• Power ratings: 36W, 65W and 75W

Features

• Simpler approval process and easy design-in

• Operating windows - output current configurable via DALI or SimpleSet by means of Philips MultiOne software or via a resistor (LEDset)

•Reduced ripple current and thermal derating for increased reliability

Application

• Offices

• Industry

• Supermarkets / Retail

 12NC List:

929001503606 Xitanium 36W 0.3-1A 54V TD 230V

 929001503706 Xitanium 75W 0.7-2A 54V TD 230V

 929000852103 Xitanium 75W 0.12-0.4A 215V TD 230V
