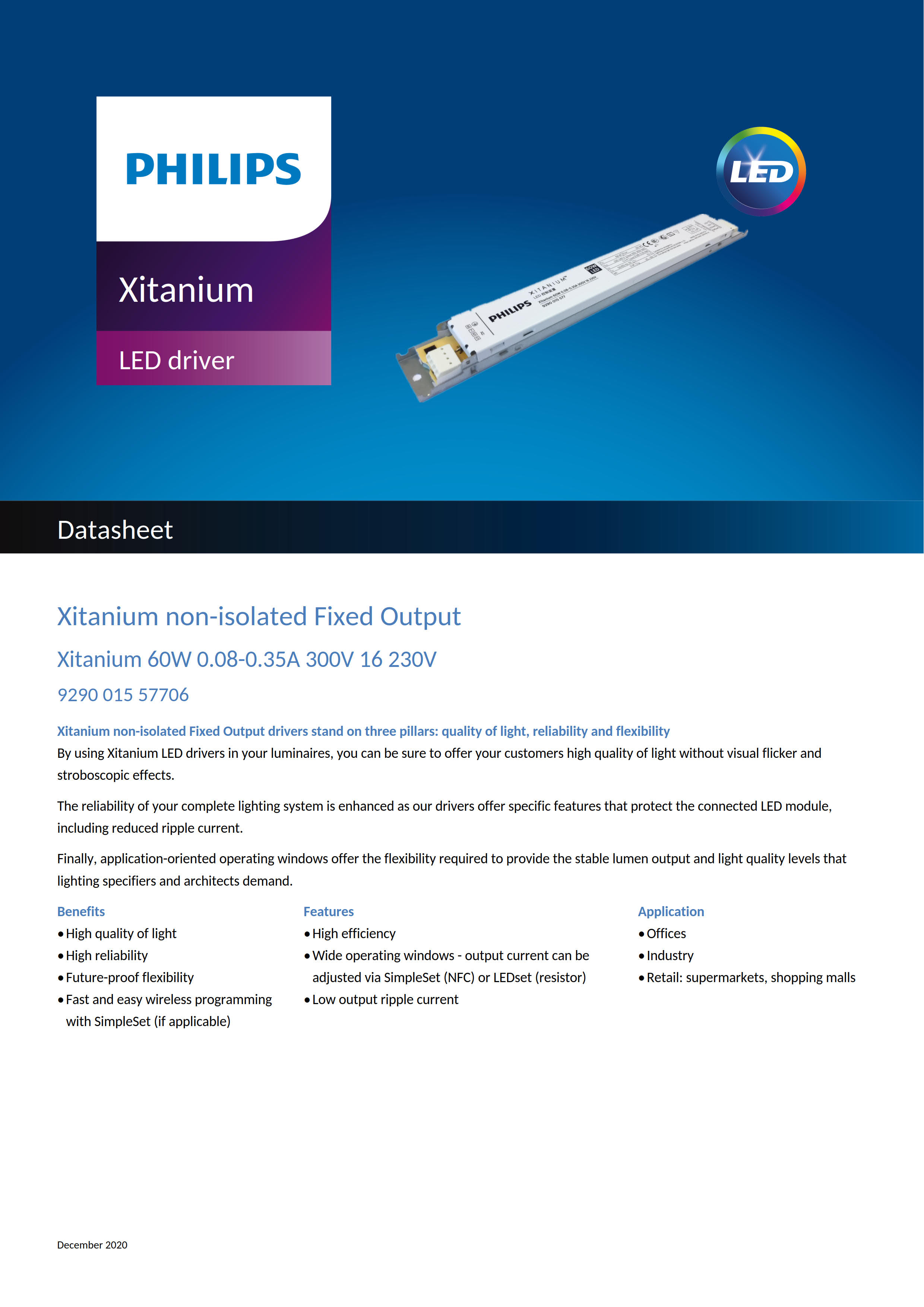

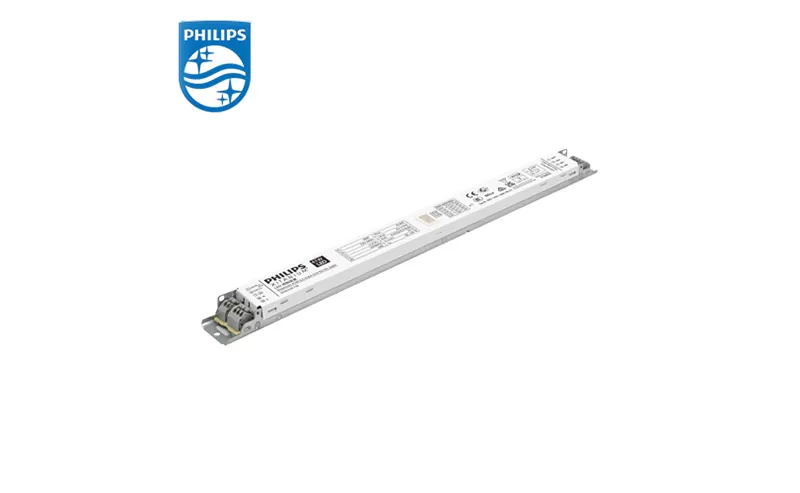

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

Product date

Model name:PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

12NC:929001557406

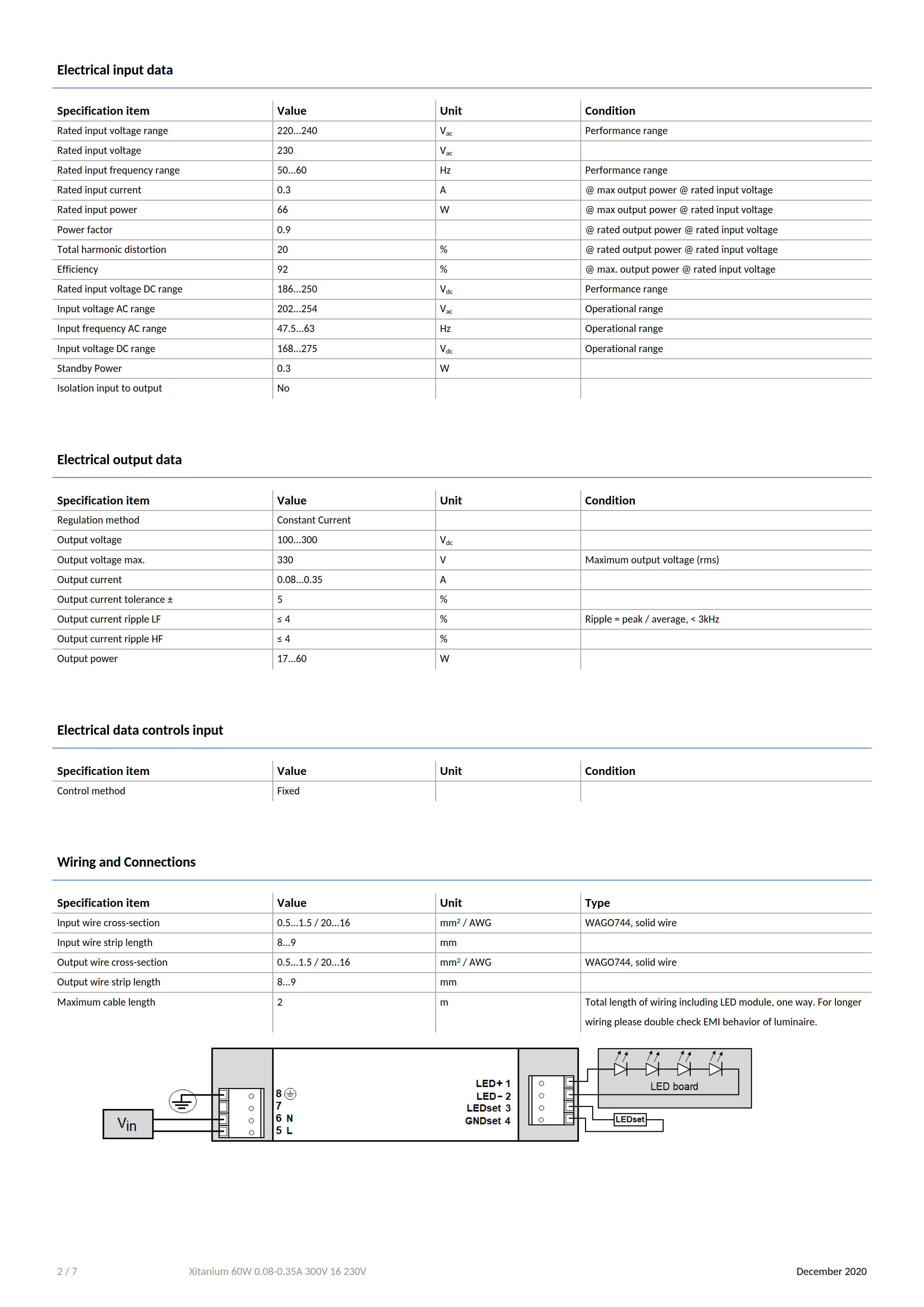

Output voltage: 100 to 300 Vdc

Output current: 0.08 A - 0.35 A

Output power: 17 to 60 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

12NC:929001557406

Output voltage: 100 to 300 Vdc

Output current: 0.08 A - 0.35 A

Output power: 17 to 60 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Fixed


PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

Benefits

• High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs


Features

•Up to 95% efficiency, lowest cost and smallest dimensions

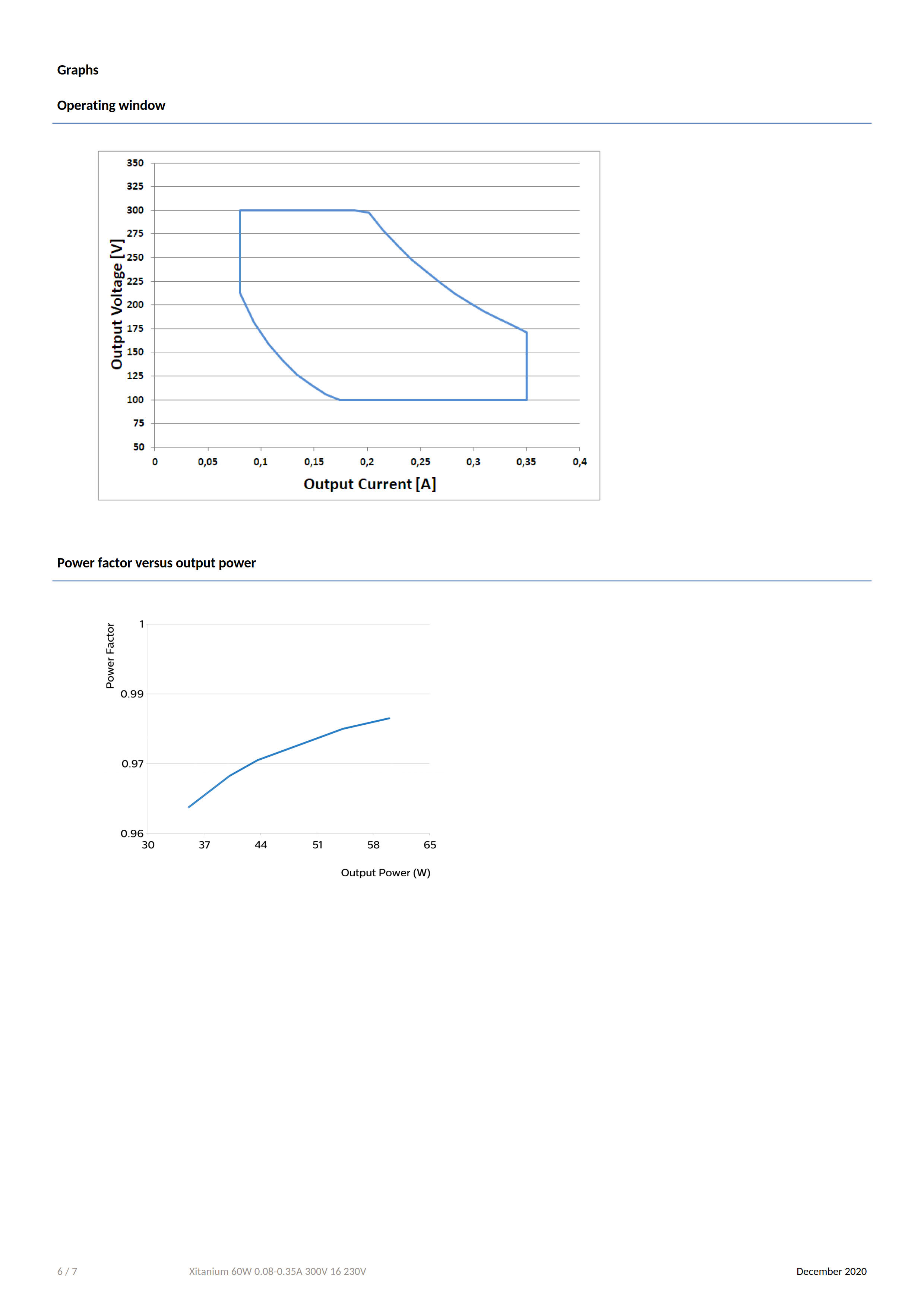

• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver

• Reduced output ripple current and thermal de-rating for increased reliability

• Multiple versions - DALI dimmable & programmable, 1-10V dimmable, and fixed-output;


Application

• 17W, 35W, 36W, 60W and 75W LED drivers for office applications

• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406

PHILIPS Xitanium 60W 0.08-0.35A 300V S/16 230V 929001557406


PHILIPS Product 12NC List

12NC List:

929001529506 Xitanium 100W 0.25-0.7A 220V S 230V

929001557306 Xitanium 35W 0.08-0.35A 150V S/16 230V

929001557406 Xitanium 60W 0.08-0.35A 300V S/16 230V

929001557506 Xitanium 60W 0.08-0.35A 220V S/16 230V
