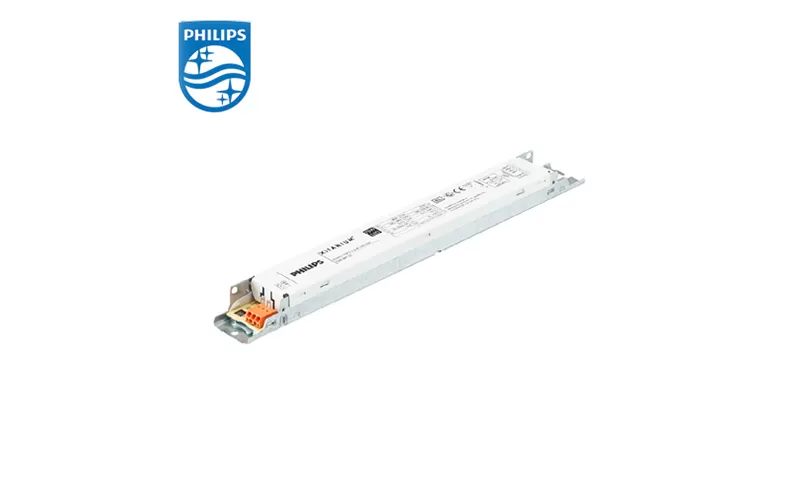

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

Product date

Model name:PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

12NC:929000953706

Output voltage: 100 to 220 Vdc

Output current: 0.12 A - 0.4 A

Output power: 21 to 75 W

Pieces per box: 24

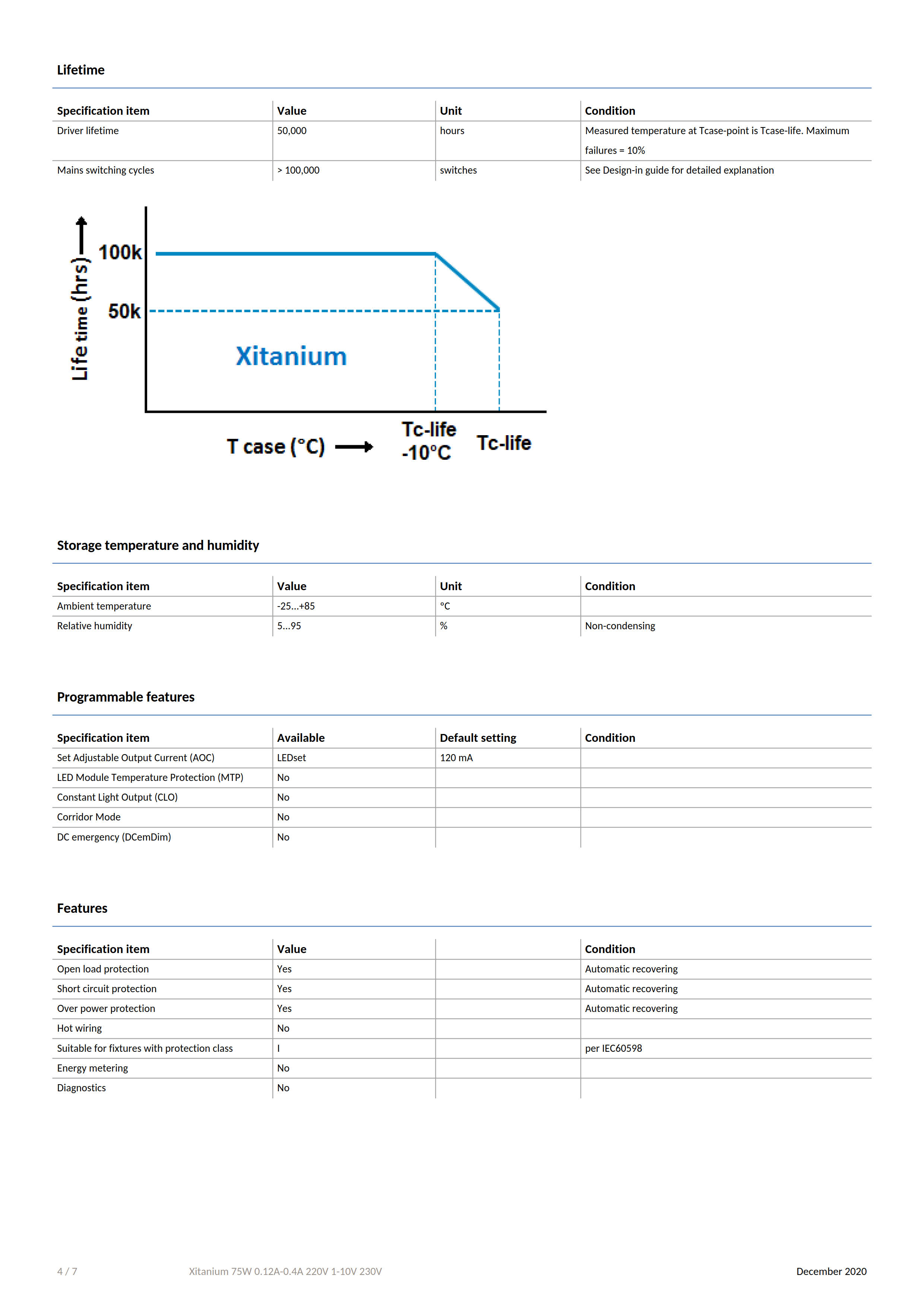

Driver lifetime: 50,000 hours

Control method: 1-10 V


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

12NC:929000953706

Output voltage: 100 to 220 Vdc

Output current: 0.12 A - 0.4 A

Output power: 21 to 75 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: 1-10 V


PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706


Benefits

• High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs


Features

•Up to 95% efficiency, lowest cost and smallest dimensions

• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver

• Reduced output ripple current and thermal de-rating for increased reliability


Application

• 17W, 35W, 36W, 60W and 75W LED drivers for office applications

• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706

PHILIPS Xitanium 75W 0.12-0.4A 220V 1-10V 230V 929000953706


PHILIPS Product 12NC List

12NC List:

929000950606 Xitanium 36W 0.12-0.4A 115V 230V

929000950706 Xitanium 75W 0.12-0.4A 220V 230V

929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V

929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V

929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

929000958706 Xitanium 36W/0.3-1A 54V 230V

929000958806 Xitanium 75W/0.7-2A 54V 230V
