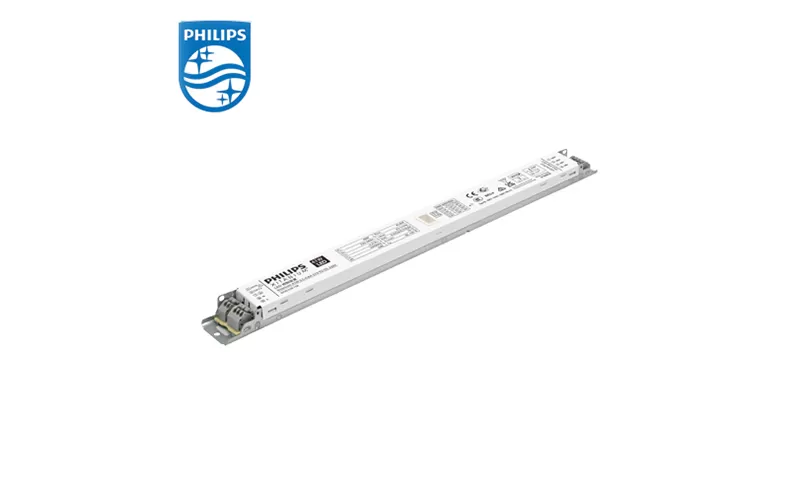

PHILIPS Xitanium 75W 0.7-2A 54V 1-10V 230V 929000863503

Product date

Model name:PHILIPS Xitanium 75W 0.7-2A 54V 1-10V 230V 929000863503

12NC:929000863503

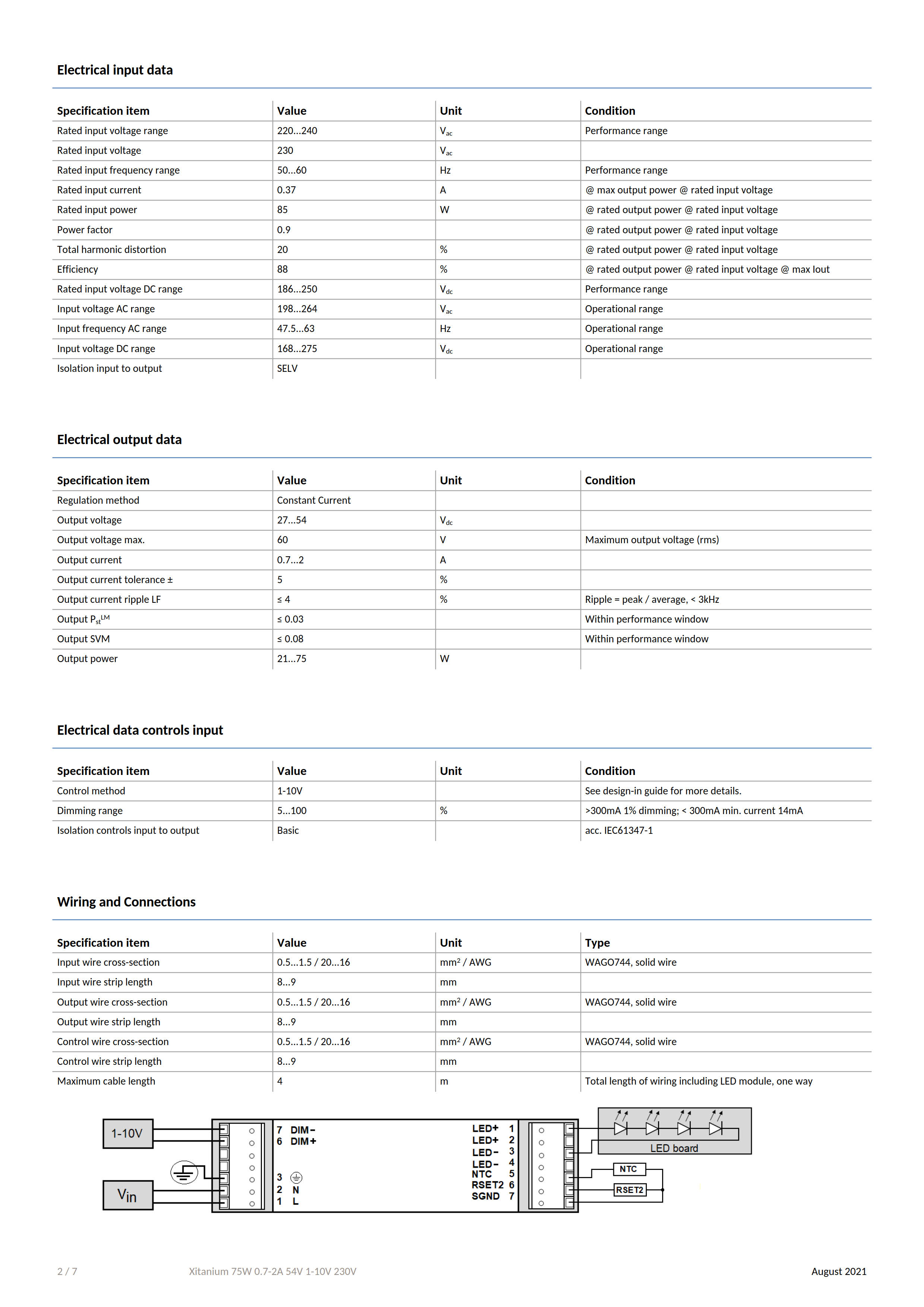

Output voltage: 27 to 54 Vdc

Output current: 0.7 A - 2 A

Output power: 21 to 75 W

 Pieces per box: 12

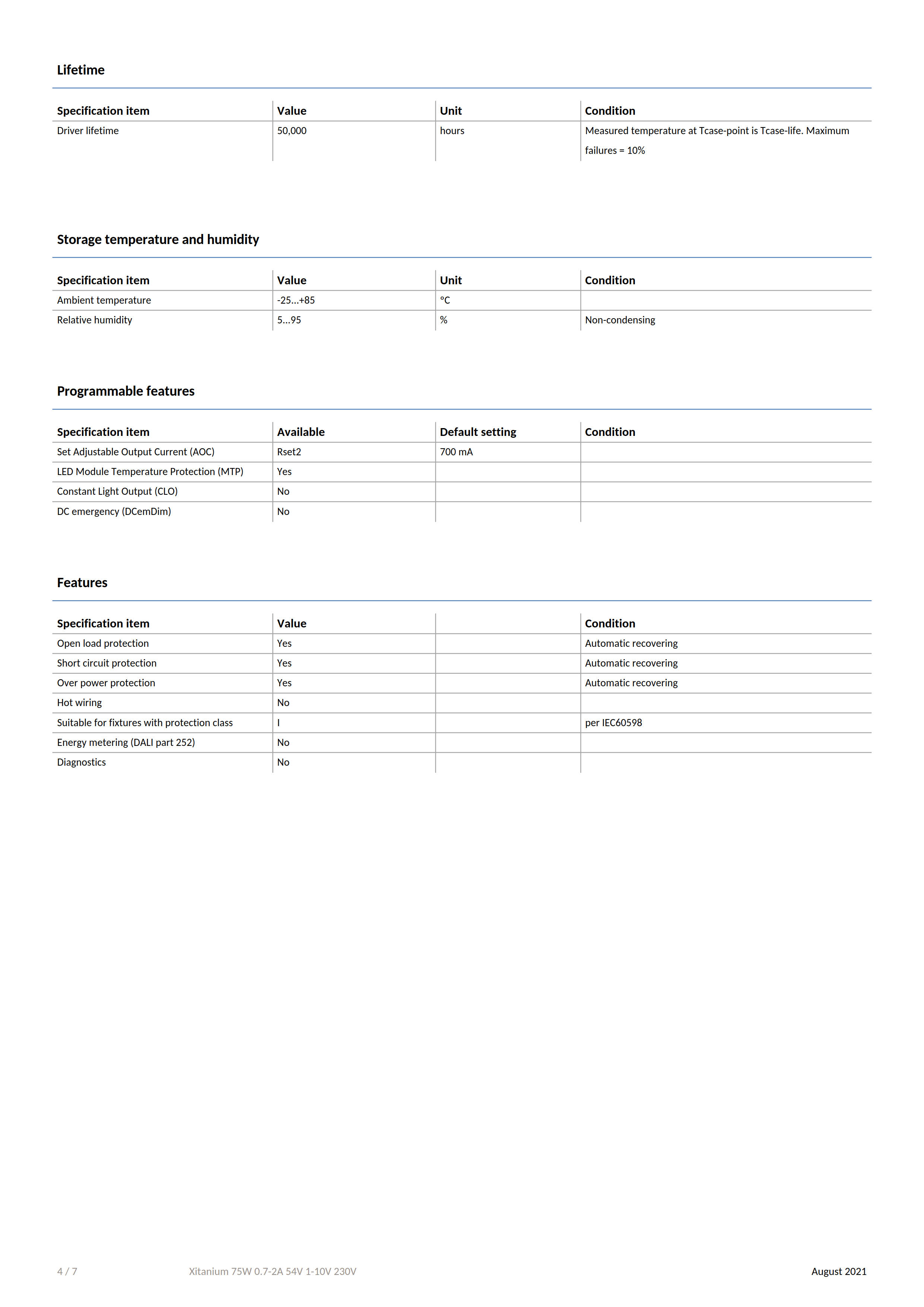

 Driver lifetime: 50,000 hours

 Control method: 1-10 V

PHILIPS Xitanium 75W 0.7-2A 54V 1-10V 230V 929000863503

Benefits

• Flexibility and differentiation opportunities

• Freedom of interchangeability by addressing market standards

• Assurance of camera and scanner friendly performance

• Flicker- and noise free dimming

• “One-stop shop” for OEMs

Features

• Application faced operating windows

• LEDset3 addressing the new interface standard for LED modules and LED drivers

• real 21mm’ height

• Low ripple output current (4%)

• Amplitude modulation (AM) dimming of Touch & DALI LED drivers

Application

• office, industry and retail

12NC List:

929000950606 Xitanium 36W 0.12-0.4A 115V 230V

929000950706 Xitanium 75W 0.12-0.4A 220V 230V

929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V

929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V

929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

929000958706 Xitanium 36W/0.3-1A 54V 230V

929000958806 Xitanium 75W/0.7-2A 54V 230V
