Product date

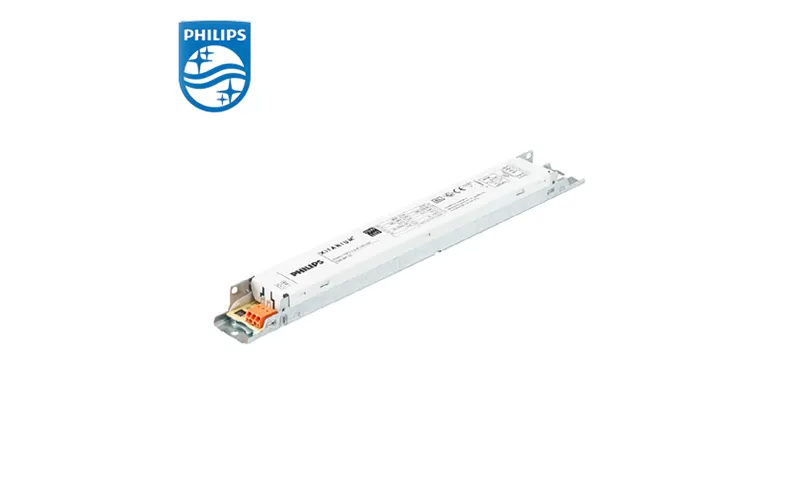

Model name:PHILIPS Xitanium 75W/0.7-2A 54V 230V 929000958806
12NC:929000958806
Output voltage: 27 to 54 Vdc
Output current: 0.35 A - 2 A
Output power: 48 to 75 W
Pieces per box: 24
Driver lifetime: 50,000 hours
Control method: Fixed
PRODUCT DATA
Product date
Model name:PHILIPS Xitanium 75W/0.7-2A 54V 230V 929000958806
12NC:929000958806
Output voltage: 27 to 54 Vdc
Output current: 0.35 A - 2 A
Output power: 48 to 75 W
Pieces per box: 24
Driver lifetime: 50,000 hours
Control method: Fixed
PHILIPS Xitanium 75W/0.7-2A 54V 230V 929000958806
Benefits
• Flexibility and differentiation opportunities
• Freedom of interchangeability by addressing market standards
• Assurance of camera and scanner friendly performance
• Flicker- and noise free dimming
• “One-stop shop” for OEMs
Features
• Application faced operating windows
• LEDset3 addressing the new interface standard for LED modules and LED drivers
• ‘real 21mm’ height
• Low ripple output current (4%)
• Amplitude modulation (AM) dimming of Touch & DALI LED drivers
Application
• office, industry and retail
PHILIPS Product 12NC List
12NC List:
929000950606 Xitanium 36W 0.12-0.4A 115V 230V
929000950706 Xitanium 75W 0.12-0.4A 220V 230V
929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V
929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V
929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V
929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V
929000958706 Xitanium 36W/0.3-1A 54V 230V
929000958806 Xitanium 75W/0.7-2A 54V 230V
