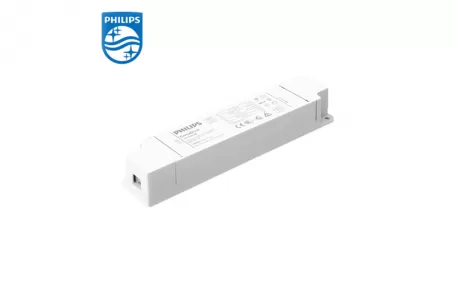

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

Product date

Model name:PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

12NC:929001503706

Output voltage: 27 to 54 Vdc

Output current: 0.7 A - 2 A

Output power: 21 to 75 W

Pieces per box: 24

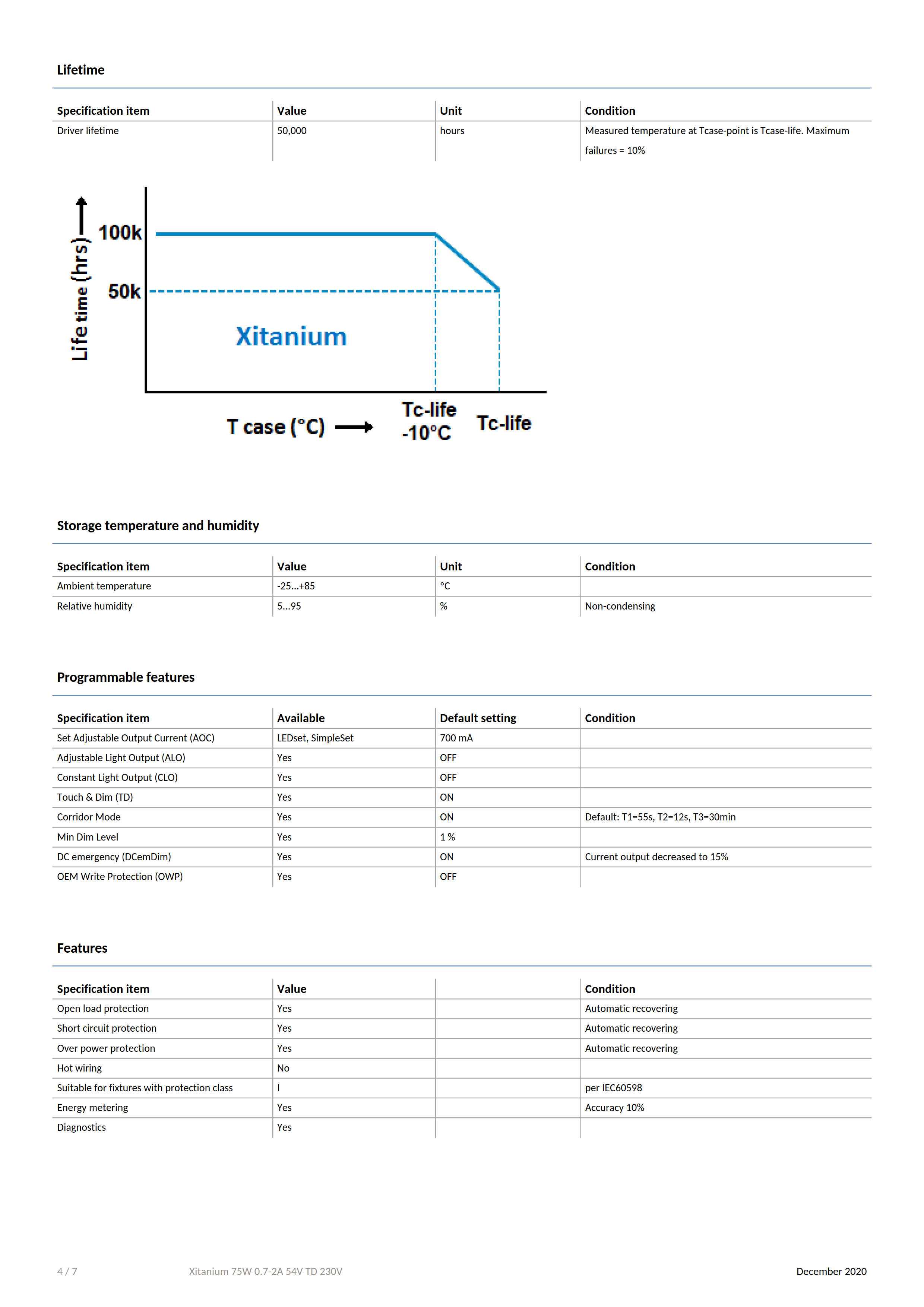

Driver lifetime: 50,000 hours

Control method: Corridor Mode, DALI, Touch & Dim (TD)


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

12NC:929001503706

Output voltage: 27 to 54 Vdc

Output current: 0.7 A - 2 A

Output power: 21 to 75 W

Pieces per box: 24

Driver lifetime: 50,000 hours

Control method: Corridor Mode, DALI, Touch & Dim (TD)


PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706


Benefits

•High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

•Compatibility - can also be used for other manufacturers' modules or OEMs' own PCB designs

• Flicker and noise free dimming with all Touch and DALI LED drivers due to amplitude dimming (AM)


Features

• Simpler approval process and easy design-in

• Operating windows - output current configurable via DALI or SimpleSet by means of Philips MultiOne software or via a resistor (LEDset)

•Reduced ripple current and thermal derating for increased reliability

• Power ratings: 36W, 65W and 75W

•DALI dimmable & programmable, 1-10V dimmable, and fixed-output versions



Application

• Offices

• Industry

• Supermarkets / Retail

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706

PHILIPS Xitanium 75W 0.7-2A 54V TD 230V 929001503706


PHILIPS Product 12NC List

12NC List:

929001503606 Xitanium 36W 0.3-1A 54V TD 230V

929001503706 Xitanium 75W 0.7-2A 54V TD 230V

929000852103 Xitanium 75W 0.12-0.4A 215V TD 230V
