Product date
Xitanium G3 25W 0.45-0.6A 42V DS I 230V 929002808906
Wattage:25W
Rated input voltage range:220-240 V
Rated input current:0.1 / 0.12 / 0.13 / 0.14 A
Power factor:0.9
Output voltage:30-42 V
Output current:0.45 / 0.5 / 0.55 / 0.6 A
Output power:13.5-25.2 W
PRODUCT DATA
Product date
Xitanium G3 25W 0.45-0.6A 42V DS I 230V 929002808906
Wattage:25W
Rated input voltage range:220-240 V
Rated input current:0.1 / 0.12 / 0.13 / 0.14 A
Power factor:0.9
Output voltage:30-42 V
Output current:0.45 / 0.5 / 0.55 / 0.6 A
Output power:13.5-25.2 W

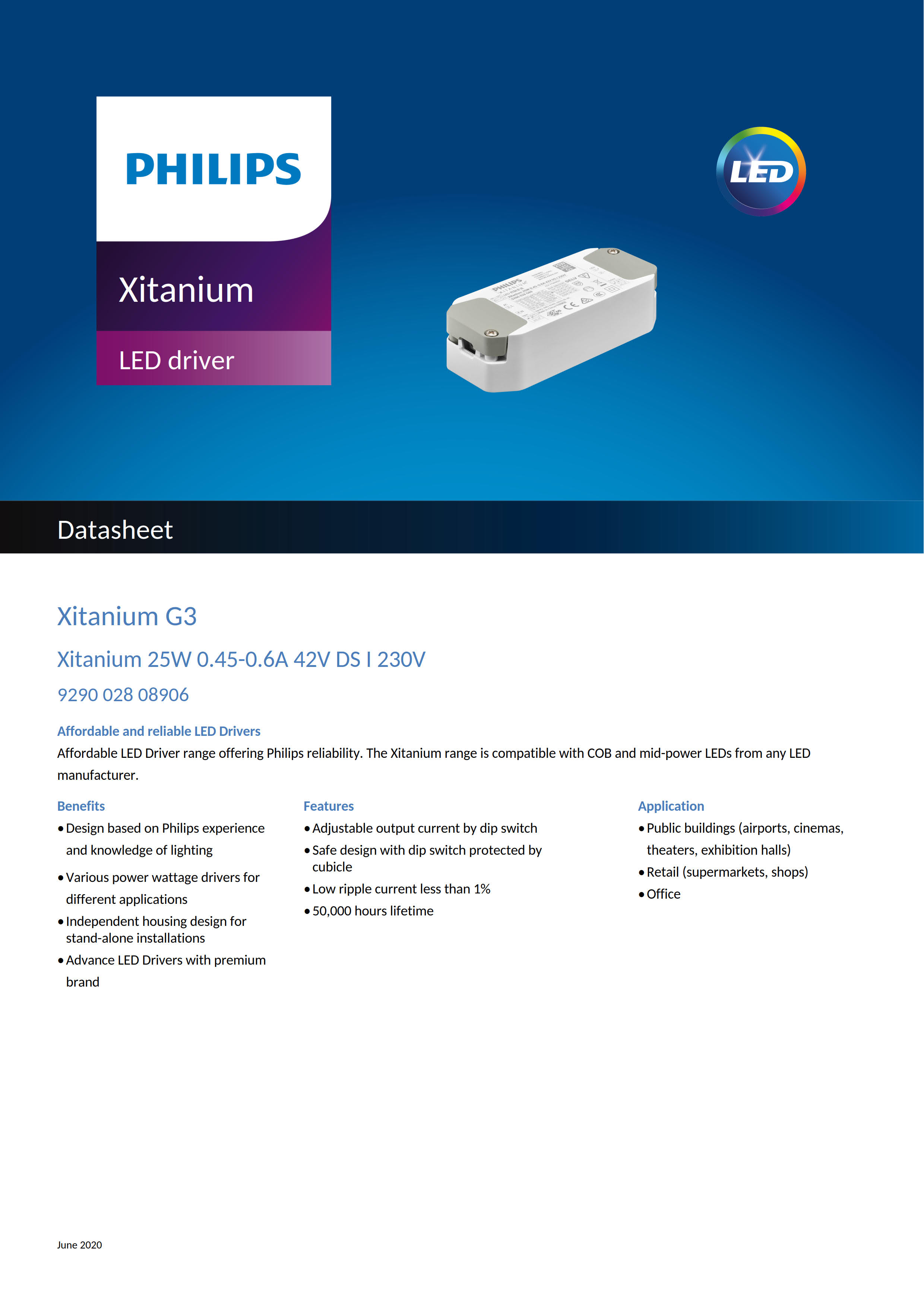

Xitanium G3

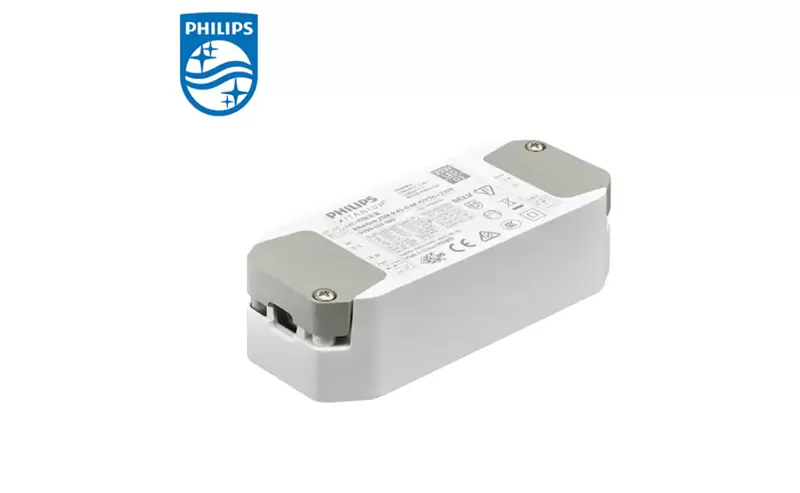

Xitanium G3 25W 0.45-0.6A 42V DS I 230V 929002808906
Affordable and reliable LED Drivers Affordable LED Driver range offering Philips reliability. The Xitanium range is compatible with COB and mid-power LEDs from any LED manufacturer
Benefits
• Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies
• Various power wattage Drivers that are related to the lumen packages/applications
• Fixed output Drivers
• Independent-version housing design for stand-alone installation
Features
• Small, compact dimensions
• Specific, optimized output current and voltage
• 50,000 hours lifetime
• Fast Time to Market
• Low ripple, low THD
Application
• Public buildings (airports, cinemas, theaters, exhibition halls)
• Retail (supermarkets, shops)
• Office
PHILIPS Product 12NC List
12NC List:
929002808806 Xitanium G3 15W 0.2-0.35A 42V DS I 230V
929002808906 Xitanium G3 25W 0.45-0.6A 42V DS I 230V
929002809006 Xitanium G3 36W 0.7-0.85A 42V DS I 230V
929002809106 Xitanium G3 44W 0.9-1.05A 42V DS I 230V
929001423380 Xitanium G3 50W 1.1/1.2A 42V I 230V
929001423480 Xitanium G3 59W 1.3/1.4A 42V I 230V
929001423580 Xitanium G3 64W 1.5/1.6A 40V I 230V
