PRODUCT DATA
Product date:
PHILIPS Xi EP 40W 0.7-1.05A WL I90 929003422280
12NC:929003422280
KV:4/6KV

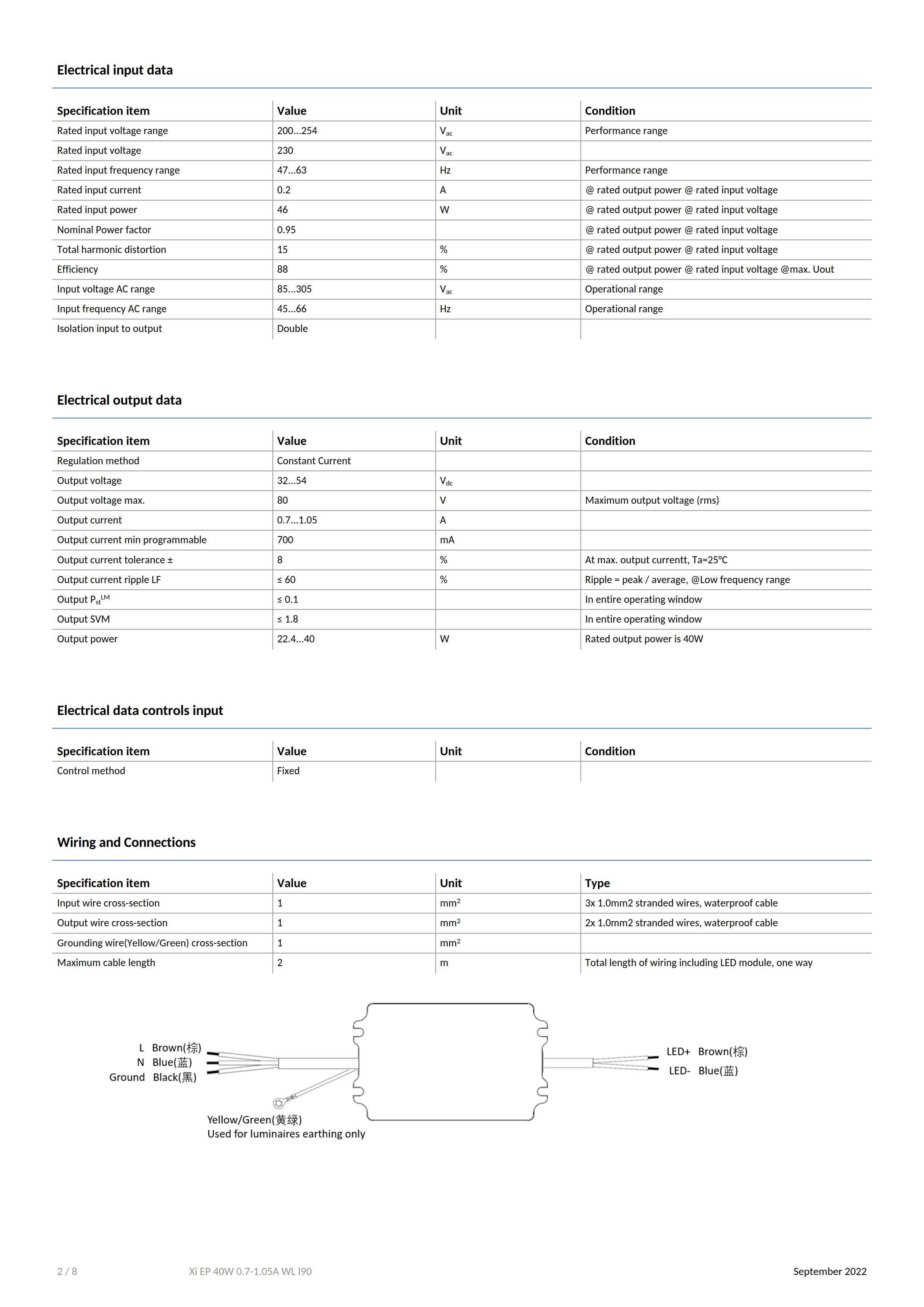

Voltage:100-277Vac

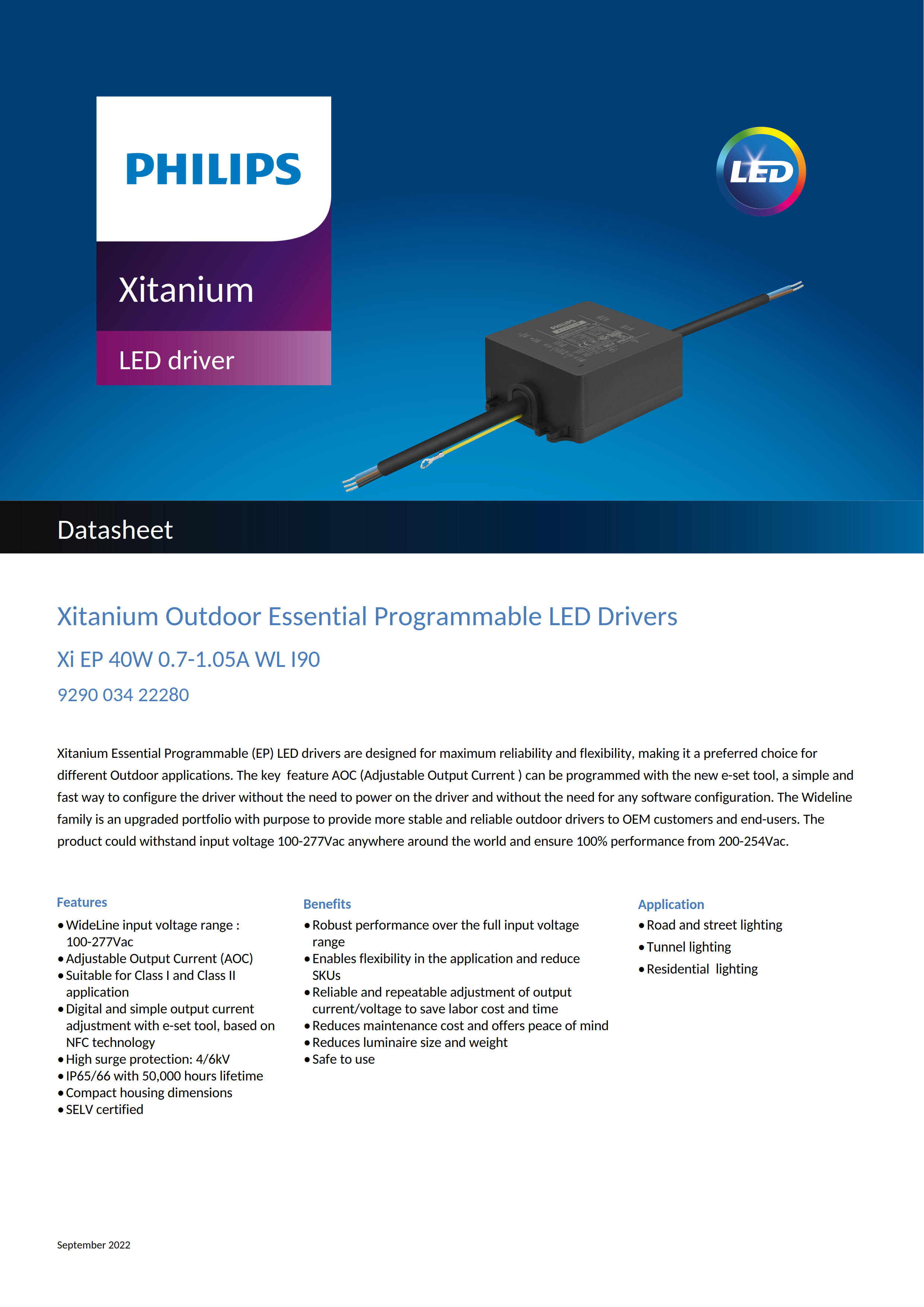

Xitanium Outdoor Essential Programmable LED Drivers

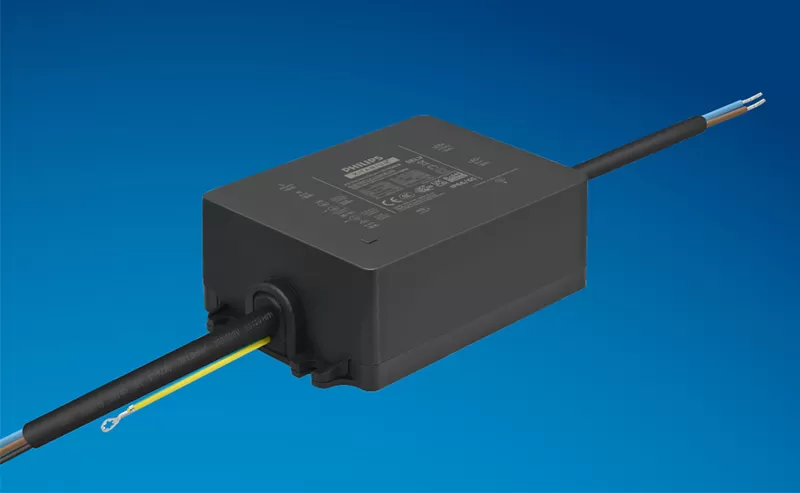

Xi EP 40W 0.7-1.05A WL I90
9290 034 22280
Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for different Outdoor applications. The key feature AOC (Adjustable Output Current ) can be programmed with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration. The Wideline family is an upgraded portfolio with purpose to provide more stable and reliable outdoor drivers to OEM customers and end-users. The product could withstand input voltage 100-277Vac anywhere around the world and ensure 100% performance from 200-254Vac.
Features
• WideLine input voltage range : 100-277Vac
• Adjustable Output Current (AOC)
• Suitable for Class I and Class II
application
• Digital and simple output current
adjustment with e-set tool, based on NFC technology

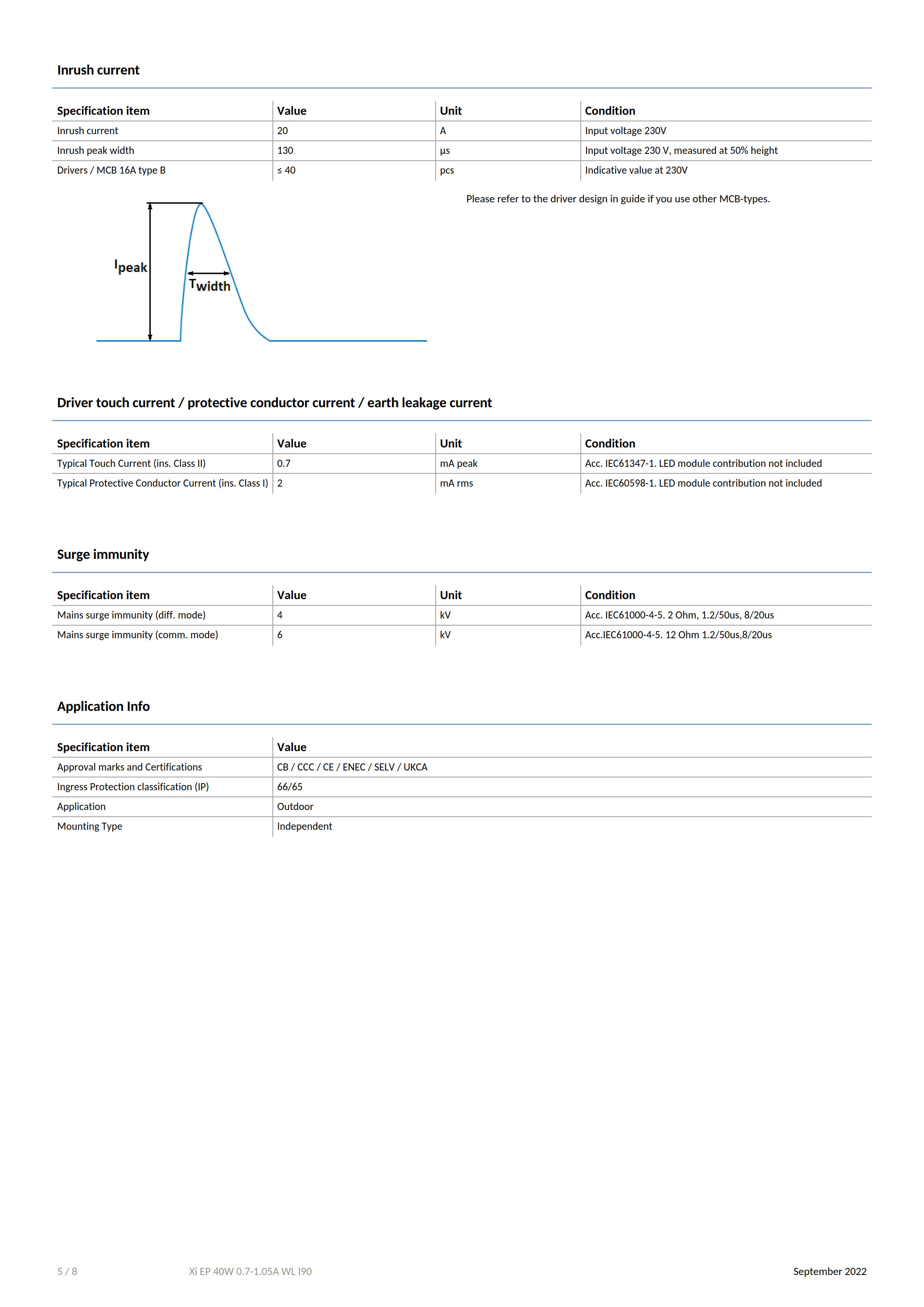

• High surge protection: 4/6kV

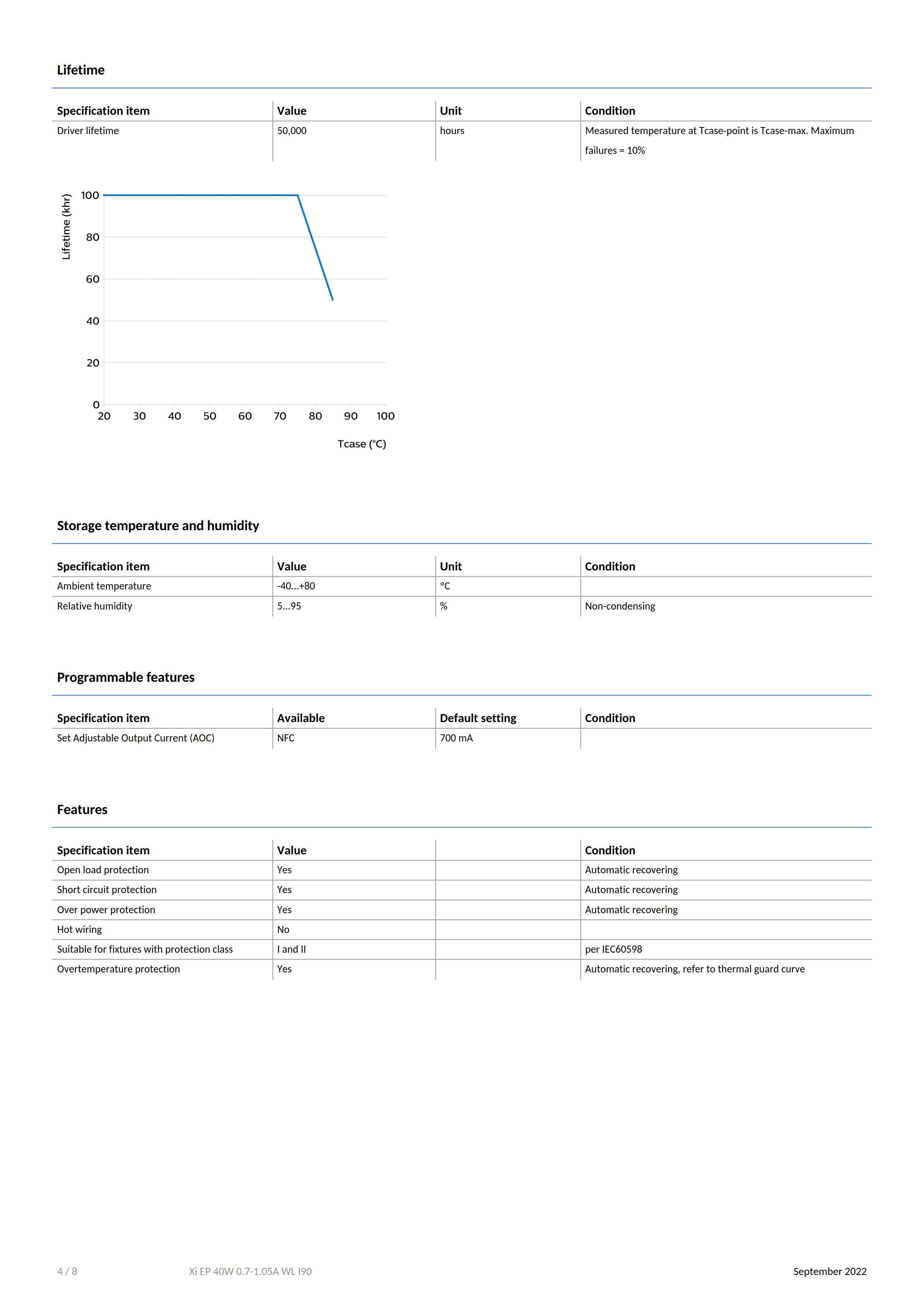

• IP65/66 with 50,000 hours lifetime
• Compact housing dimensions
• SELV certified
Benefits
• Robust performance over the full input voltage range
• Enables flexibility in the application and reduce SKUs
• Reliable and repeatable adjustment of output current/voltage to save labor cost and time
• Reduces maintenance cost and offers peace of mind • Reduces luminaire size and weight
• Safe to use
Application
• Road and street lighting • Tunnel lighting
• Residential lighting
PHILIPS Product 12NC List
12NC List:
PHILIPS Xi EP 40W 0.7-1.05A WL I90 929003422280
PHILIPS Xi EP 65W 0.7-1.05A WL I112 929003422680
