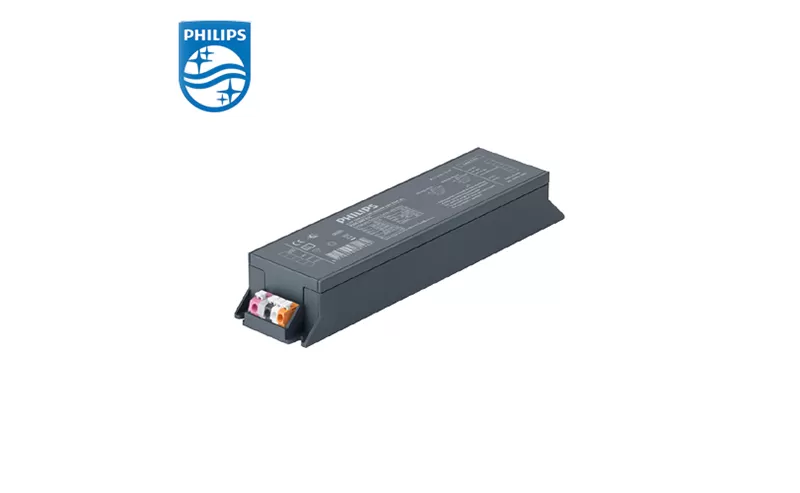

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

Model name:PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

12NC:929000989206

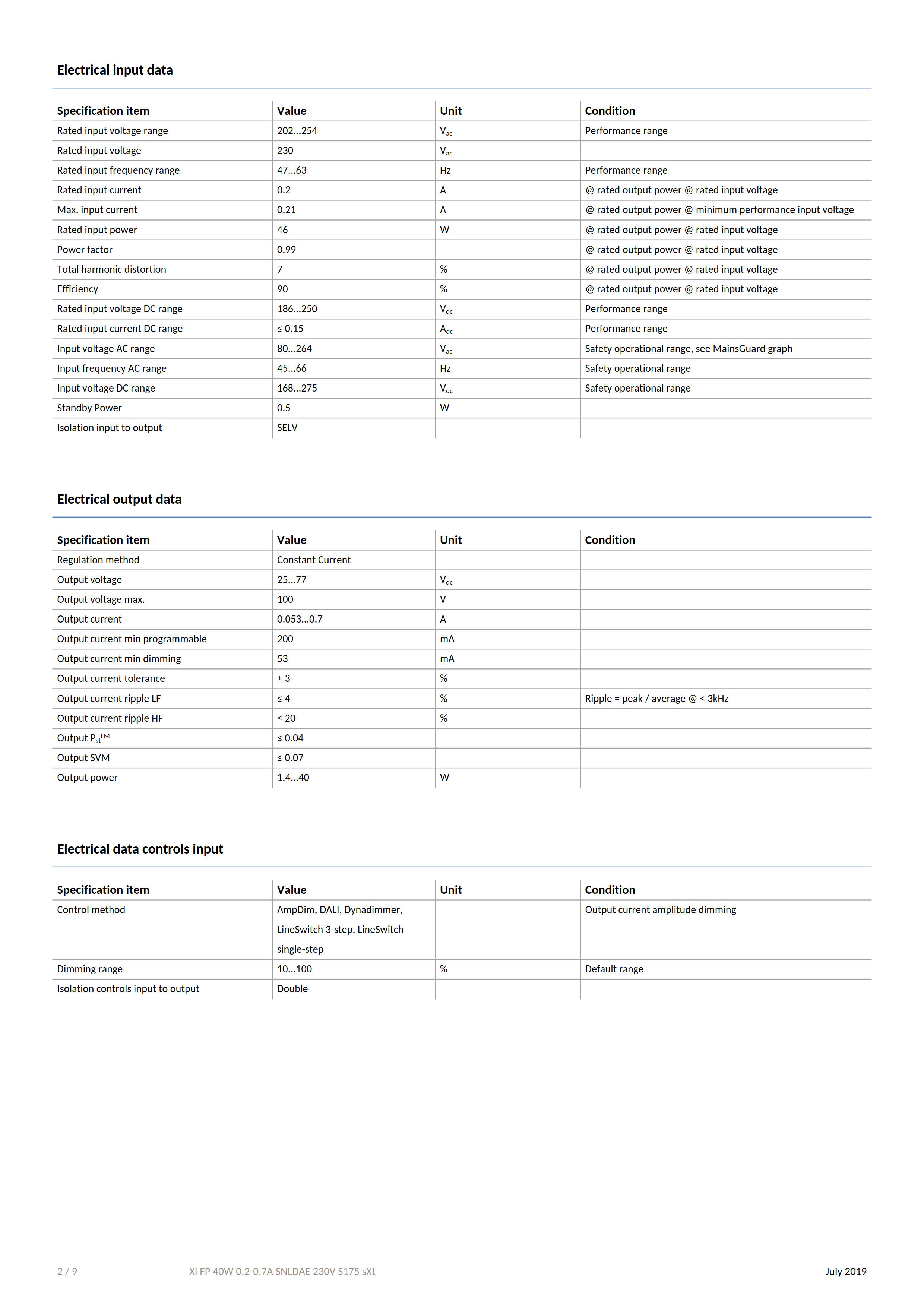

Output voltage: 25 to 77 Vdc

Output current min dimming: 53 mA

Output power: 1.3 to 40 W

Driver lifetime: 100,000 hours

Control method: DALI, Dynadimmer, LineSwitch, AmpDim


PRODUCT DATA

Model name:PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

12NC:929000989206

Output voltage: 25 to 77 Vdc

Output current min dimming: 53 mA

Output power: 1.3 to 40 W

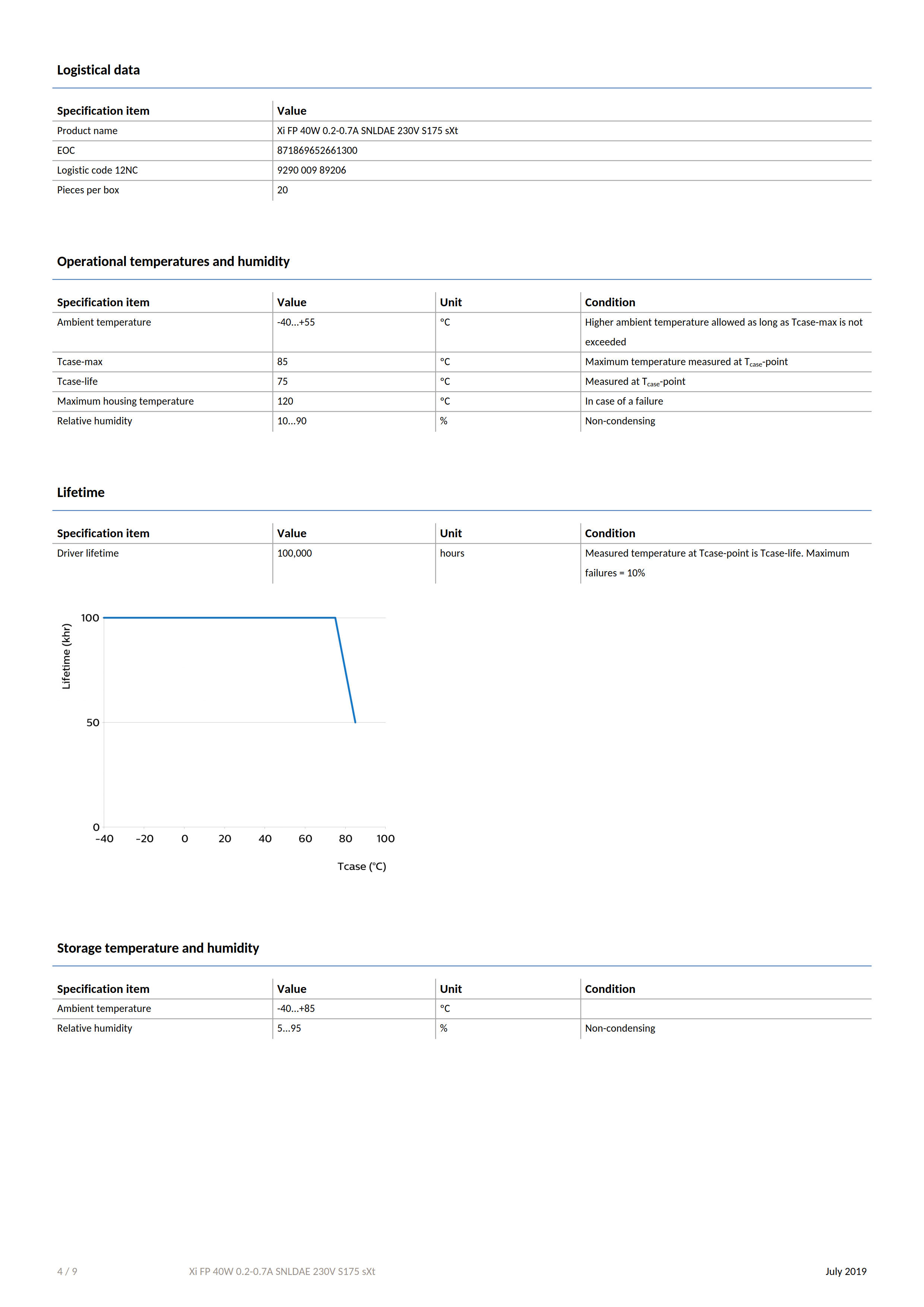

Driver lifetime: 100,000 hours

Control method: DALI, Dynadimmer, LineSwitch, AmpDim

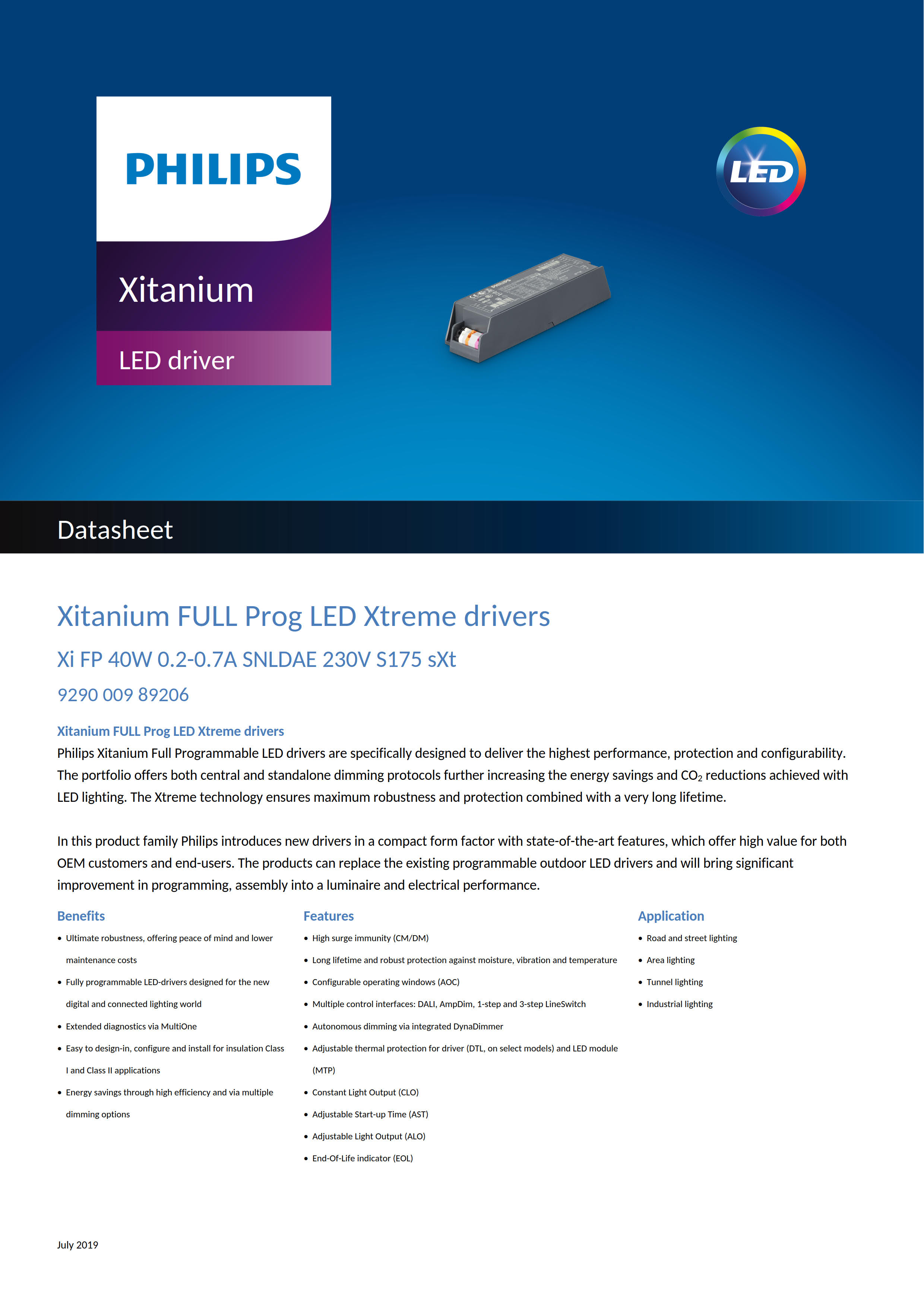

Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both. OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.


Benefits

• Ultimate robustness, offering peace of mind and lower maintenance costs

• Fully programmable LED-drivers designed for the new digital and connected lighting world

• Extended diagnostics via MultiOne

• Easy to design-in, configure and install for insulation Class I and Class II applications

• Energy savings through high efficiency and via multiple dimming options

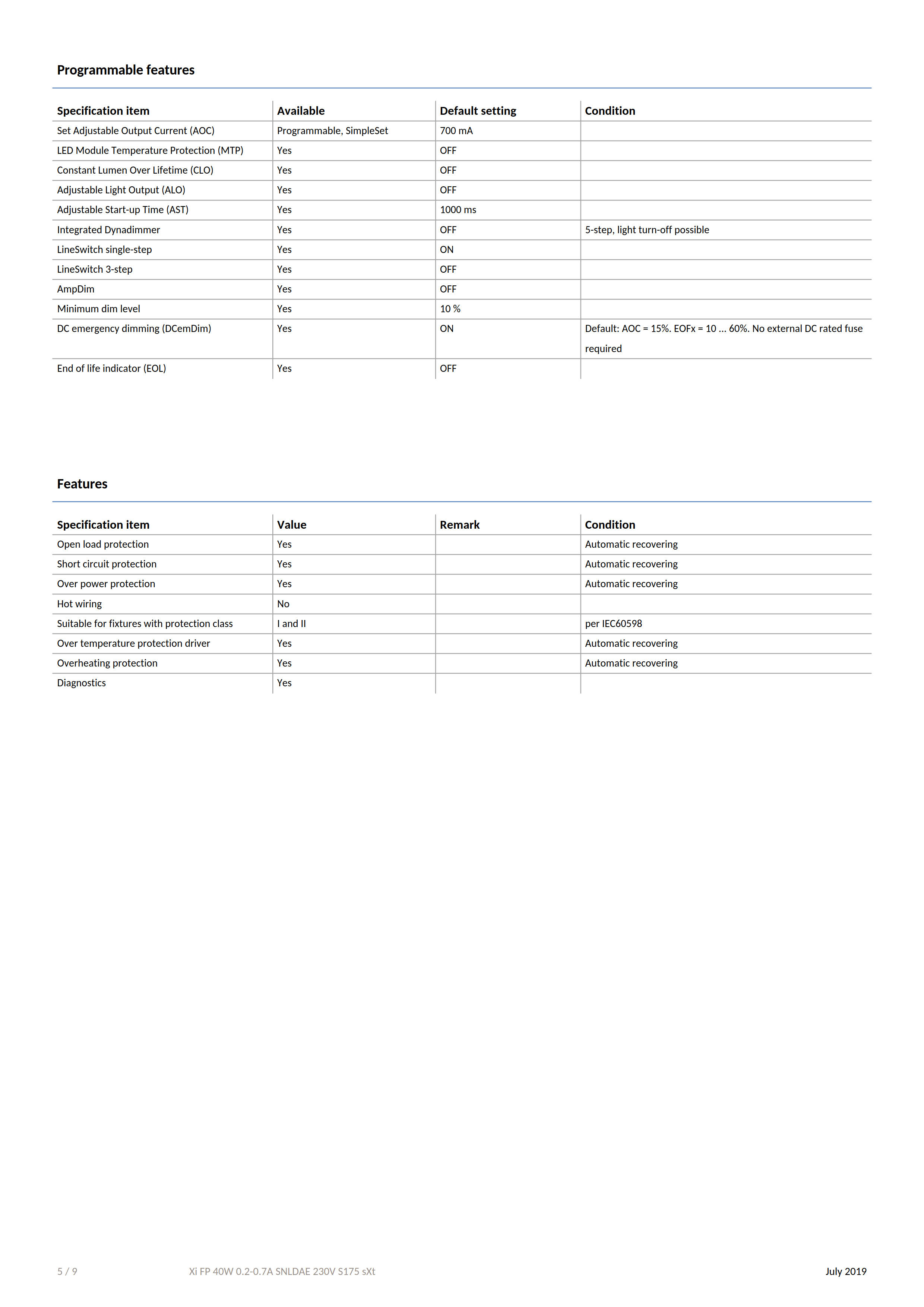

Features

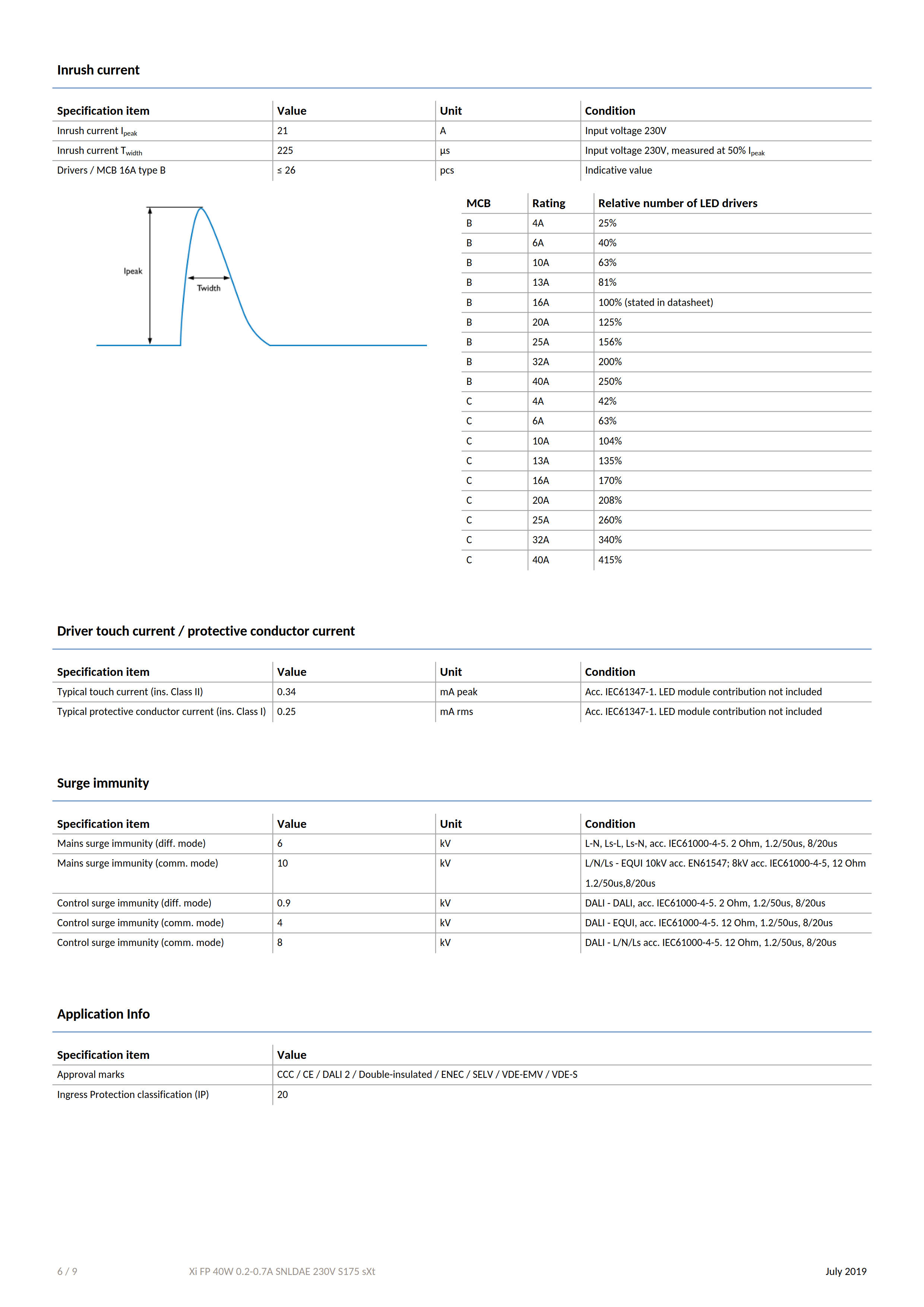

• High surge immunity (CM/DM)

• Long lifetime and robust protection against moisture, vibration and temperature

• Configurable operating windows (AOC)

• Multiple control interfaces: DALI, AmpDim, 1-step and 3-step LineSwitch

• Autonomous dimming via integrated DynaDimmer

• Adjustable thermal protection for driver (DTL, on select models) and LED module (MTP)

• Constant Light Output (CLO)

• Adjustable Start-up Time (AST)

• Adjustable Light Output (ALO)


Application

• Road and street lighting

• Area lighting

• Tunnel lighting

• Industrial lighting


PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

PHILIPS Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt 929000989206

 End-Of-Life indicator (EOL)


PHILIPS Product 12NC List

 929000989206 Xi FP 40W 0.2-0.7A SNLDAE 230V S175 sXt

 929000989306 Xi FP 40W 0.3-1.0A SNLDAE 230V S175 sXt

 929001518706 Xi FP 40W 0.3-1.0A SNLDAE 230V C123 sXt

 929001408506 Xi FP 75W 0.3-1.0A SNLDAE 230V C133 sXt

 929001644006 Xi FP 75W 0.2-0.7A SNLDAE 230V S240 G2

 929001639106 Xi FP 110W 0.3-1.0A SNLDAE 230V C133 sXt

 929001644206 Xi FP 150W 0.2-0.7A SNLDAE 230V S240 G2

 929001644306 Xi FP 150W 0.3-1.0A SNLDAE 230V S240 G2

 929002875006 Xi FP 165W 0.3-1.0A SNLDAE 230V C170 sXt
