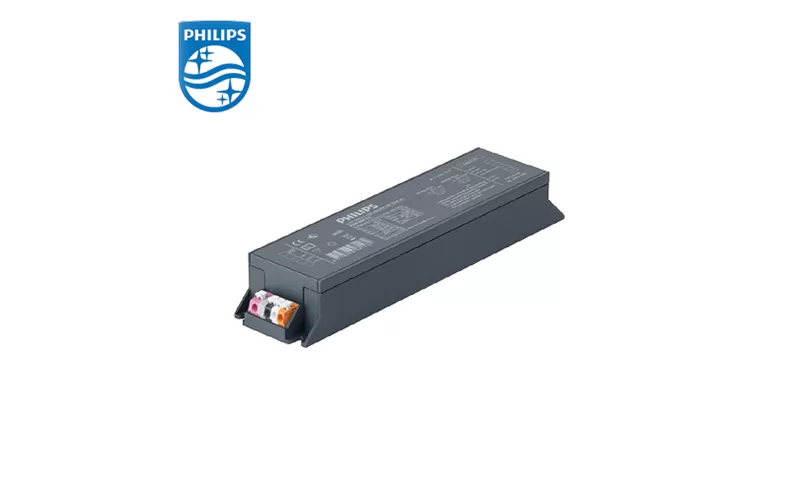

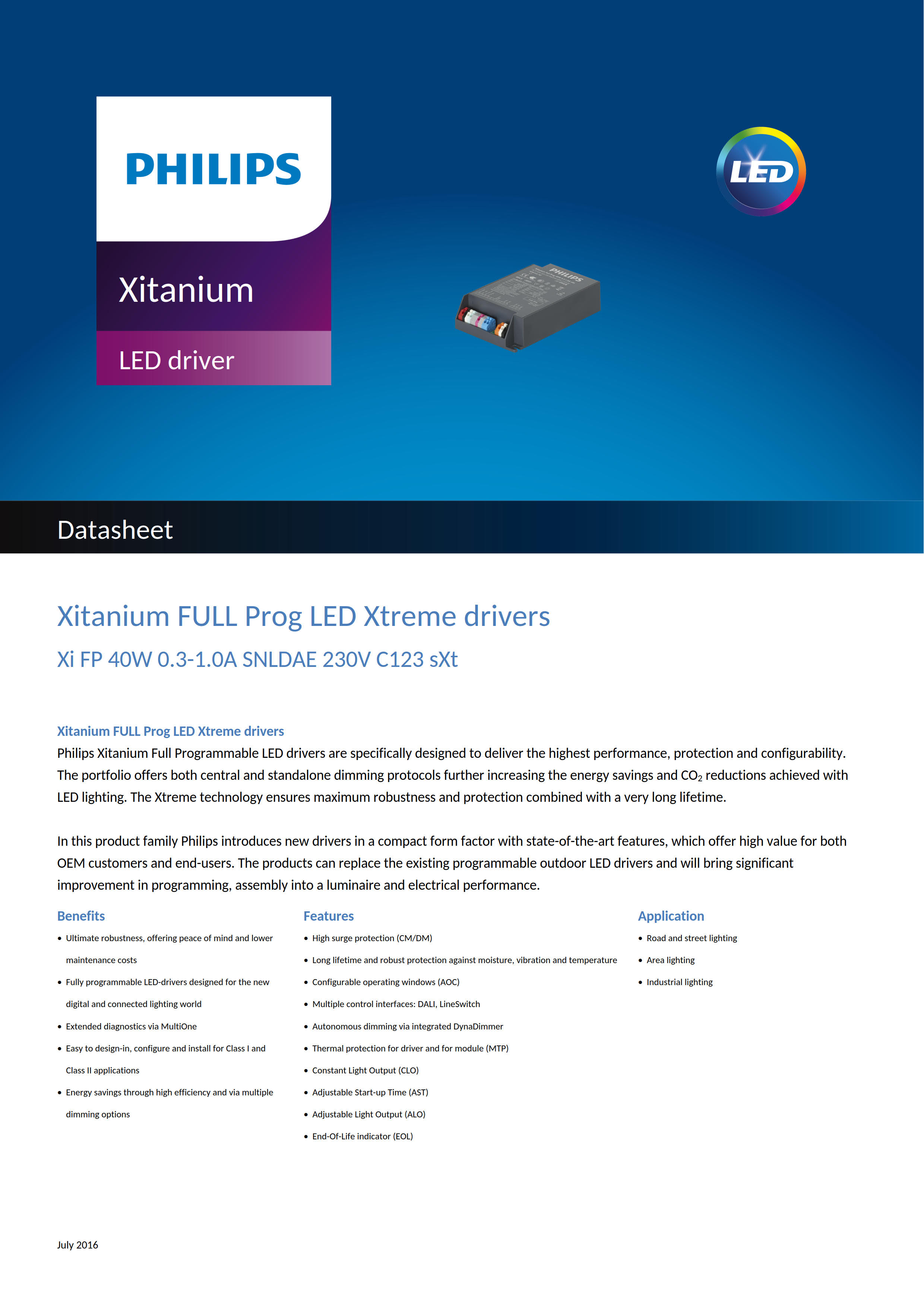

Model name:PHILIPS Xi FP 40W 0.3-1.0A SNLDAE 230V C123 sXt 929001518706
12NC:929001518706
Output voltage: 25 to 77 Vdc
Output current min dimming: 53 mA
Output power: 1.3 to 40 W
Driver lifetime: 100,000 hours
Control method: DALI, Dynadimmer, LineSwitch, AmpDim
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both. OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Fully programmable LED-drivers designed for the new digital and connected lighting world
• Extended diagnostics via MultiOne
• Easy to design-in, configure and install for insulation Class I and Class II applications
• Energy savings through high efficiency and via multiple dimming options
Features
• High surge immunity (CM/DM)
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• Multiple control interfaces: DALI, AmpDim, 1-step and 3-step LineSwitch
• Autonomous dimming via integrated DynaDimmer
• Adjustable thermal protection for driver (DTL, on select models) and LED module (MTP)
• Constant Light Output (CLO)
• Adjustable Start-up Time (AST)
• Adjustable Light Output (ALO)
Application
• Road and street lighting
• Area lighting
• Tunnel lighting
• Industrial lighting
