Product date:

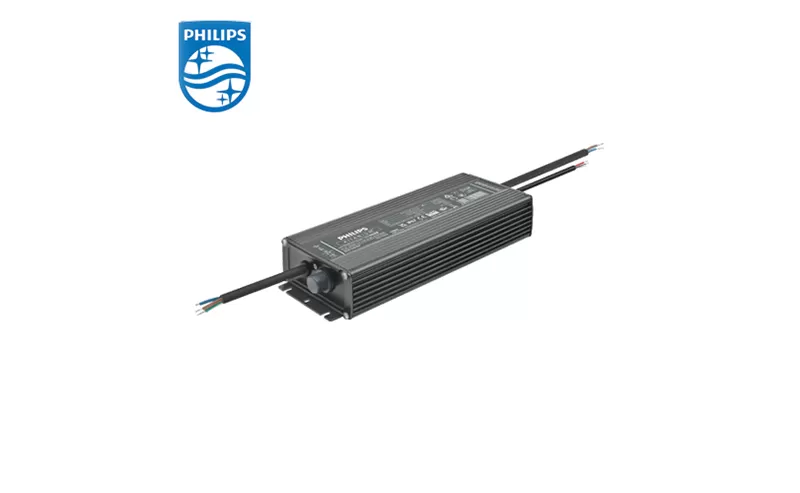

Model name:PHILIPS Xi LP 320W 0.7-2.1A S1 WL AUX I230 929002882780
12NC:929002882780

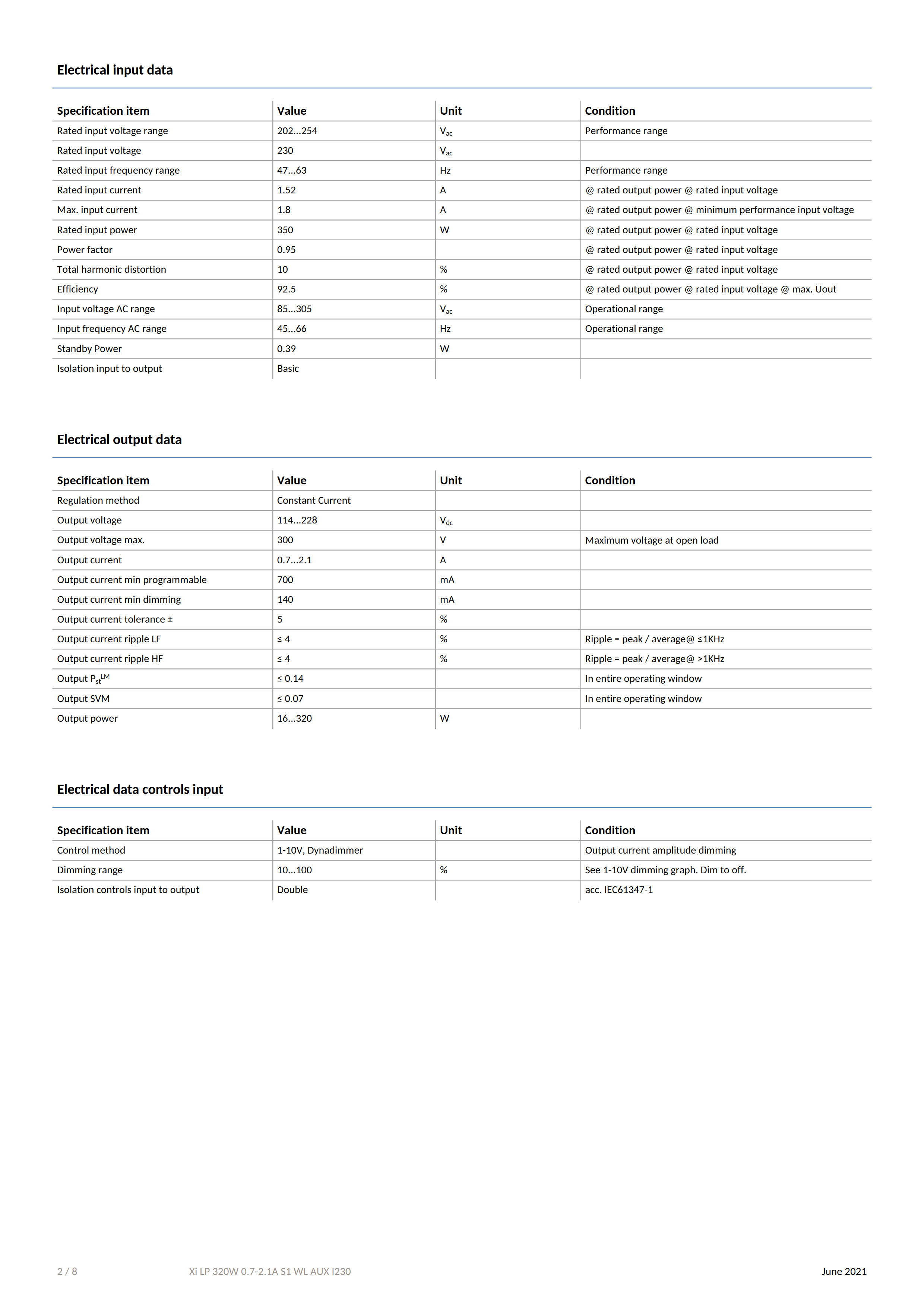

Output voltage: 114 to 228 Vdc
Output current: 0.7 to 2.1 A
Output power: 16 to 320 W
Pieces per box: 6

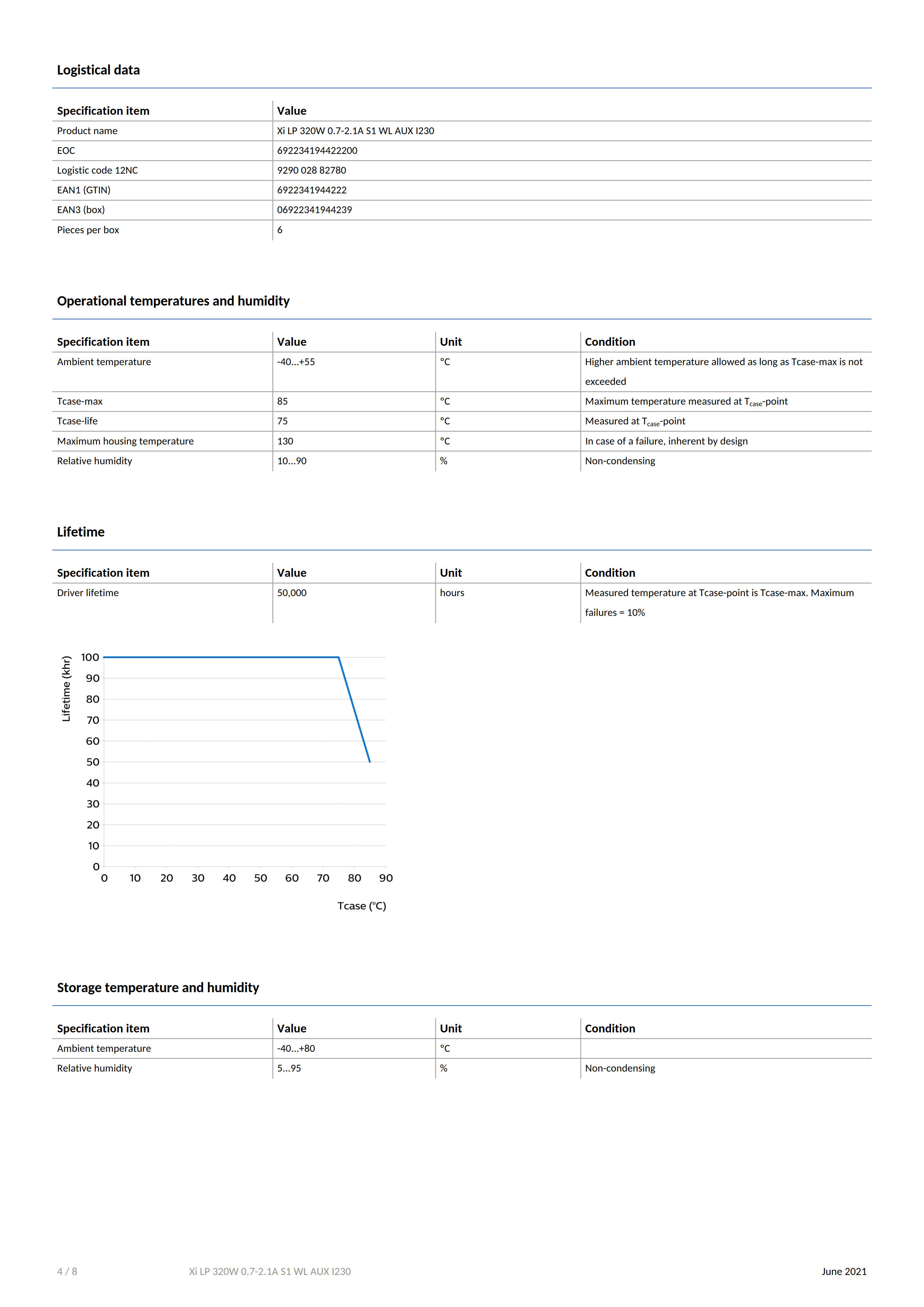

Driver lifetime: 50,000 hours

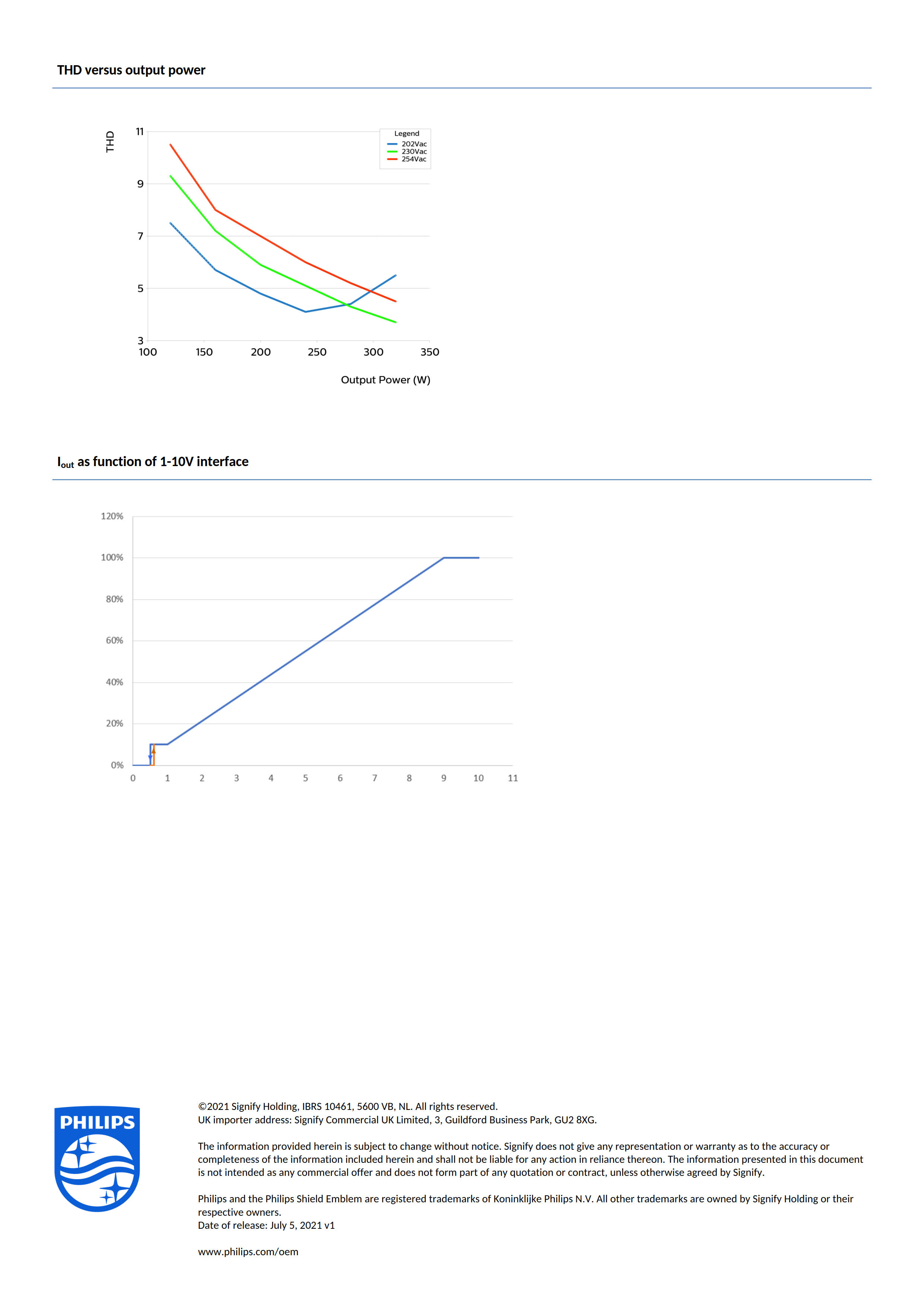

Control method: 1 -10V, Dynadimmer

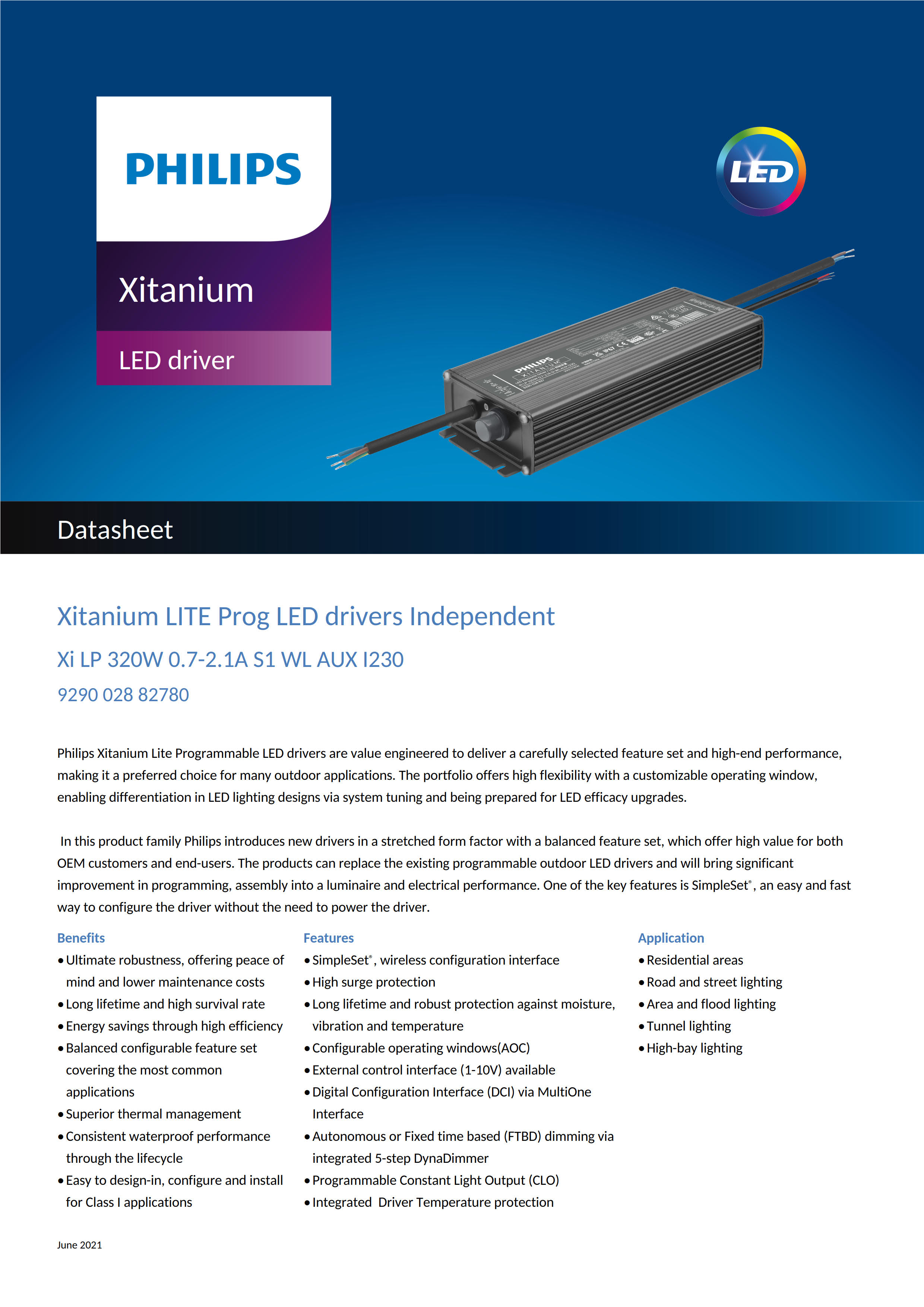

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Long lifetime and high survival rate
• Energy savings through high efficiency
• Balanced configurable feature set covering the most common applications
• Superior thermal management
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows(AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
