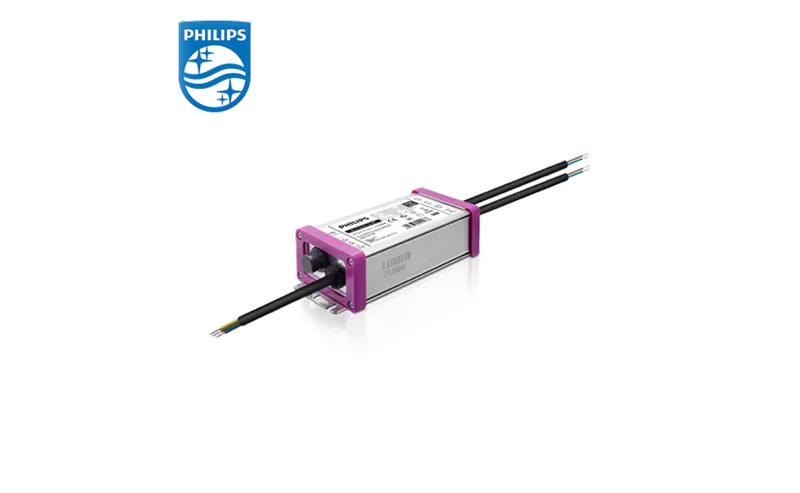

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

Product date

Model name:PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

12NC:929001473980

Output voltage: 31 to 93 Vdc

Output current: 0.07 to 1.05 A

Output power: 2.5 to 65 W

Driver lifetime: 50,000 hours

Control method: 1-10V


PRODUCT DATA

Product date

Model name:PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

12NC:929001473980

Output voltage: 31 to 93 Vdc

Output current: 0.07 to 1.05 A

Output power: 2.5 to 65 W

Driver lifetime: 50,000 hours

Control method: 1-10V


PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980


Benefits

• Ultimate robustness, offering peace of mind and lower maintenance costs

• Energy savings through high efficiency and via a choice of dimming options

• Balanced configurable feature set covering the most common applications

• Consistent waterproof performance through the lifecycle

• Easy to design-in, configure and install for Class I applications


Features

• SimpleSet®, wireless configuration interface

• High surge protection

• Long lifetime and robust protection against moisture, vibration and temperature

• Configurable operating windows (AOC)

• External control interface (1-10V) available

• Digital Configuration Interface (DCI) via MultiOne Interface

• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer

• Programmable Constant Light Output (CLO)

• Integrated Driver Temperature protection


Application

• Residential areas

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting

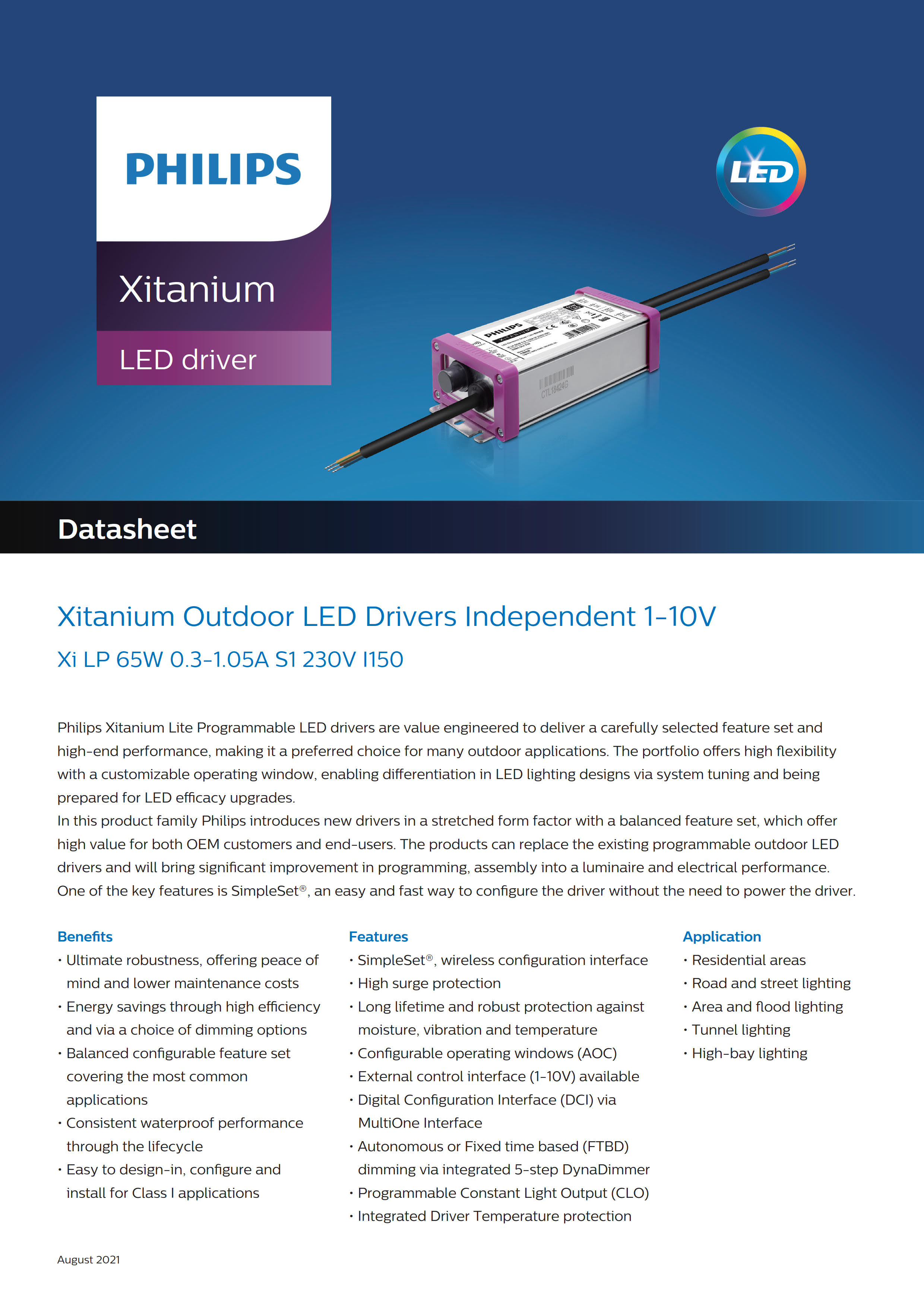

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980

PHILIPS Xi LP 65W 0.3-1.05A S1 230V I150 929001473980


PHILIPS Product 12NC List

12NC List:

929000940806  Xi LP 40W 0.3-1.0A S1 230V S175 sXT

929000963306 Xi LP 75W 0.3-1.0A S1 230V S240 sXT

929000962906  Xi LP 150W 0.3-1.0A S1 230V S240 sXT

929001473980  Xi LP 65W 0.3-1.05A S1 230V I150

929001407280 Xi LP 100W 0.3-1.05A S1 230V I175

929001407080  Xi LP 150W 0.3-1.05A S1 230V I175

929001424480 Xi LP 220W 0.3-1.05A S1 230V I230

929001424680  Xi LP 220W 0.5-1.5A S1 230V I230
