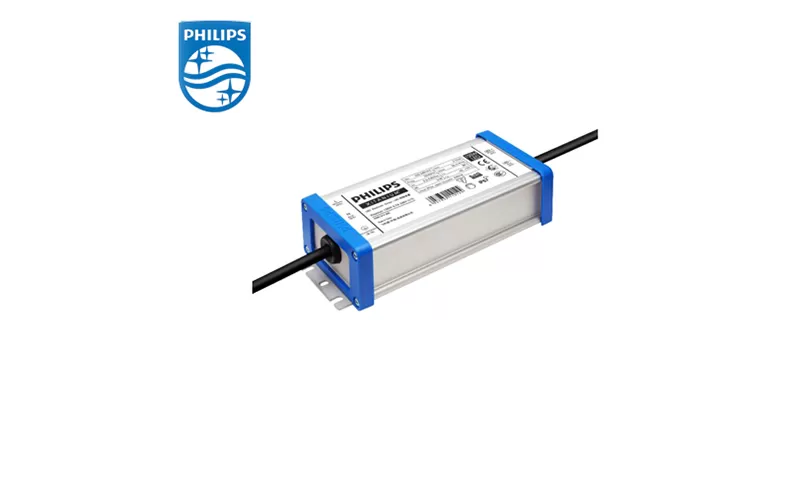

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

Product date

Model name:PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

12NC929001402680

Output voltage: 71 to 143 Vdc

Output current: 0.7 A

Output power: 100 W

Pieces per box: 10

Driver lifetime: 50,000 hours


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

12NC929001402680

Output voltage: 71 to 143 Vdc

Output current: 0.7 A

Output power: 100 W

Pieces per box: 10

Driver lifetime: 50,000 hours


PHILIPS Xitanium 100W 0.7A TWE I220 929001402680


Xitanium LED-based light sources are an excellent solution for outdoor environment. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and ecient LED Drivers. The new Philips Xitanium Fixed Output and Dimmable (1-10V) LED Outdoor Drivers are specically designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.



Benefits

• Ultimate robustness, offering peace of mind and lower maintenance costs

• Energy savings through high efficiency and via a choice of dimming options

• Balanced configurable feature set covering the most common applications

• Consistent waterproof performance through the lifecycle

• Easy to design-in, configure and install for Class I applications


Features

• SimpleSet®, wireless configuration interface

• High surge protection

• Long lifetime and robust protection against moisture, vibration and temperature

• Configurable operating windows (AOC)

• External control interface (1-10V) available

• Digital Configuration Interface (DCI) via MultiOne Interface

• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer

• Programmable Constant Light Output (CLO)

• Integrated Driver Temperature protection


Application

• Residential areas

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680

PHILIPS Xitanium 100W 0.7A TWE I220 929001402680


PHILIPS Product 12NC List

12NC List:

929000940806  Xi LP 40W 0.3-1.0A S1 230V S175 sXT

929000963306 Xi LP 75W 0.3-1.0A S1 230V S240 sXT

929000962906  Xi LP 150W 0.3-1.0A S1 230V S240 sXT

929001473980  Xi LP 65W 0.3-1.05A S1 230V I150

929001407280 Xi LP 100W 0.3-1.05A S1 230V I175

929001407080  Xi LP 150W 0.3-1.05A S1 230V I175

929001424480 Xi LP 220W 0.3-1.05A S1 230V I230

929001424680  Xi LP 220W 0.5-1.5A S1 230V I230
