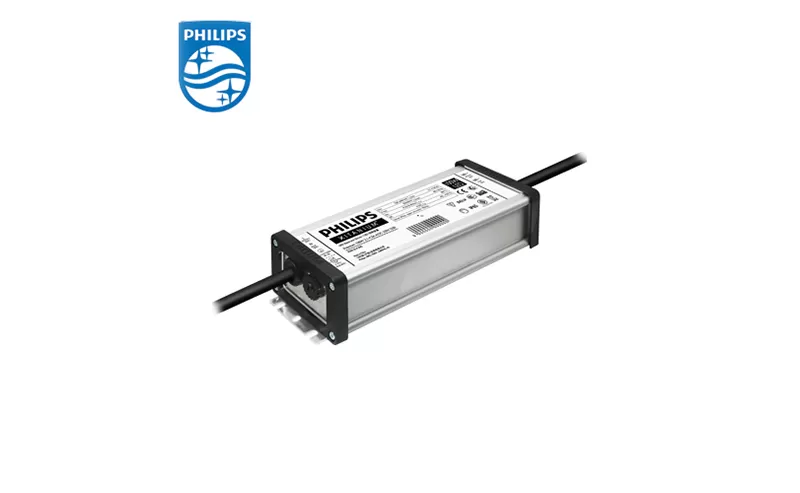

PHILIPS Xitanium 100W 2.1-4.2A AOC 230V I220 929001404580

Product date

Model name:PHILIPS Xitanium 100W 2.1-4.2A AOC 230V I220 929001404580

12NC:929001404580

Output voltage: 12 to 48 Vdc

Output current: 2.1 - 4.2 A

Output power: 100 W

Pieces per box: 10

Driver lifetime: 50,000 hours

Control method: Fixed

PHILIPS Xitanium 100W 2.1-4.2A AOC 230V I220 929001404580

Benefits

• Low voltage/high current output fits the application of LED strings connecting in parallel

• IP rated housing allows use in a non-fully sealed gearbox

• AOC (Adjustable Output Current) gives full flexibility to output different currents to spec-in different projects

• Easy adjustment of output current/voltage by only one screwdriver

Features

• Integrated surge immunity per IEC standard

• Outrush current limitation to protect module

• Adjustable output current with wide window

• Long lifetime at high Tc Max

Application

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• Highbay lighting

12NC List:

929002104380  Xitanium 65W 1.2-2.3A AOC 230V I150

929001404580 Xitanium 100W 2.1-4.2A AOC 230V I220

929001404480  Xitanium 150W 2.45-4.9A AOC 230V I220

929001404680 Xitanium 200W 2.8-5.6A AOC 230V I250

929002104480  Xitanium 240W 3.6-6.7A AOC 230V I240
