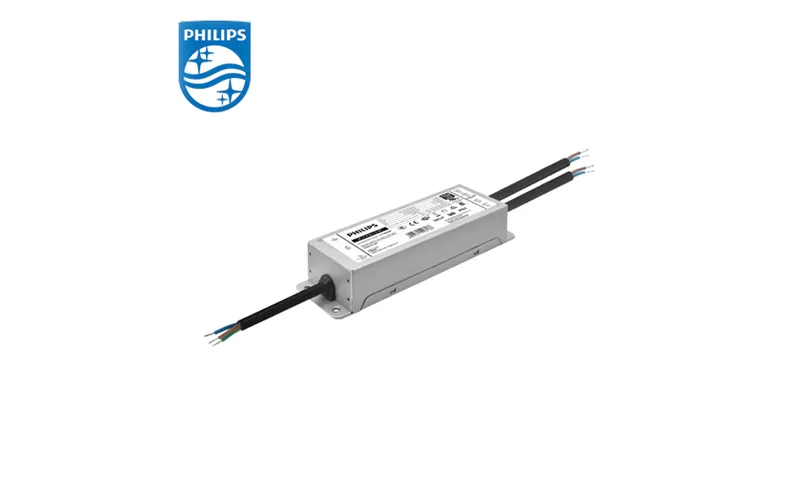

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

Product date

Model name:PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

12NC:929002832780

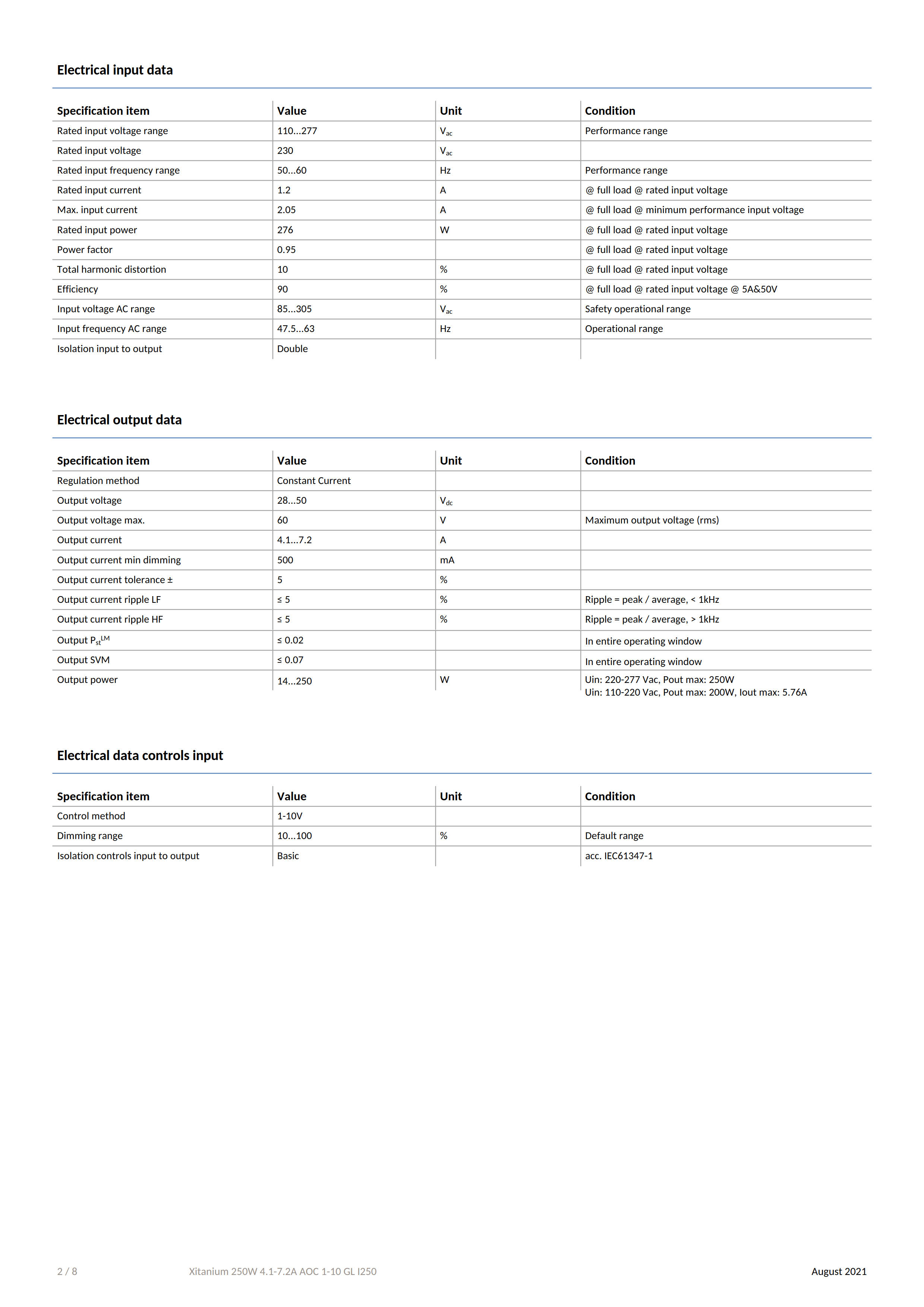

Output voltage: 28 to 50 Vdc

Output current: 4.1 to 7.2 A

Output power: 14 to 250 W

Pieces per box: 15

Driver lifetime: 50,000 hours

Control method: 1 -10V


PRODUCT DATA

Product date

Model name:PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

12NC:929002832780

Output voltage: 28 to 50 Vdc

Output current: 4.1 to 7.2 A

Output power: 14 to 250 W

Pieces per box: 15

Driver lifetime: 50,000 hours

Control method: 1 -10V


PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780


Benefits

• Wide output flexbility to operate a variety of low voltage LED board designs

• Peace of mind with robust IP rating and high surge protection

• Housing dimensions support seamless replacement of competitor products

• Reliable operation in any region of the world

• Long lifetime warranty


Features

• Low voltage/high current output

• 1-10V dimming capability

• Adjustable Output Current (AOC)

• Housing dimensions matching other competition

• Global mains capability


Application

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780

PHILIPS Xitanium 250W 4.1-7.2A AOC 1-10 GL I250 929002832780


PHILIPS Product 12NC List

12NC List:

929002832680 Xitanium 65W 0.9-2.2A AOC 1-10 GL I160

929002172780  Xitanium 100W 1.5-3.5A AOC 1-10 GL I180

929002199280  Xitanium 150W 2.2-5.1A AOC 1-10 GL I200

929002200280  Xitanium 200W 3.3-5.6A AOC 1-10 GL I220

929002871880 Xitanium 200W 4.5-6.7A AOC 1-10 GL I220

929002832780 Xitanium 250W 4.1-7.2A AOC 1-10 GL I250
