Product date
Model name:PHILIPS Xitanium 40W 0.7A TWE I160 929001408780
12NC:929001408780
Output voltage: 35 to 57 Vdc
Output current: 0.7 A
Output power: 24.5 to 40 W
Pieces per box: 10
Driver lifetime: 50,000 hours
Control method: Fixed
PRODUCT DATA
Product date
Model name:PHILIPS Xitanium 40W 0.7A TWE I160 929001408780
12NC:929001408780
Output voltage: 35 to 57 Vdc
Output current: 0.7 A
Output power: 24.5 to 40 W
Pieces per box: 10
Driver lifetime: 50,000 hours
Control method: Fixed

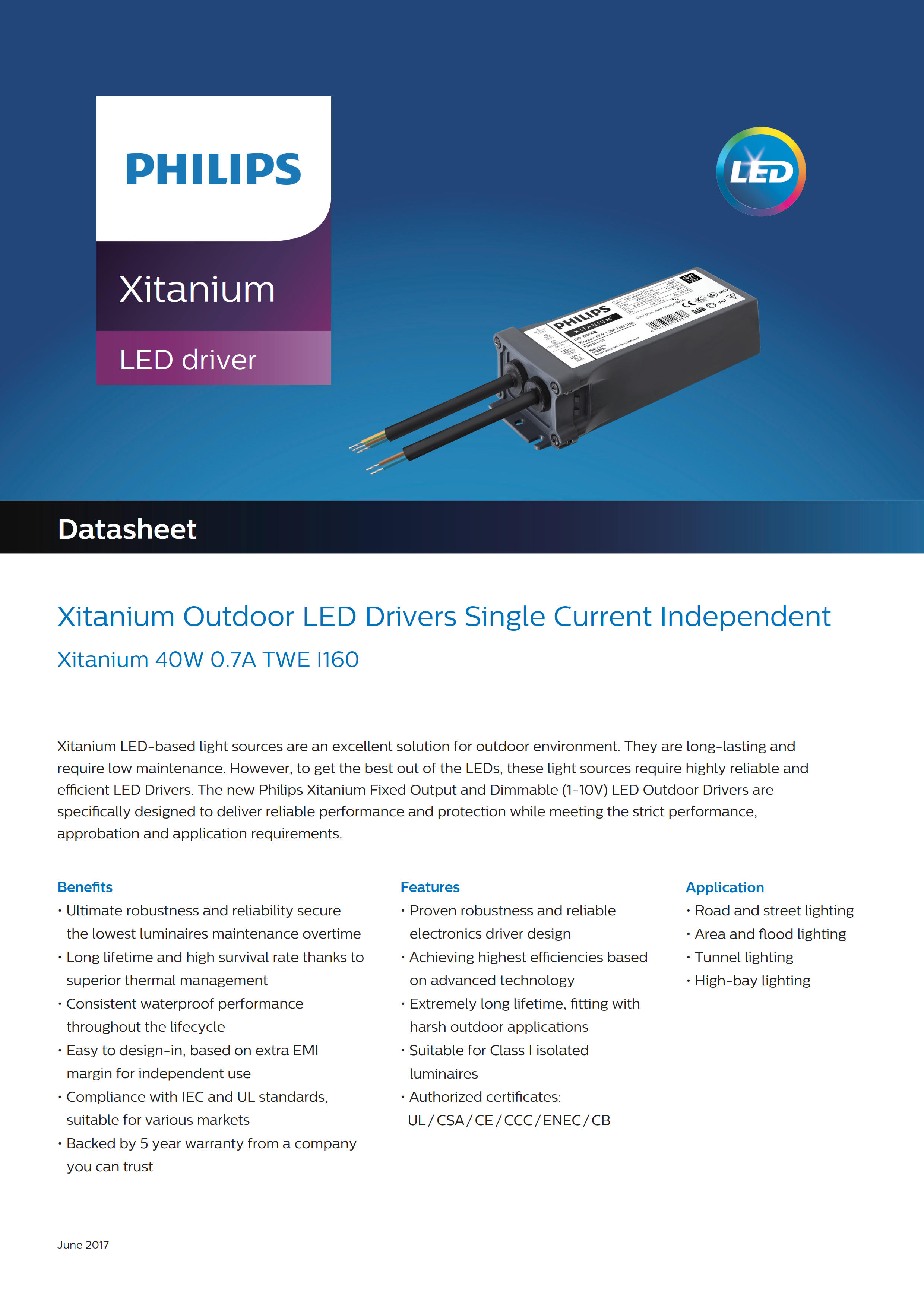

PHILIPS Xitanium 40W 0.7A TWE I160 929001408780
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Energy savings through high efficiency and via a choice of dimming options
• Balanced configurable feature set covering the most common applications
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
PHILIPS Product 12NC List
12NC List:
929000940806 Xi LP 40W 0.3-1.0A S1 230V S175 sXT
929000963306 Xi LP 75W 0.3-1.0A S1 230V S240 sXT
929000962906 Xi LP 150W 0.3-1.0A S1 230V S240 sXT
929001473980 Xi LP 65W 0.3-1.05A S1 230V I150
929001407280 Xi LP 100W 0.3-1.05A S1 230V I175
929001407080 Xi LP 150W 0.3-1.05A S1 230V I175
929001424480 Xi LP 220W 0.3-1.05A S1 230V I230
929001424680 Xi LP 220W 0.5-1.5A S1 230V I230
