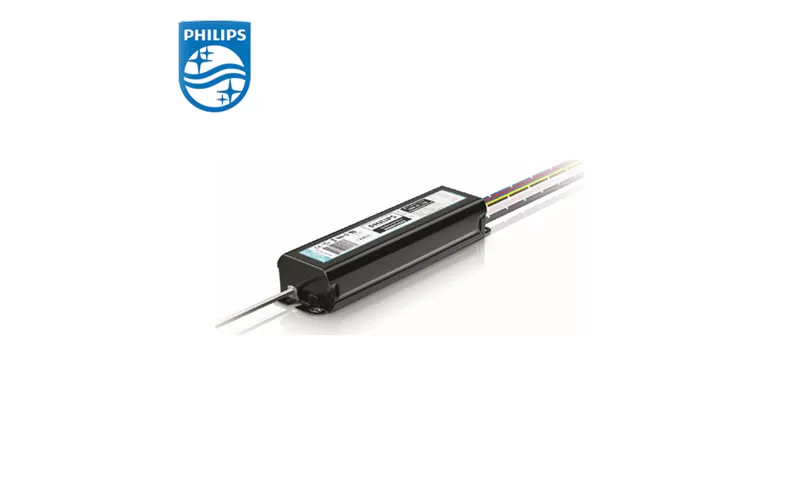

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

Product date:

Model name:PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

12NC:929000702302

Output voltage: 80 to 152 Vdc

Output current: 0.05 to 0.35 A

Output power: 4.5 to 75 W

Pieces per box: 10

Driver lifetime:100,000 hours

Control method: 1-10V, DALI, Dynadimmer



PRODUCT DATA

Product date:

Model name:PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

12NC:929000702302

Output voltage: 80 to 152 Vdc

Output current: 0.05 to 0.35 A

Output power: 4.5 to 75 W

Pieces per box: 10

Driver lifetime:100,000 hours

Control method: 1-10V, DALI, Dynadimmer


Xitanium LITE Prog LED Xtreme drivers Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in both compact as well as stretched form factors with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.


Benefits

•Ultimate robustness, offering peace of mind and lower maintenance costs

•Balanced configurable feature set covering the most common applications

• Easy to design-in and install for Insulation Class I and Class II applications

• Energy savings through high efficiency and via a choice of dimming options


Features

• SimpleSet®, wireless configuration interface

• High surge immunity

• Long lifetime and robust protection against moisture, vibration and temperature

•Configurable operating windows (AOC)

• External control interface 1-10V or LineSwitch

•Autonomous dimming via integrated Dynadimmer or Dynadimmer LITE

•Adjustable thermal protection for driver (DTL, select models)

•Adjustable thermal protection for LED module (MTP, select models)

• Simplified linear version of Constant Light Output (CLO LITE)

•DC input voltage operation (select models)


Application

•Road and street lighting

•Area lighting

• Tunnel lighting

• Industrial lighting


PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302

PHILIPS Xitanium 75W 0.35-0.70A GL Prog sXt 929000702302


PHILIPS Product 12NC List

929000963306 Xi LP 75W 0.3-1.0A S1 230V S240 sXt

929001654806 Xi LP 75W 0.3-1.0A S1 230V C133 sXt

929001655106 Xi LP 110W 0.3-1.0A S1 230V C133 sXt

929000962906 Xi LP 150W 0.3-1.0A S1 230V S240 sXt
