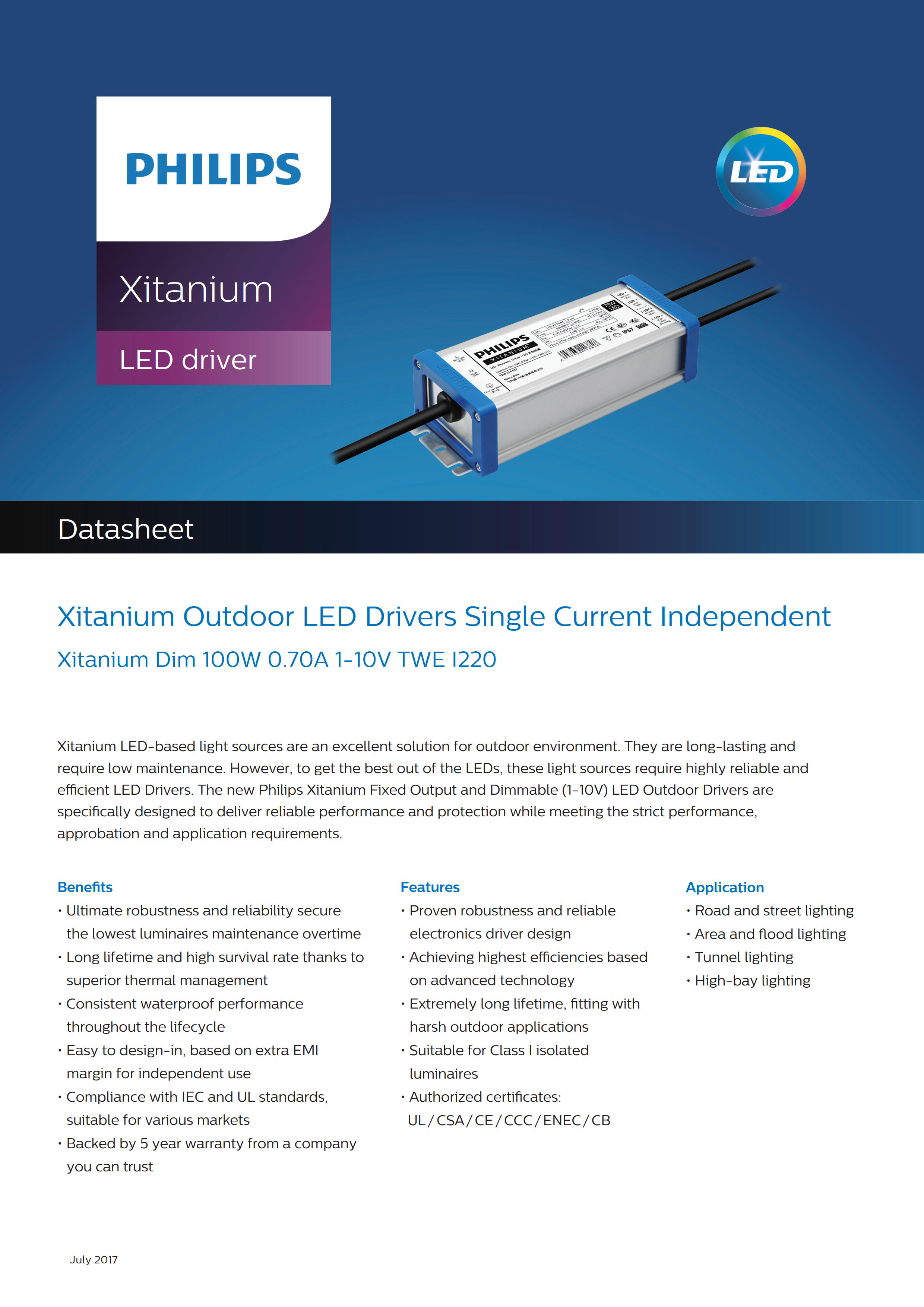

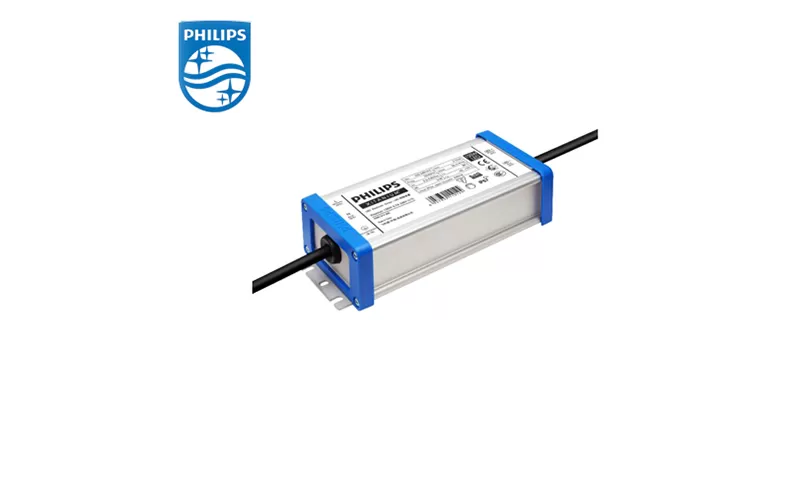

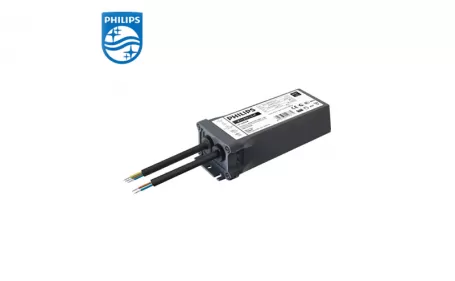

PHILIPS Xitanium Dim 100W 0.7A 1-10 TWE I220 929001402880

Product date

Model name:PHILIPS Xitanium Dim 100W 0.7A 1-10 TWE I220 929001402880

12NC:929001402880

Output voltage: 71 to 143 Vdc

Output current: 0.7 A

Output power: 100 W

Pieces per box: 10

Driver lifetime: 50,000 hours

Control method: 1-10 V

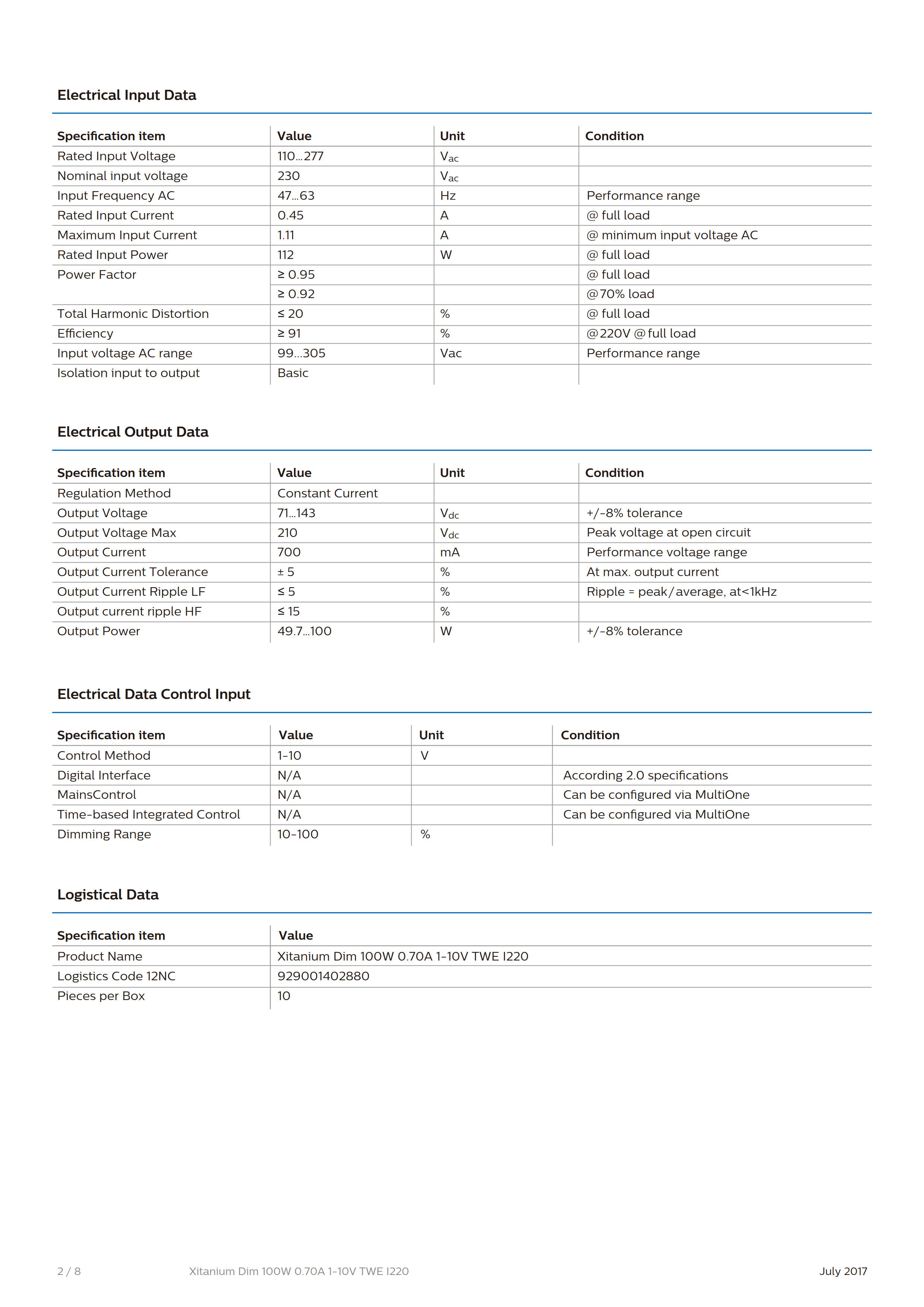

PRODUCT DATA

Product date

Model name:PHILIPS Xitanium Dim 100W 0.7A 1-10 TWE I220 929001402880

12NC:929001402880

Output voltage: 71 to 143 Vdc

Output current: 0.7 A

Output power: 100 W

Pieces per box: 10

Driver lifetime: 50,000 hours

Control method: 1-10 V


PHILIPS Xitanium Dim 100W 0.7A 1-10 TWE I220 929001402880


Benefits

• Ultimate robustness, offering peace of mind and lower maintenance costs

• Energy savings through high efficiency and via a choice of dimming options

• Balanced configurable feature set covering the most common applications

• Consistent waterproof performance through the lifecycle

• Easy to design-in, configure and install for Class I applications


Features

• SimpleSet®, wireless configuration interface

• High surge protection

• Long lifetime and robust protection against moisture, vibration and temperature

• Configurable operating windows (AOC)

• External control interface (1-10V) available

• Digital Configuration Interface (DCI) via MultiOne Interface

• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer

• Programmable Constant Light Output (CLO)

• Integrated Driver Temperature protection


Application

• Residential areas

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting
