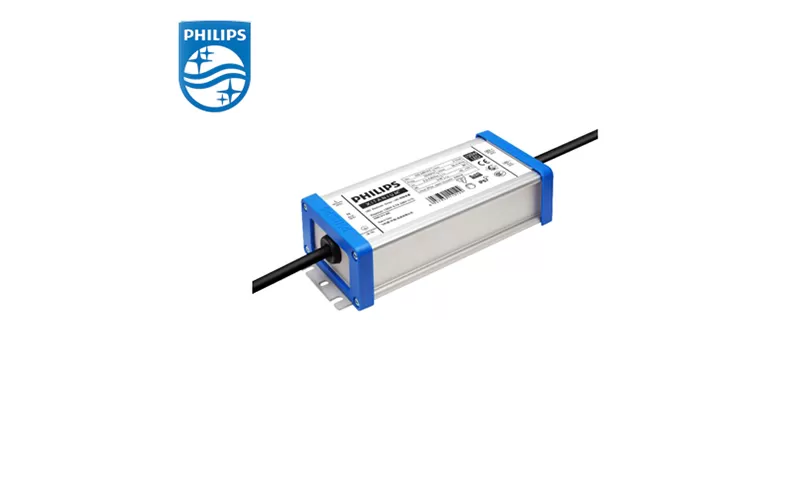

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

Product date

Model name:PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

12NC:929001402780

Output voltage: 40 to 117 Vdc

Output current: 0.7 A

Output power: 75 W

Pieces per box: 10

Driver lifetime: 50,000 hours

Control method: 1-10 V


PRODUCT DATA

Product date

Model name: PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

12NC: 929001402780

Output voltage: 40 to 117 Vdc

Output current: 0.7 A

Output power: 75 W

Pieces per box: 10

Driver lifetime: 50,000 hours

Control method: 1-10 V


PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

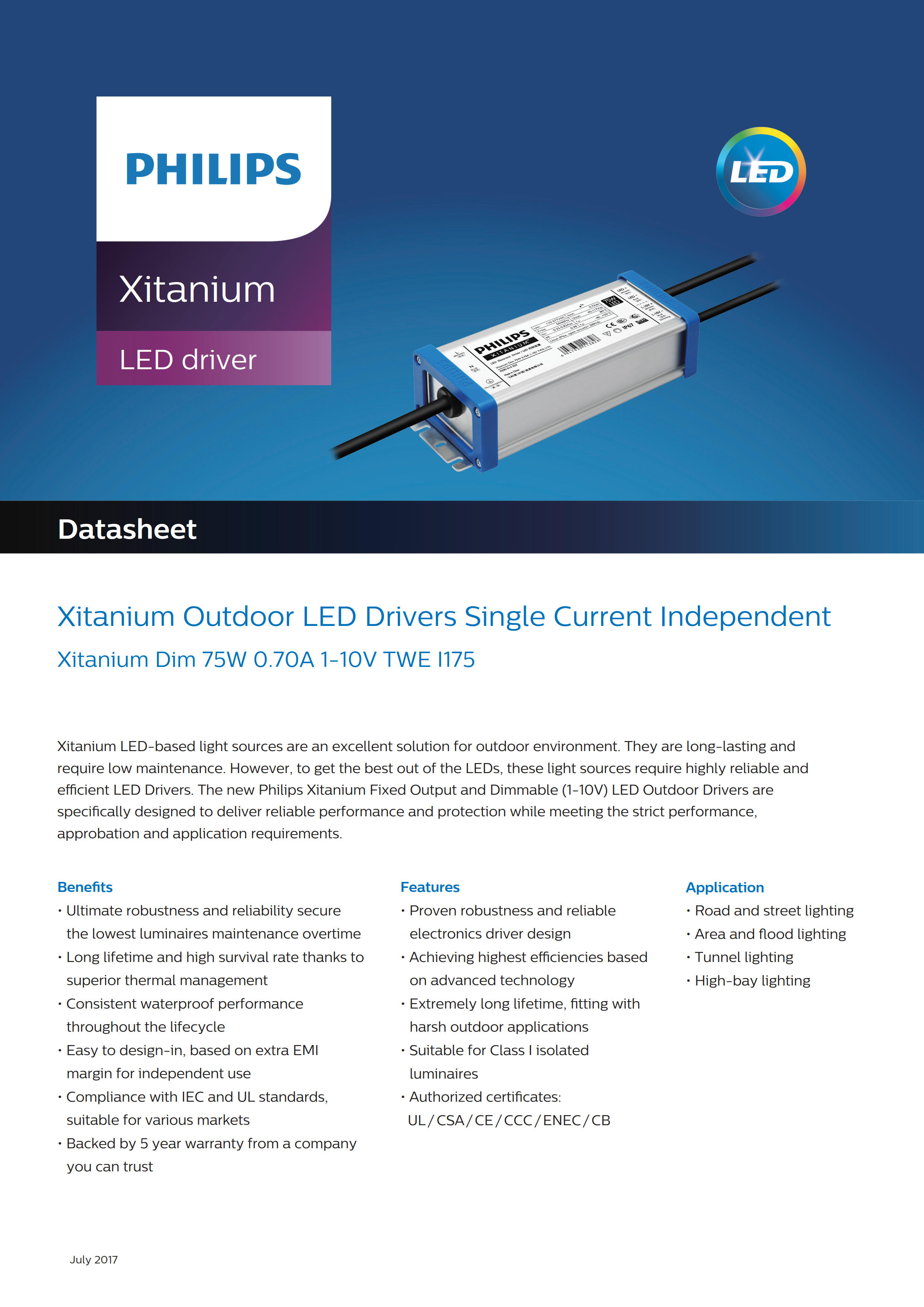

PHILIPS Xitanium LED Driver 75W Benefits

• Ultimate robustness and reliability secure the lowest luminaires maintenance overtime

• Long lifetime and high survival rate thanks to superior thermal management

• Consistent waterproof performance throughout the lifecycle

• Easy to design-in, based on extra EMI margin for independent use

• Compliance with IEC and UL standards, PHILIPS Outdoor Driver is suitable for various markets

• Backed by 5 year warranty from BMT Lighting you can trust


PHILIPS Xitanium LED Driver 75W Features

• Proven robustness and reliable electronics driver design

• Achieving highest efficiencies based on advanced technology

• Extremely long lifetime, fitting with harsh outdoor applications

• Suitable for Class I isolated luminaires

• Authorized certificates: UL /CSA/CE /CCC/ENEC/CB


PHILIPS Xitanium LED Driver Application

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780

PHILIPS Xitanium Dim 75W 0.7A 1-10 TWE I175 929001402780


PHILIPS Product 12NC List

12NC List:

929000940806  Xi LP 40W 0.3-1.0A S1 230V S175 sXT

929000963306 Xi LP 75W 0.3-1.0A S1 230V S240 sXT

929000962906  Xi LP 150W 0.3-1.0A S1 230V S240 sXT

929001473980  Xi LP 65W 0.3-1.05A S1 230V I150

929001407280 Xi LP 100W 0.3-1.05A S1 230V I175

929001407080  Xi LP 150W 0.3-1.05A S1 230V I175

929001424480 Xi LP 220W 0.3-1.05A S1 230V I230

929001424680  Xi LP 220W 0.5-1.5A S1 230V I230
