PHILIPS Xitanium LED Xtreme drivers Xi SR 110W 0.3-1.0A SNEMP 230V C150 sXt 929002808706

Product date

PHILIPS Xitanium LED Xtreme drivers Xi SR 110W 0.3-1.0A SNEMP 230V C150 sXt 929002808706

12NC:929002808706

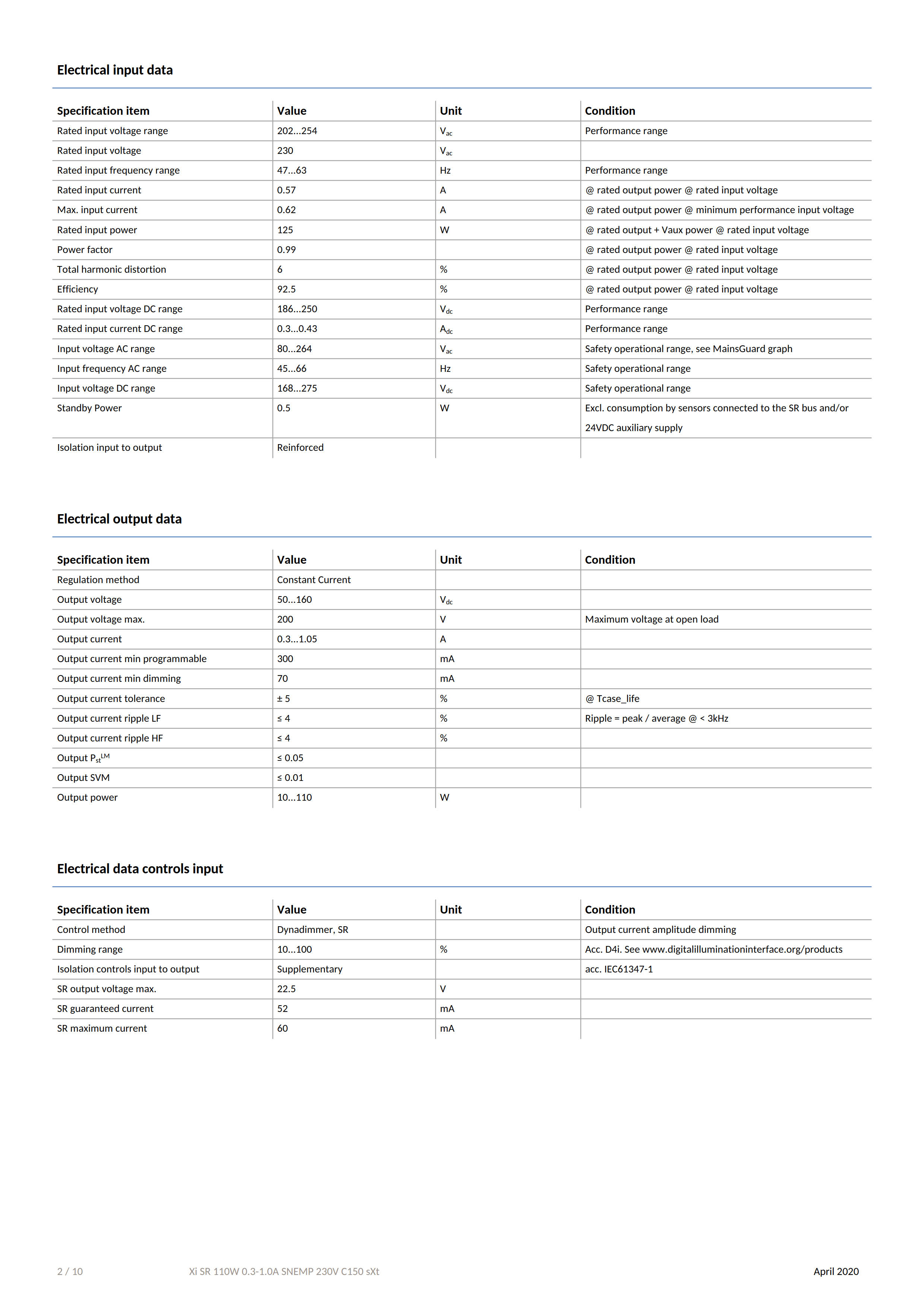

Operating and ElectricalOutput Current Ripple (Max) 4 %

Output Voltage (Max) 160 V

Maximum Efficiency at Full Load 91 %

Open Circuit Voltage (DC) (Max) 200 V

Output Power (Min) 10 W

Energy Metering Yes

Output Power (Max) 110 W

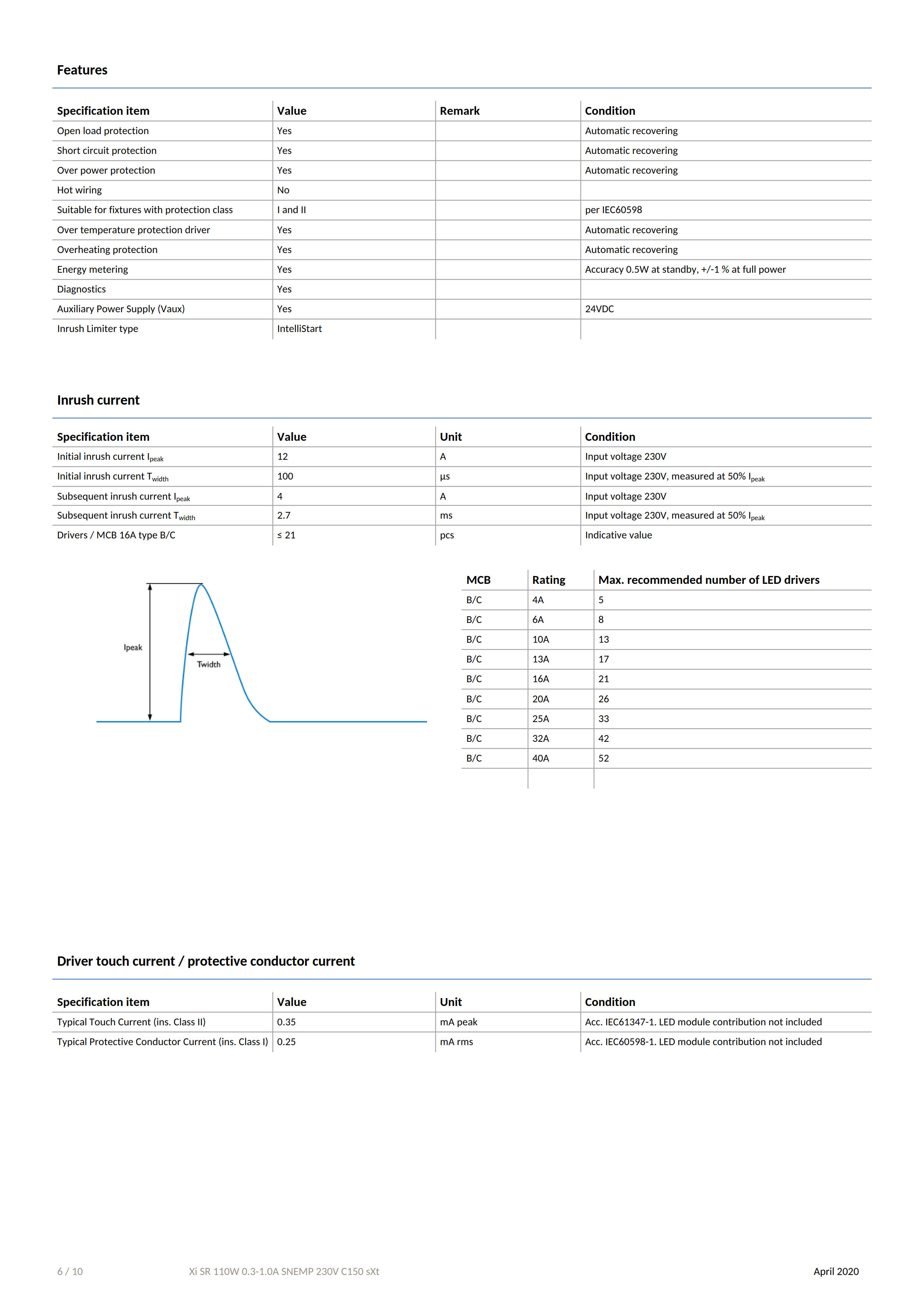

Inrush Current Width to 50% of Peak 2,700 µs

Output Current (Min) 300 mA

Diagnostics True

Output Voltage (Min) 50 V

Output Current (Max) 1050 mA

Inrush Current Peak (Max) 4 A


PRODUCT DATA

Product date

PHILIPS Xitanium LED Xtreme drivers Xi SR 110W 0.3-1.0A SNEMP 230V C150 sXt 929002808706

12NC:929002808706

Operating and ElectricalOutput Current Ripple (Max) 4 %

Output Voltage (Max) 160 V

Maximum Efficiency at Full Load 91 %

Open Circuit Voltage (DC) (Max) 200 V

Output Power (Min) 10 W

Energy Metering Yes

Output Power (Max) 110 W

Inrush Current Width to 50% of Peak 2,700 µs

Output Current (Min) 300 mA

Diagnostics True

Output Voltage (Min) 50 V

Output Current (Max) 1050 mA

Inrush Current Peak (Max) 4 A

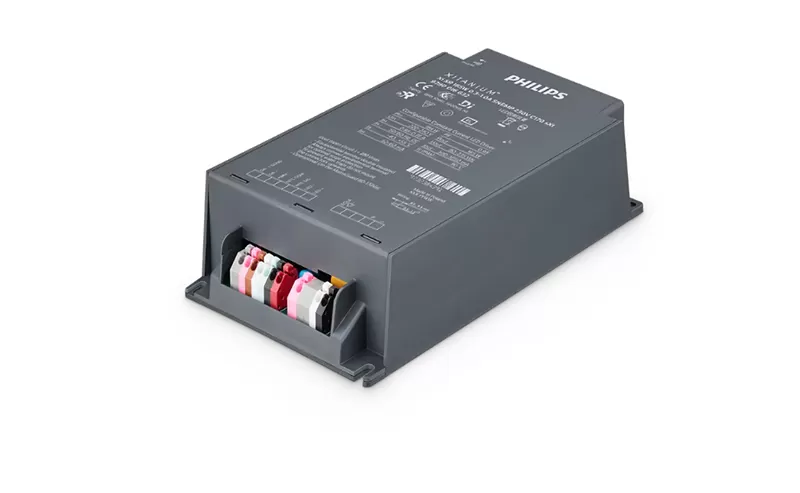

Xitanium LED Xtreme drivers – Sensor Ready

Xi SR 110W 0.3-1.0A SNEMP 230V C150 sXt 9290 028 08706

Simplifying connectivity solutions with sensors and controls Philips LED Xtreme Sensor Ready drivers are ideal for use with sensors applied in outdoor and industrial management systems. With its dual integrated power supplies it is easy to power sensors and wireless modules directly from the driver. The driver also features integrated energy metering related to these management systems from the SR Certified partner program. This program with key management and sensor vendors ensures that certified sensors and controllers work seamlessly with the Xitanium SR driver

Benefits

• Sensor Ready concept, ideal for use with sensors applied in outdoor and industrial management systems

•Dual integrated power supplies to power sensors and wireless radios directly from the driver, open spec for all OEMs, simplifying integration of sensors into the luminaire

• 75 & 110W C150 versions: low inrush current, enabling high amount of drivers per MCB

•High-accuracy integrated power metering

Features

• Integrated ~15VDC DA current source power supply based on DALI 2.0

• Integrated 24VDC/3W auxiliary power supply

• Highly accurate power metering, accessible over DALI

• SimpleSet®, wireless configuration interface •High surge immunity (CM/DM)

• Long lifetime and robust protection against moisture, vibration and temperature

•Configurable operating windows (AOC)

•Autonomous dimming via Integrated DynaDimmer

• Suitable for central DC operation (DCemDim)

• Thermal protection for driver and for module (MTP)

•Constant Light Output (CLO)

•Adjustable Start-up Time (AST)

•Adjustable Light Output (ALO)

Application

•Road and street lighting

• Area lighting

• Industrial lighting

• Tunnel lighting

• End-Of-Life indicator (EOL) •OEM Write Protection (OWP)
