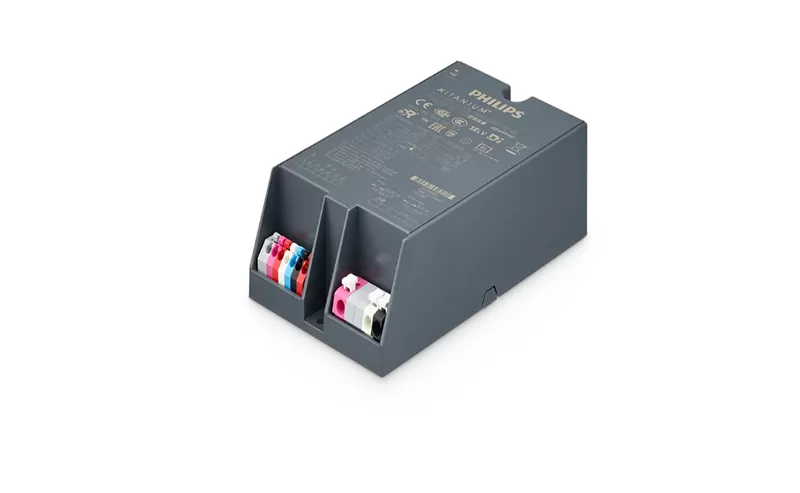

PHILIPS Xitanium LED Xtreme drivers Xi SR 22W 0.3-1.0A SNEMP 230V C133 sXt 929001573706

Product date

PHILIPS Xitanium LED Xtreme drivers Xi SR 22W 0.3-1.0A SNEMP 230V C133 sXt 929001573706

12NC:929001573706

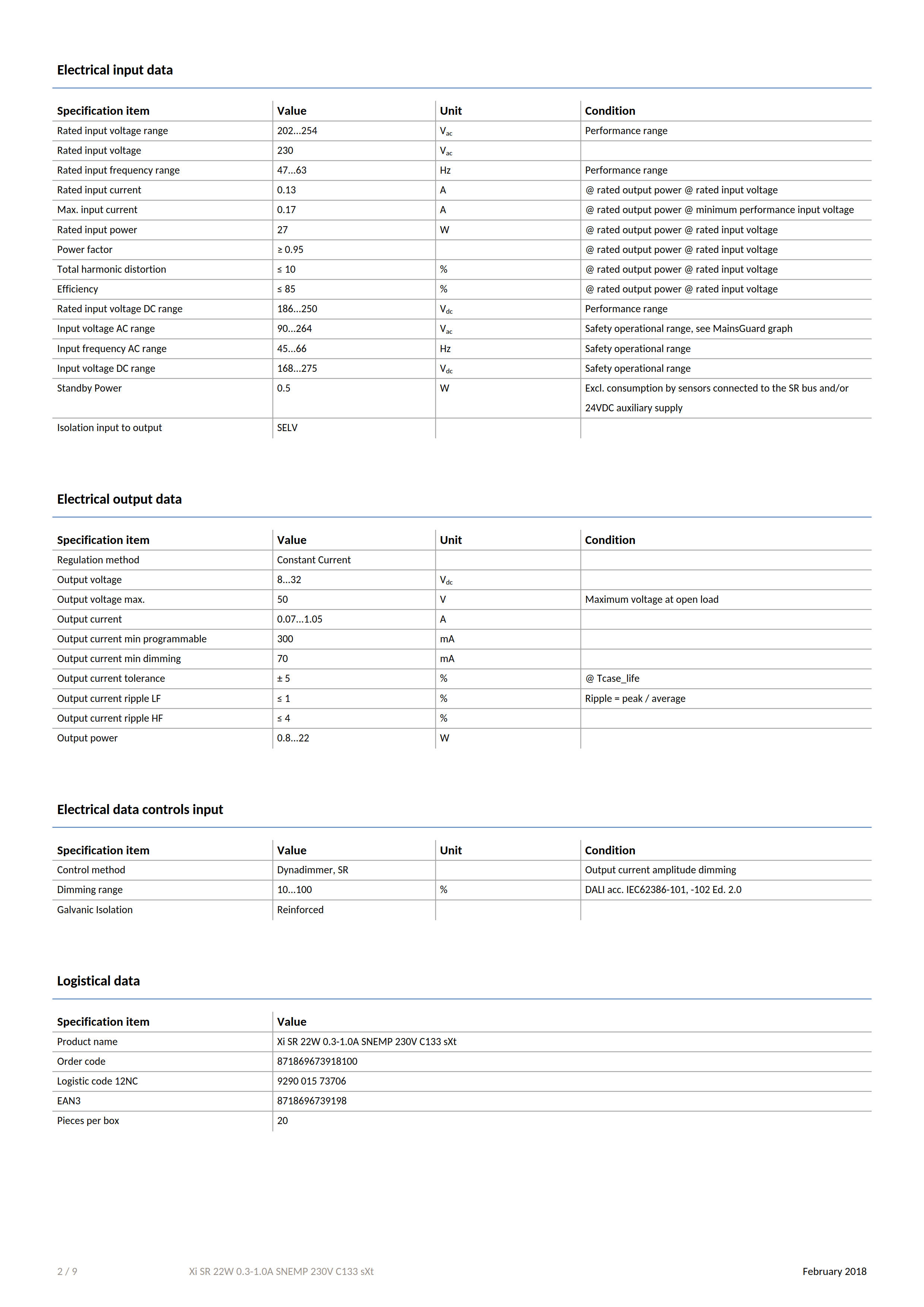

Operating and ElectricalOutput Voltage (Max) 32 V

Output Current Ripple (Max) 4 %

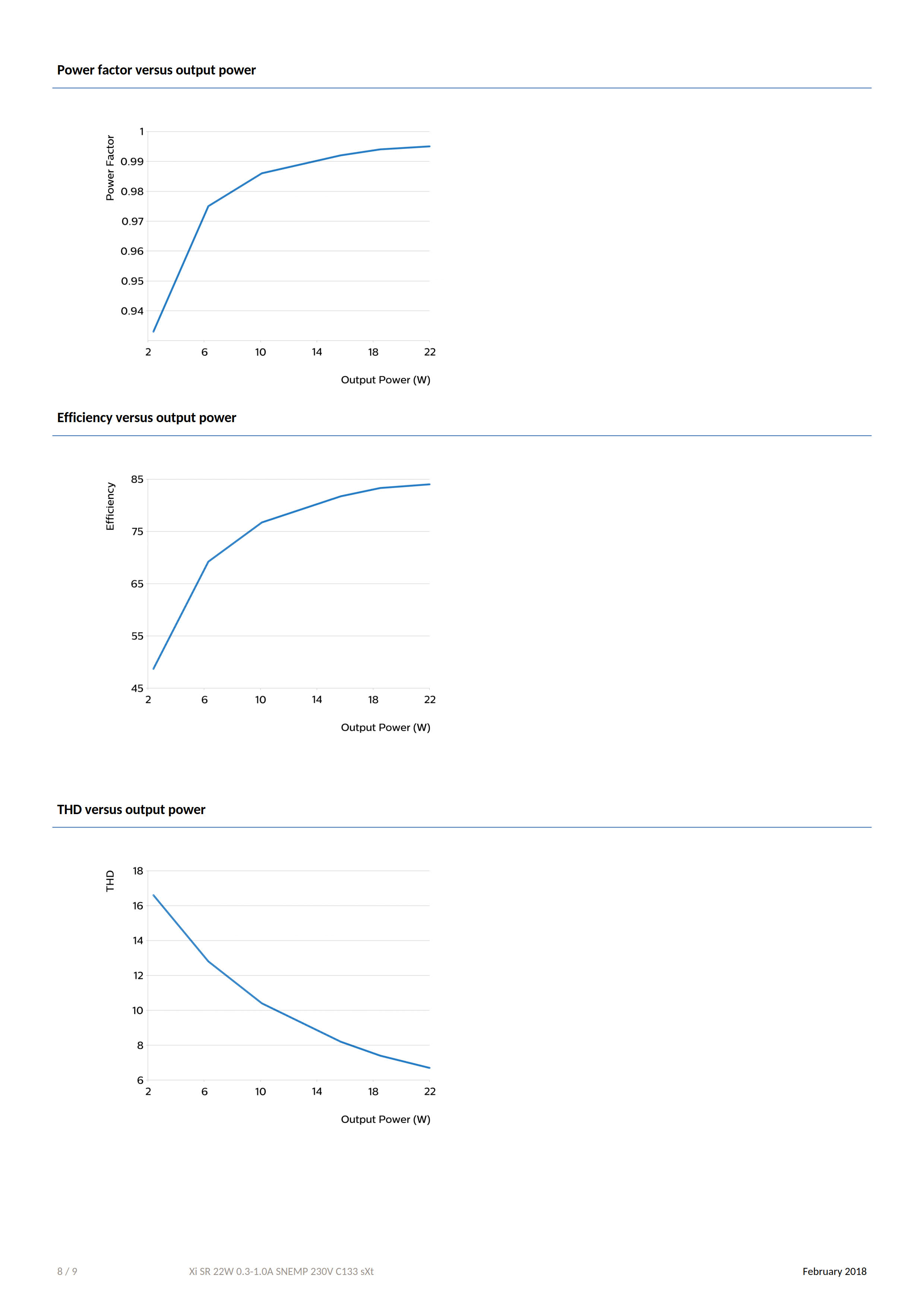

Maximum Efficiency at Full Load 84 %

Open Circuit Voltage (DC) (Max) 50 V

Output Power (Min) 0.8 W

Energy Metering Yes

Output Power (Max) 22 W

Output Voltage (Min) 8 V

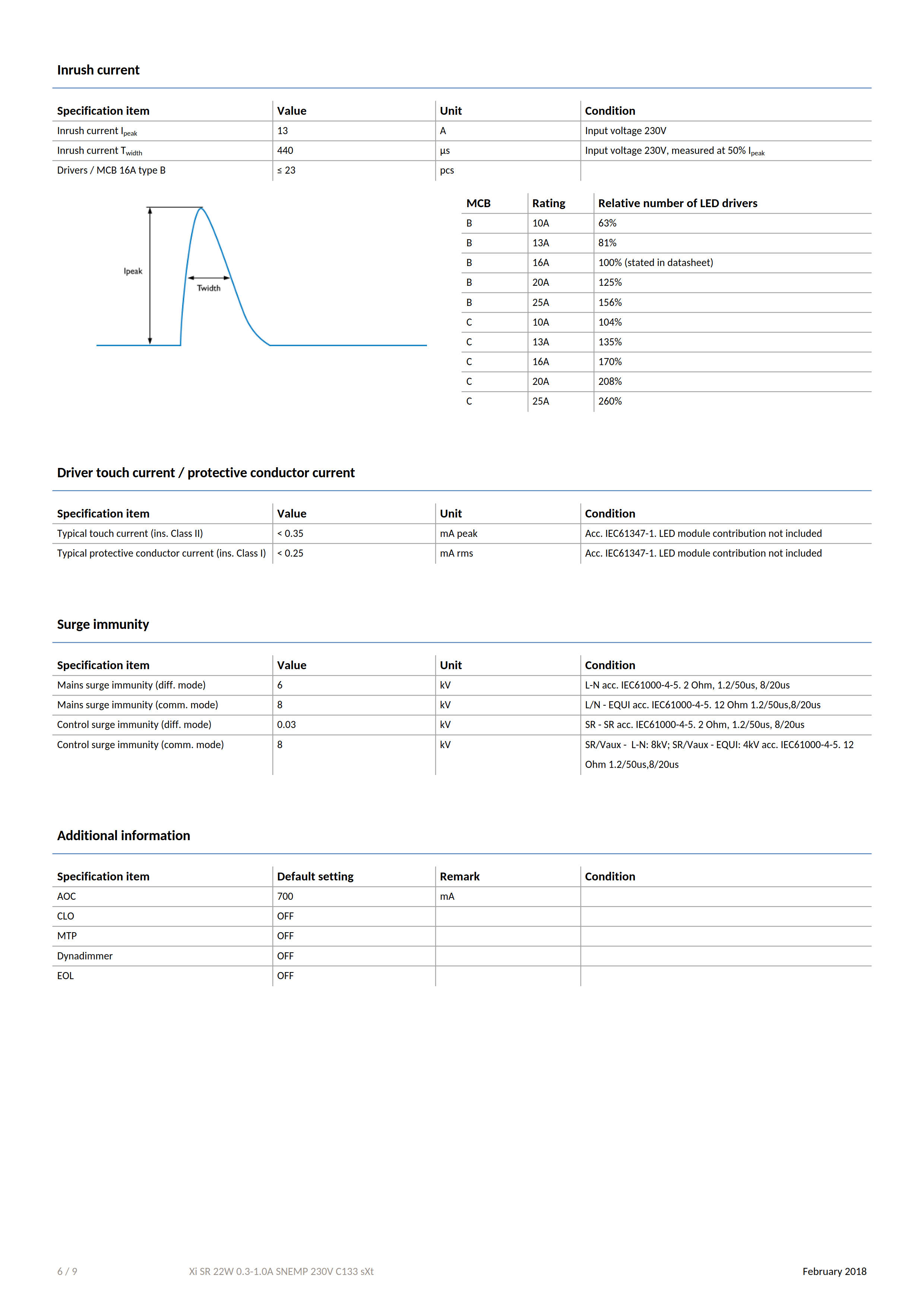

Inrush Current Width to 50% of Peak 320 µs

Diagnostics True

Output Current (Min) 70 mA

Output Current (Max) 1050 mA

Inrush Current Peak (Max) 18 A


PRODUCT DATA

Product date

PHILIPS Xitanium LED Xtreme drivers Xi SR 22W 0.3-1.0A SNEMP 230V C133 sXt 929001573706

12NC:929001573706

Operating and ElectricalOutput Voltage (Max) 32 V

Output Current Ripple (Max) 4 %

Maximum Efficiency at Full Load 84 %

Open Circuit Voltage (DC) (Max) 50 V

Output Power (Min) 0.8 W

Energy Metering Yes

Output Power (Max) 22 W

Output Voltage (Min) 8 V

Inrush Current Width to 50% of Peak 320 µs

Diagnostics True

Output Current (Min) 70 mA

Output Current (Max) 1050 mA

Inrush Current Peak (Max) 18 A

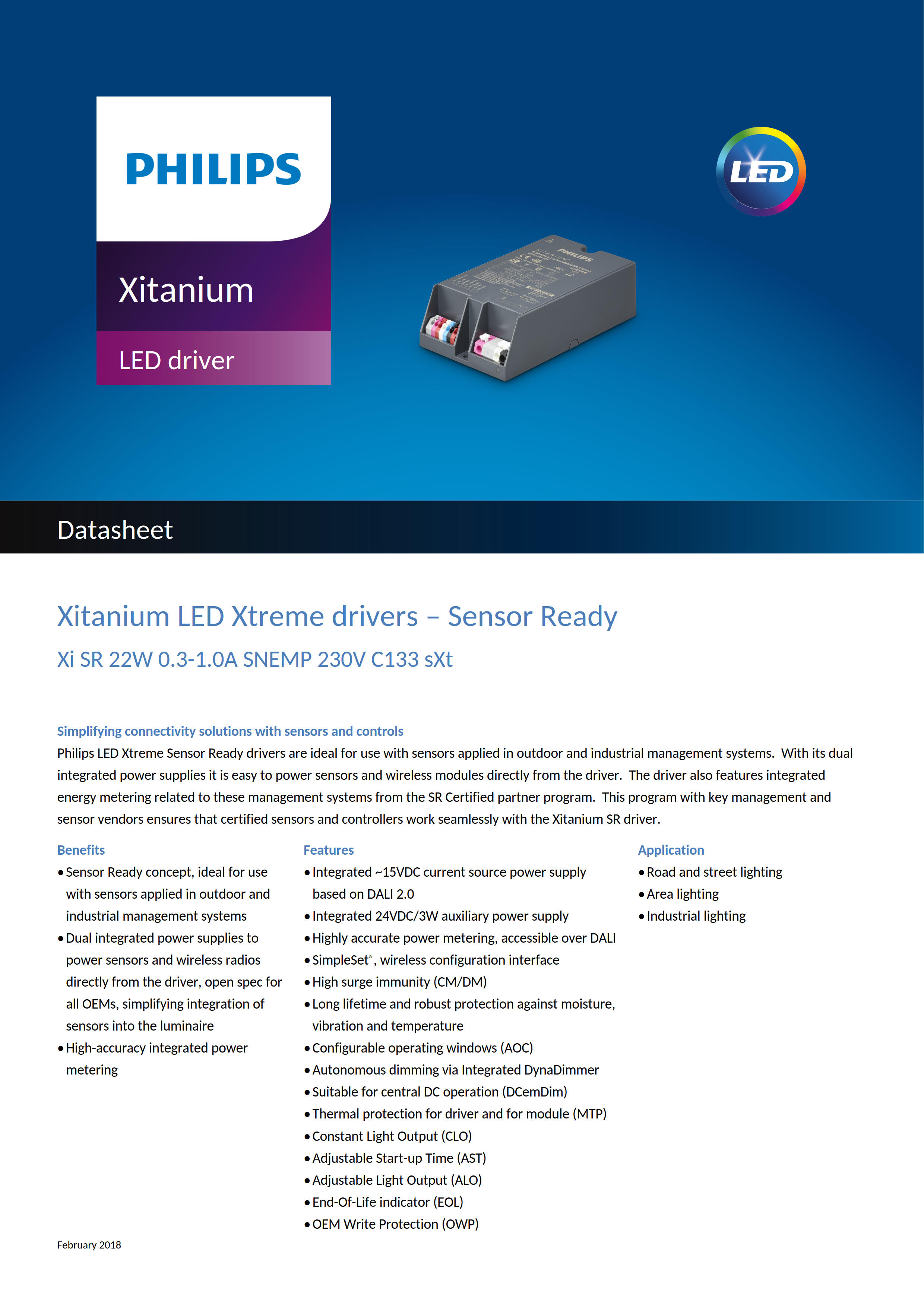

Xitanium LED Xtreme drivers – Sensor Ready

Xi SR 22W 0.3-1.0A SNEMP 230V C133 sXt Simplifying connectivity solutions with sensors and controls

Simplifying connectivity solutions with sensors and controls Philips LED Xtreme Sensor Ready drivers are ideal for use with sensors applied in outdoor and industrial management systems. With its dual integrated power supplies it is easy to power sensors and wireless modules directly from the driver. The driver also features integrated energy metering related to these management systems from the SR Certified partner program. This program with key management and sensor vendors ensures that certified sensors and controllers work seamlessly with the Xitanium SR driver.

Benefits

• Sensor Ready concept, ideal for use with sensors applied in outdoor and industrial management systems

•Dual integrated power supplies to power sensors and wireless radios directly from the driver, open spec for all OEMs, simplifying integration of sensors into the luminaire

• 75 & 110W C150 versions: low inrush current, enabling high amount of drivers per MCB

•High-accuracy integrated power metering

Features

• Integrated ~15VDC DA current source power supply based on DALI 2.0

• Integrated 24VDC/3W auxiliary power supply

• Highly accurate power metering, accessible over DALI

• SimpleSet®, wireless configuration interface •High surge immunity (CM/DM)

• Long lifetime and robust protection against moisture, vibration and temperature

•Configurable operating windows (AOC)

•Autonomous dimming via Integrated DynaDimmer

• Suitable for central DC operation (DCemDim)

• Thermal protection for driver and for module (MTP)

•Constant Light Output (CLO)

•Adjustable Start-up Time (AST)

•Adjustable Light Output (ALO)

Application

•Road and street lighting

• Area lighting

• Industrial lighting

• Tunnel lighting

• End-Of-Life indicator (EOL) •OEM Write Protection (OWP)
