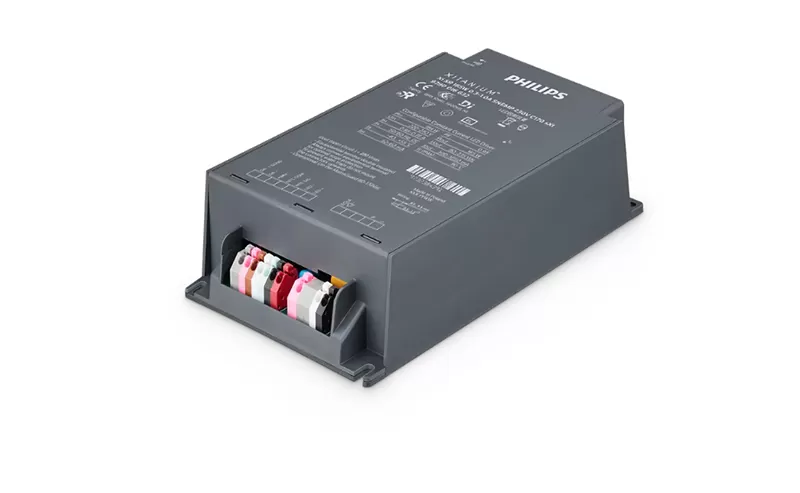

PHILIPS Xitanium LED Xtreme drivers Xi SR 75W 0.3-1.0A SNEMP 230V C150 sXt 929002808506
12NC:929002808506

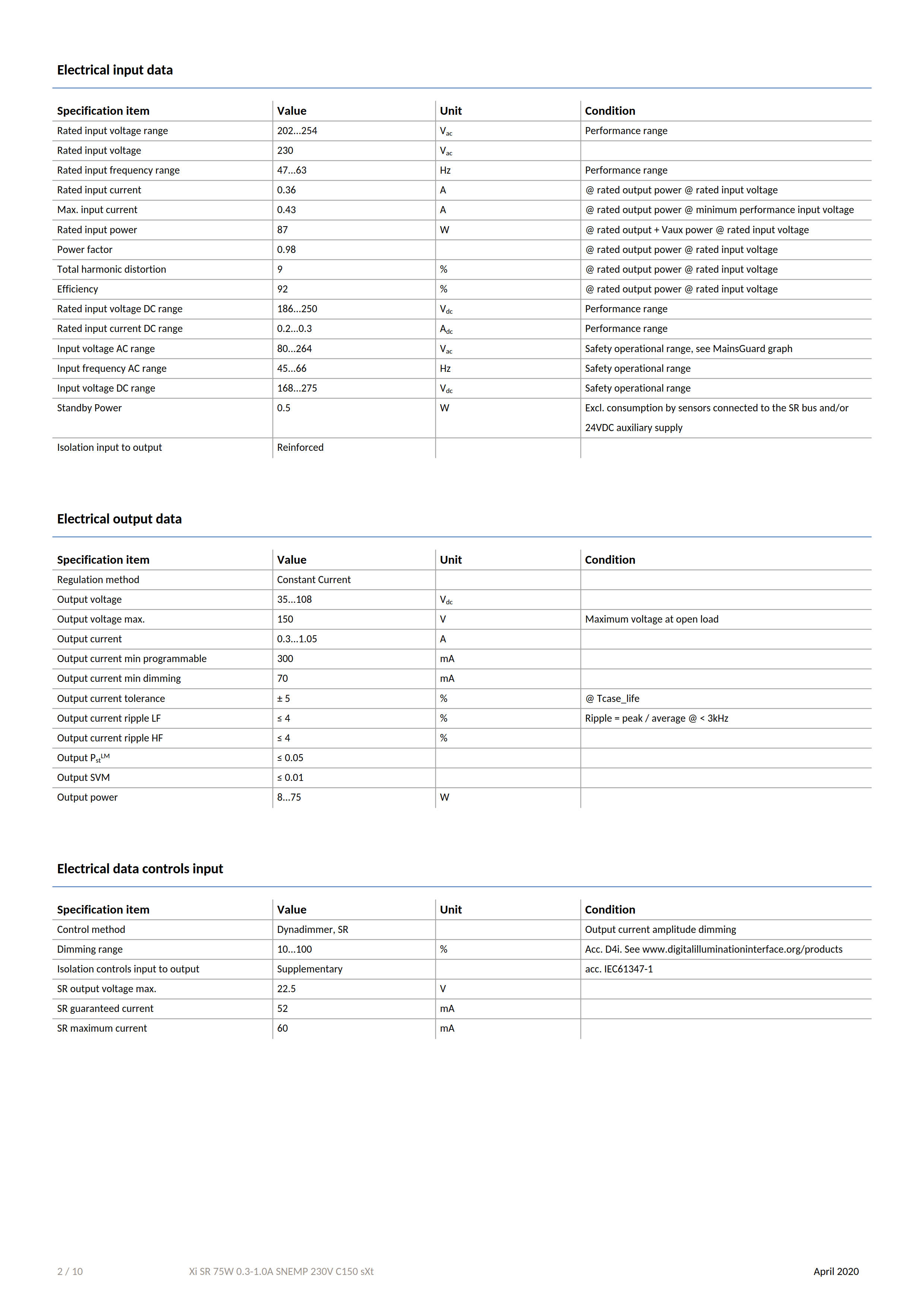

Operating and ElectricalOutput Current Ripple (Max) 4 %
Output Voltage (Max) 108 V

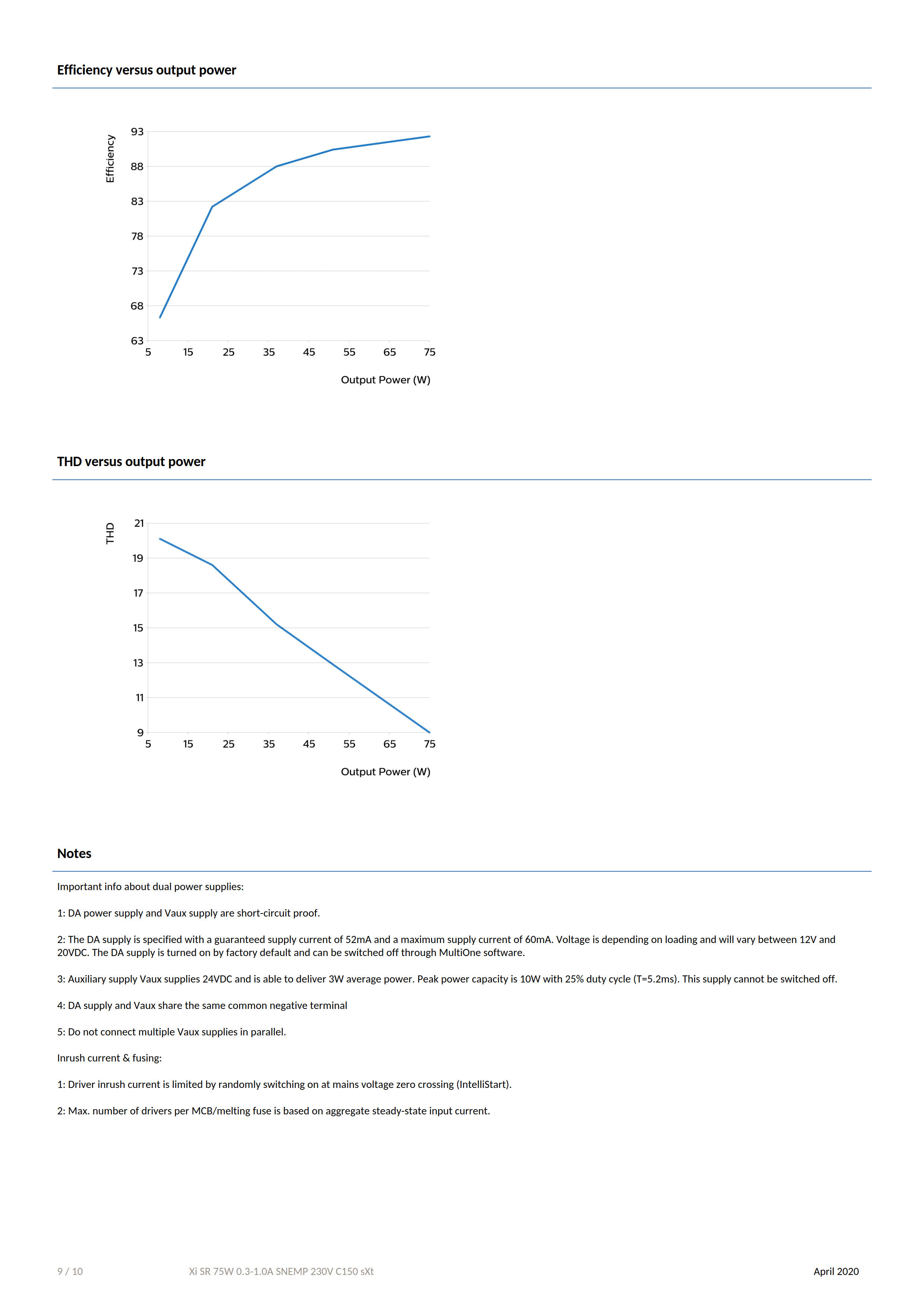

Maximum Efficiency at Full Load 90 %
Open Circuit Voltage (DC) (Max) 150 V
Output Power (Min) 8 W
Output Power (Max) 75 W
Energy Metering Yes
Output Voltage (Min) 35 V

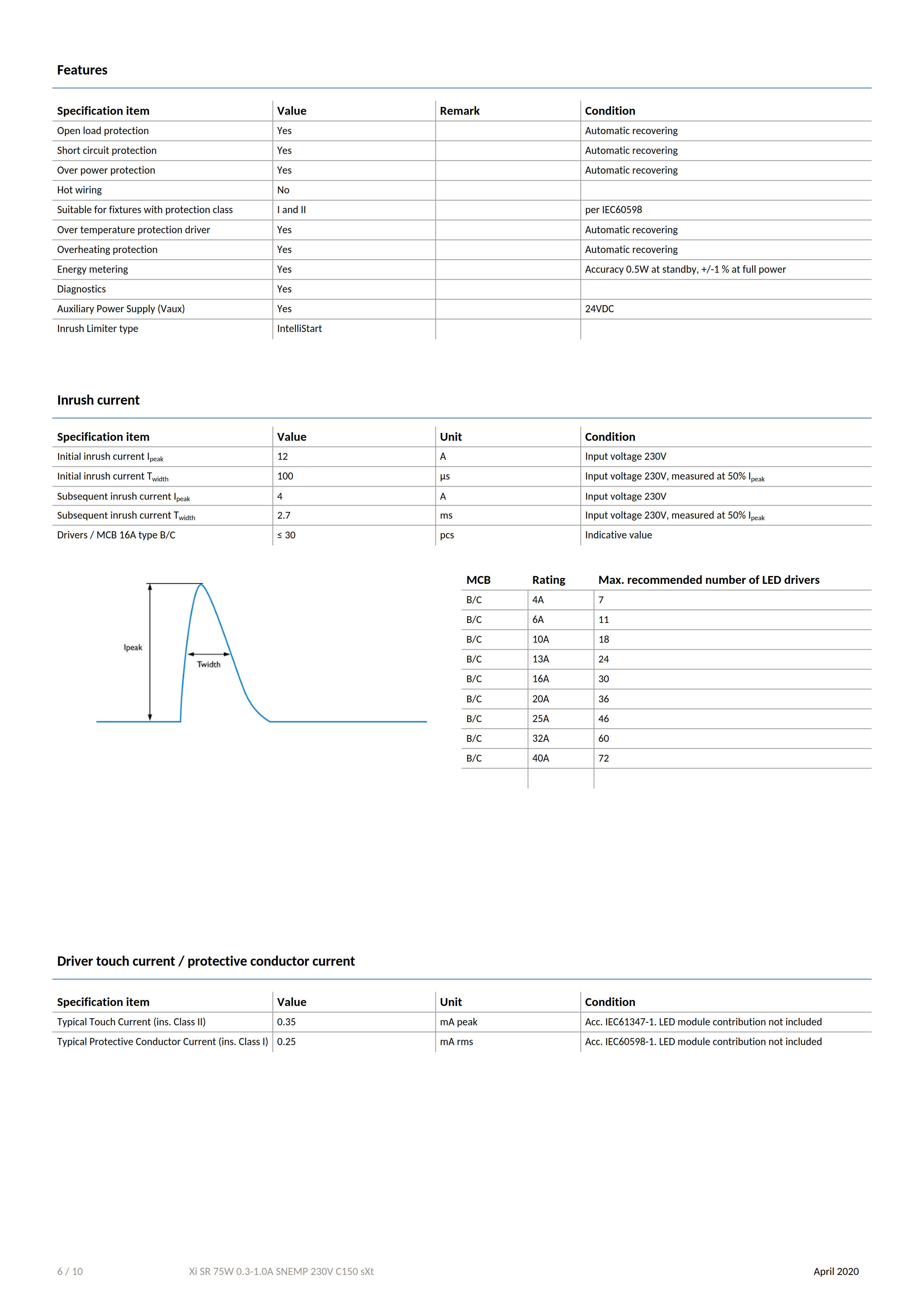

Inrush Current Width to 50% of Peak 2,700 µs
Output Current (Min) 300 mA
Diagnostics True
Output Current (Max) 1050 mA
Inrush Current Peak (Max) 4 A

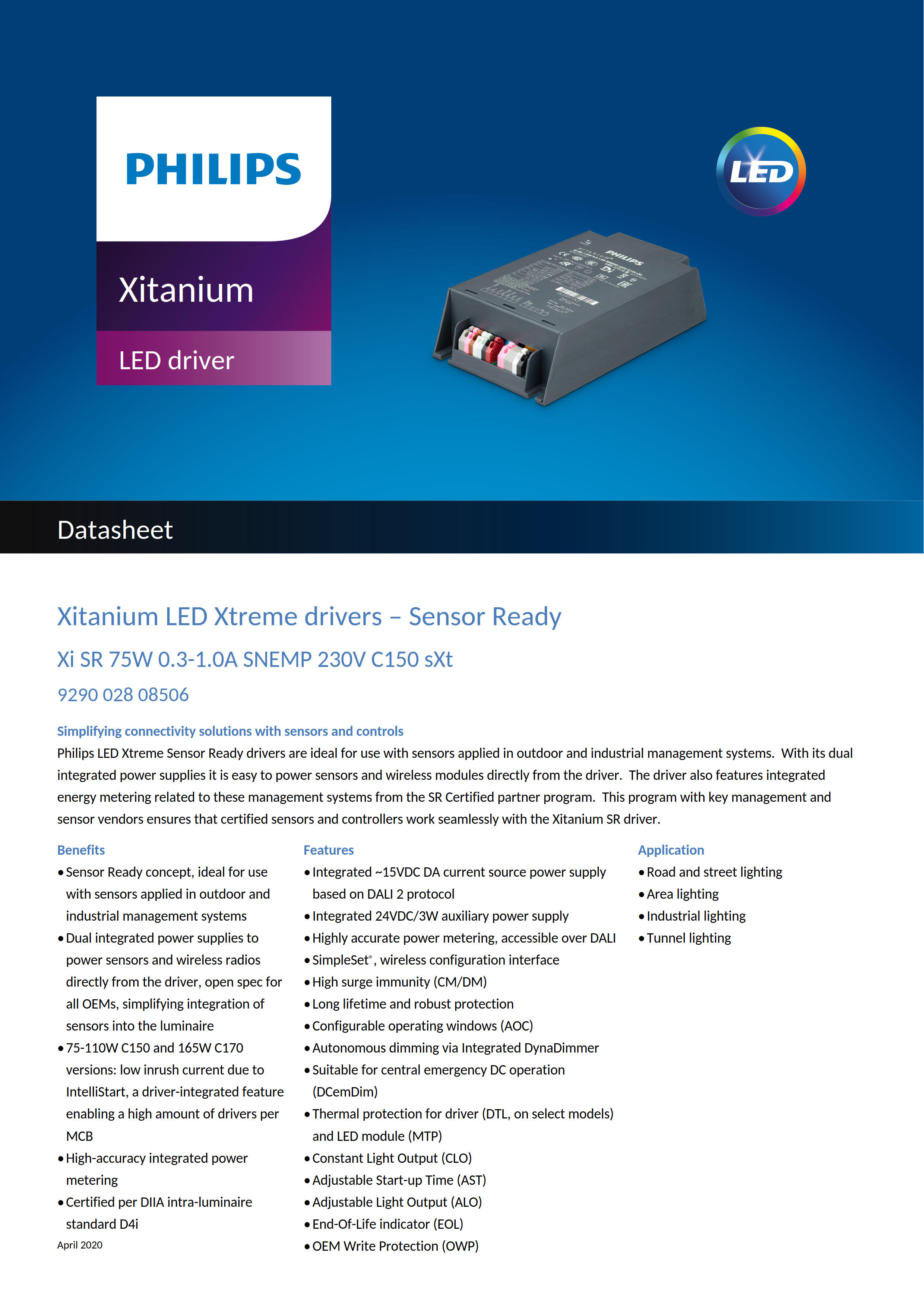

Xitanium LED Xtreme drivers – Sensor Ready
Xi SR 75W 0.3-1.0A SNEMP 230V C150 sXt 9290 028 08506
Xitanium Basic Prog LED Outdoor drivers Philips Xitanium Basic Programmable LED drivers are offering a basic feature set and high performance, making it a preferred choice for various outdoor applications. The portfolio offers flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in compact form factors with a basic feature set, which offer high value for both OEM customers and end-users. The key features AOC (Adjustable Output Current) and OWP (Over Write Protection) are programmable via SimpleSet®, an easy and fast way to configure the driver without the need to power the driver. A great combination with MultiOne Basic configuration software. The products can replace the existing single current outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire, electrical performance, and less variety in logistical codes.
Benefits
• Sensor Ready concept, ideal for use with sensors applied in outdoor and industrial management systems
•Dual integrated power supplies to power sensors and wireless radios directly from the driver, open spec for all OEMs, simplifying integration of sensors into the luminaire
• 75 & 110W C150 versions: low inrush current, enabling high amount of drivers per MCB
•High-accuracy integrated power metering
Features
• Integrated ~15VDC DA current source power supply based on DALI 2.0
• Integrated 24VDC/3W auxiliary power supply
• Highly accurate power metering, accessible over DALI
• SimpleSet®, wireless configuration interface •High surge immunity (CM/DM)
• Long lifetime and robust protection against moisture, vibration and temperature
•Configurable operating windows (AOC)
•Autonomous dimming via Integrated DynaDimmer
• Suitable for central DC operation (DCemDim)

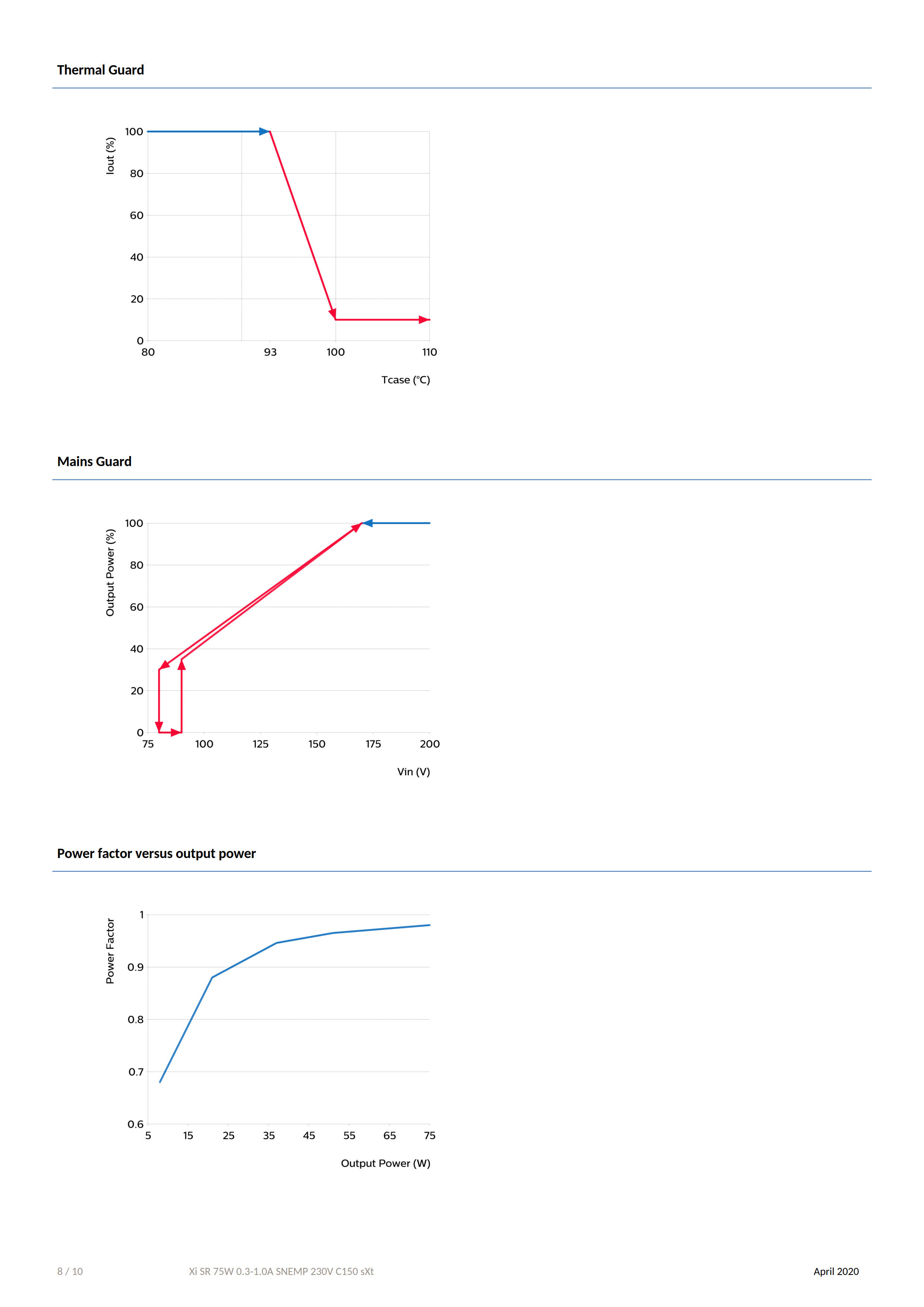

• Thermal protection for driver and for module (MTP)
•Constant Light Output (CLO)
•Adjustable Start-up Time (AST)
•Adjustable Light Output (ALO)
Application
•Road and street lighting
• Area lighting
• Industrial lighting
• Tunnel lighting
• End-Of-Life indicator (EOL) •OEM Write Protection (OWP)
