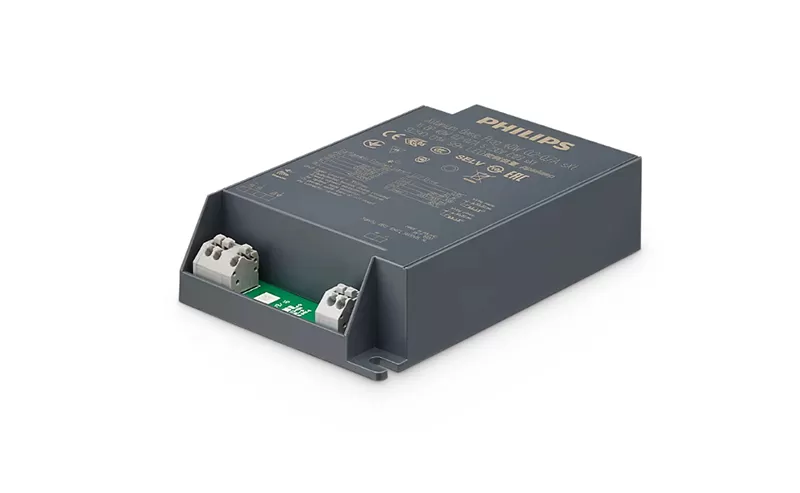

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

Product date

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

12NC:929001499406

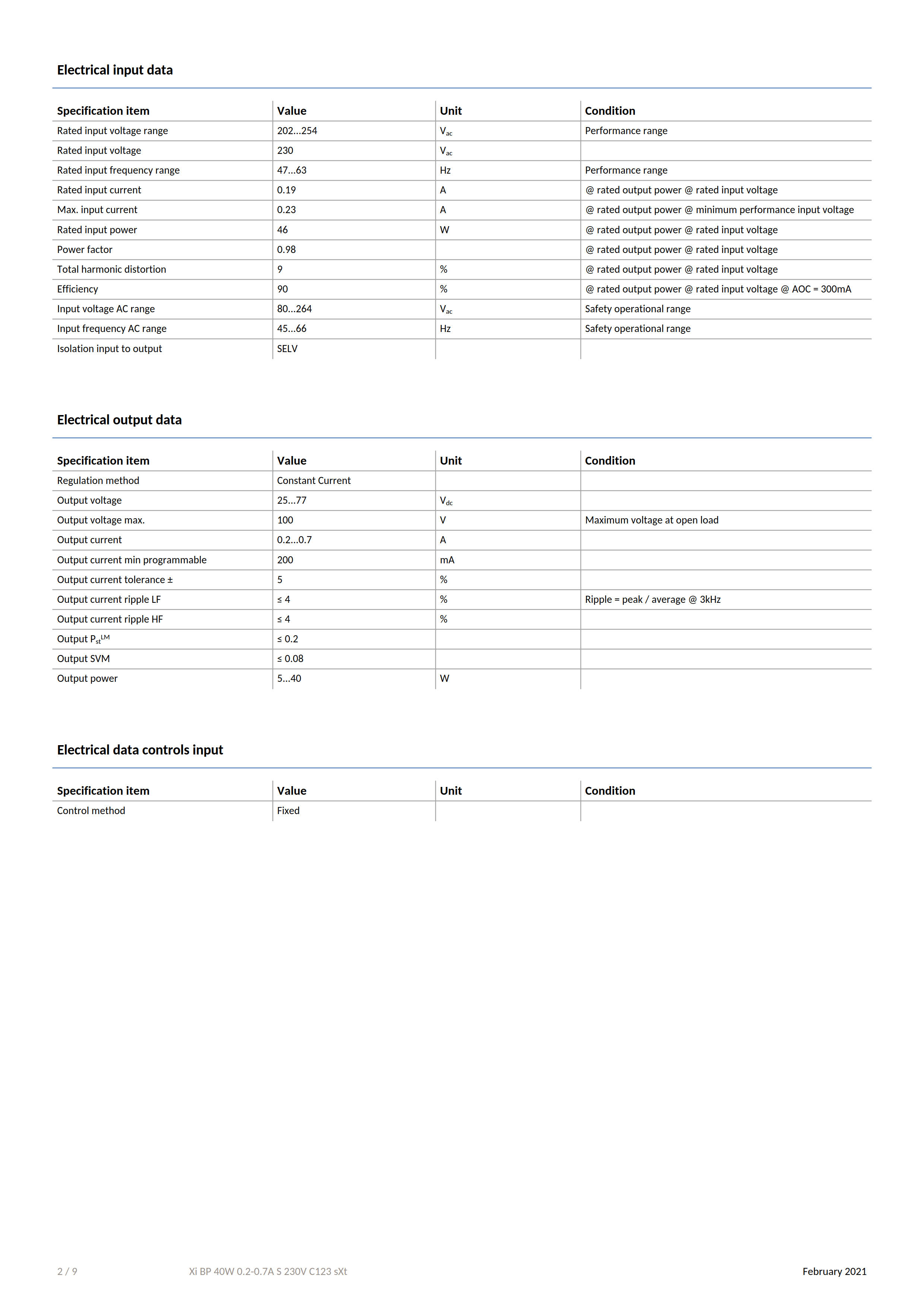

Operating and ElectricalOutput Current Ripple (Max) 4 %

Output Voltage (Max) 77 V

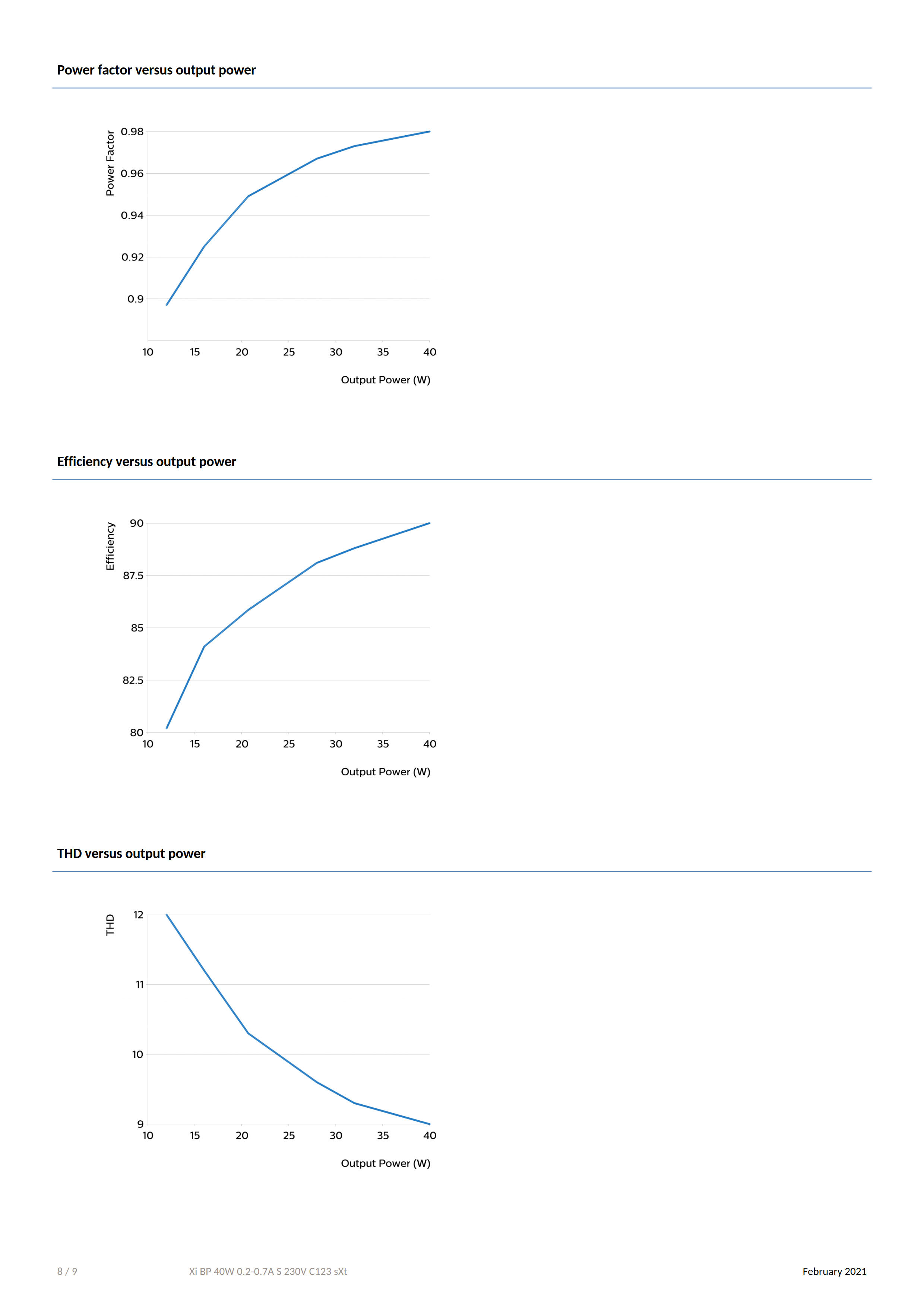

Maximum Efficiency at Full Load 90 %

Open Circuit Voltage (DC) (Max) 100 V

Output Power (Min) 5 W

Output Power (Max) 40 W

Output Voltage (Min) 25 V

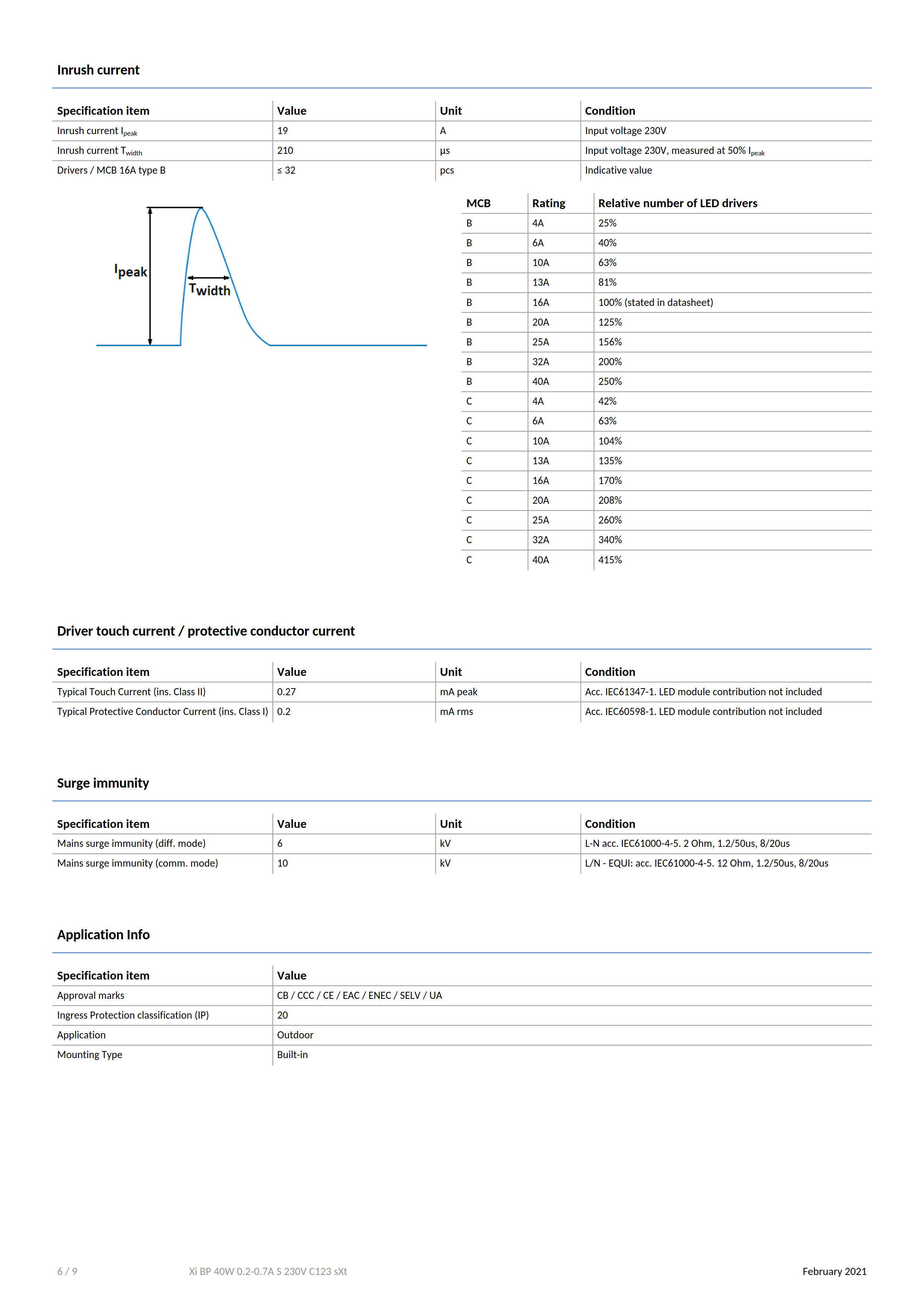

Inrush Current Width to 50% of Peak 210 µs

Diagnostics False

Output Current (Min) 200 mA

Output Current (Max) 700 mA

Inrush Current Peak (Max) 19 A


PRODUCT DATA

Product date

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

12NC:929001499406

Operating and ElectricalOutput Current Ripple (Max) 4 %

Output Voltage (Max) 77 V

Maximum Efficiency at Full Load 90 %

Open Circuit Voltage (DC) (Max) 100 V

Output Power (Min) 5 W

Output Power (Max) 40 W

Output Voltage (Min) 25 V

Inrush Current Width to 50% of Peak 210 µs

Diagnostics False

Output Current (Min) 200 mA

Output Current (Max) 700 mA

Inrush Current Peak (Max) 19 A

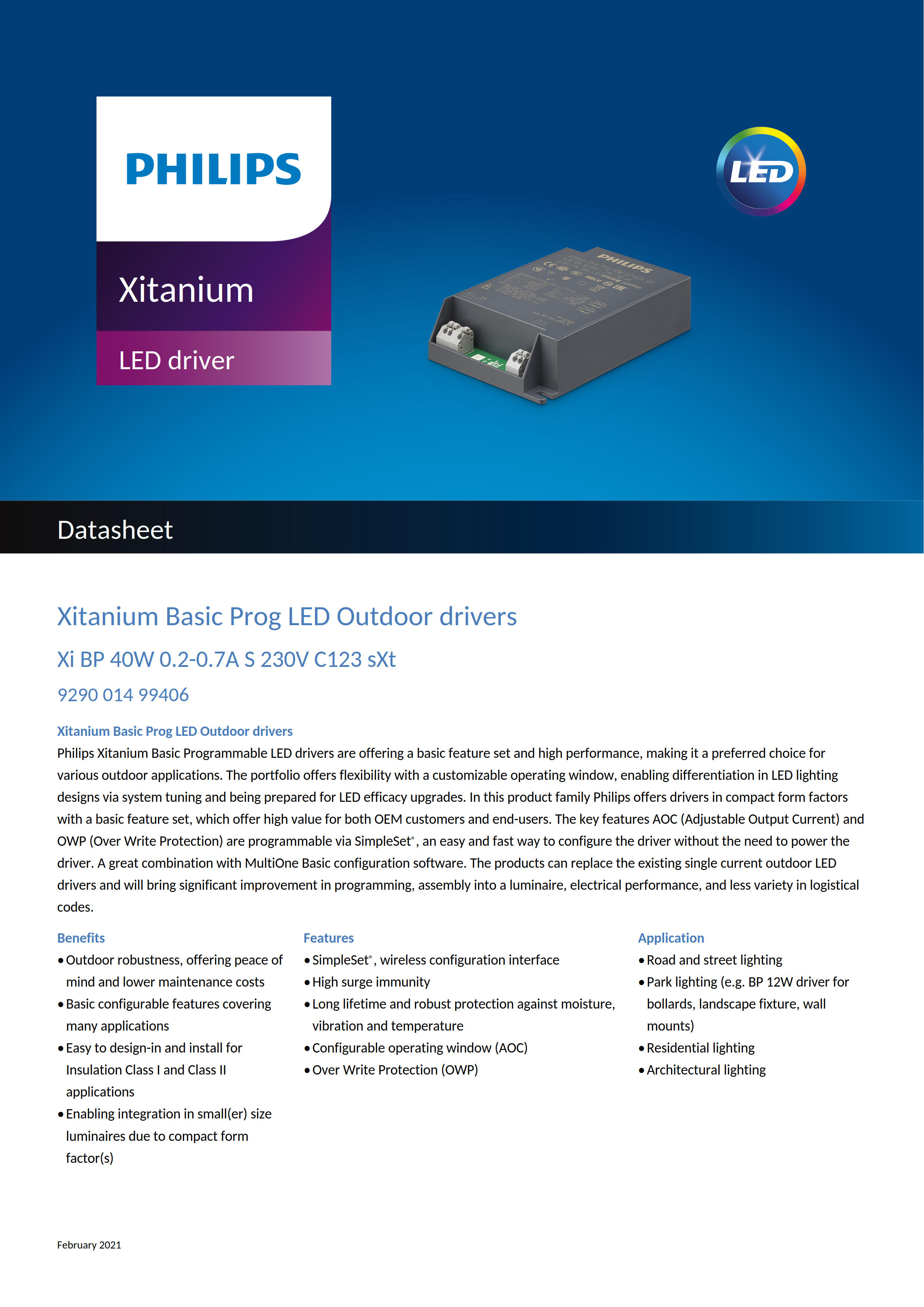

Xitanium Basic Prog LED Outdoor drivers

Xi BP 40W 0.2-0.7A S 230V C123 sXt 9290 014 99406

Xitanium Basic Prog LED Outdoor drivers Philips Xitanium Basic Programmable LED drivers are offering a basic feature set and high performance, making it a preferred choice for various outdoor applications. The portfolio offers flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in compact form factors with a basic feature set, which offer high value for both OEM customers and end-users. The key features AOC (Adjustable Output Current) and OWP (Over Write Protection) are programmable via SimpleSet®, an easy and fast way to configure the driver without the need to power the driver. A great combination with MultiOne Basic configuration software. The products can replace the existing single current outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire, electrical performance, and less variety in logistical codes.

Benefits

•Outdoor robustness, offering peace of mind and lower maintenance costs

•Basic configurable features covering many applications

• Easy to design-in and install for Insulation Class I and Class II applications

• Enabling integration in small(er) size luminaires due to compact form factor(s)

Features

• SimpleSet®, wireless configuration interface

• High surge immunity

• Long lifetime and robust protection against moisture, vibration and temperature

•Configurable operating window (AOC)

•Over Write Protection (OWP)

Application

•Road and street lighting

• Park lighting (e.g. BP 12W driver for bollards, landscape fixture, wall mounts)

•Residential lighting

•Architectural lighting

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xitanium Outdoor drivers Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406


PHILIPS Product 12NC List

12NC List:

PHILIPS Xi BP 12W 0.1-0.5A S 230V C100 929001657106

PHILIPS Xi BP 75W 0.2-0.7A S 230V C133 sXt 929002817006

PHILIPS Xi BP 22W 0.2-0.7A S 230V C123 sXt 929001499306

PHILIPS Xi BP 110W 0.2-0.7A S 230V C133 sXt 929002817206

PHILIPS Xi BP 40W 0.2-0.7A S 230V C123 sXt 929001499406

PHILIPS Xi BP 110W 0.3-1.0A S 230V C133 sXt 929002817306

PHILIPS Xi BP 40W 0.3-1.0A S 230V C123 sXt 929001499506

PHILIPS Xi BP 75W 0.3-1.0A S 230V C133 sXt 929002817106

PHILIPS Xi SR 40W 0.3-1.0A SNEMP 230V C133 sXt 929001573606

PHILIPS Xi SR 75W 0.3-1.0A SNEMP 230V C150 sXt 929002808506

PHILIPS Xi SR 22W 0.3-1.0A SNEMP 230V C133 sXt 929001573706

PHILIPS Xi SR 165W 0.3-1.0A SNEMP 230V C170 sXt 929001663206

PHILIPS Xi SR 150W 0.3-1.0A SNEMP 230V S240 sXt 929001507606

PHILIPS Xi SR 110W 0.3-1.0A SNEMP 230V C150 sXt 929002808706

PHILIPS Xi SR 75W 0.3-1.0A SNEMP 230V S240 sXt 929001507806
