Product date

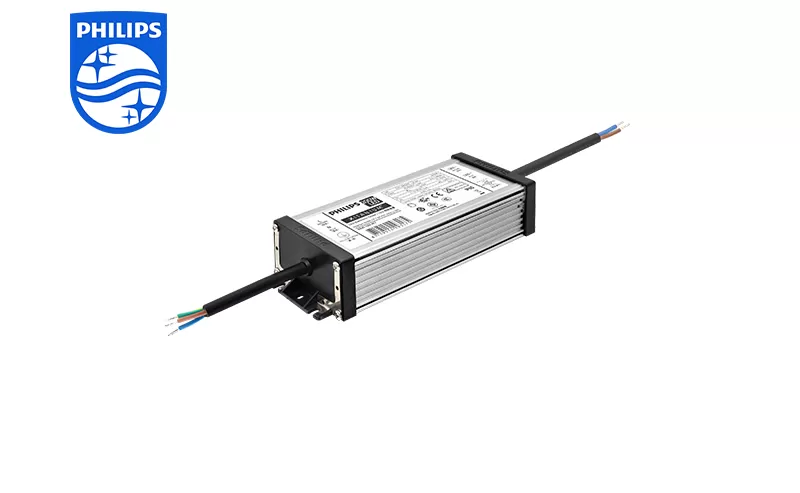

Model name:PHILIPS Xitanium Outdoor LED Drivers Xitanium 100W 2.1-4.2A AOC 230V I160 929002829380
12NC:929002829380

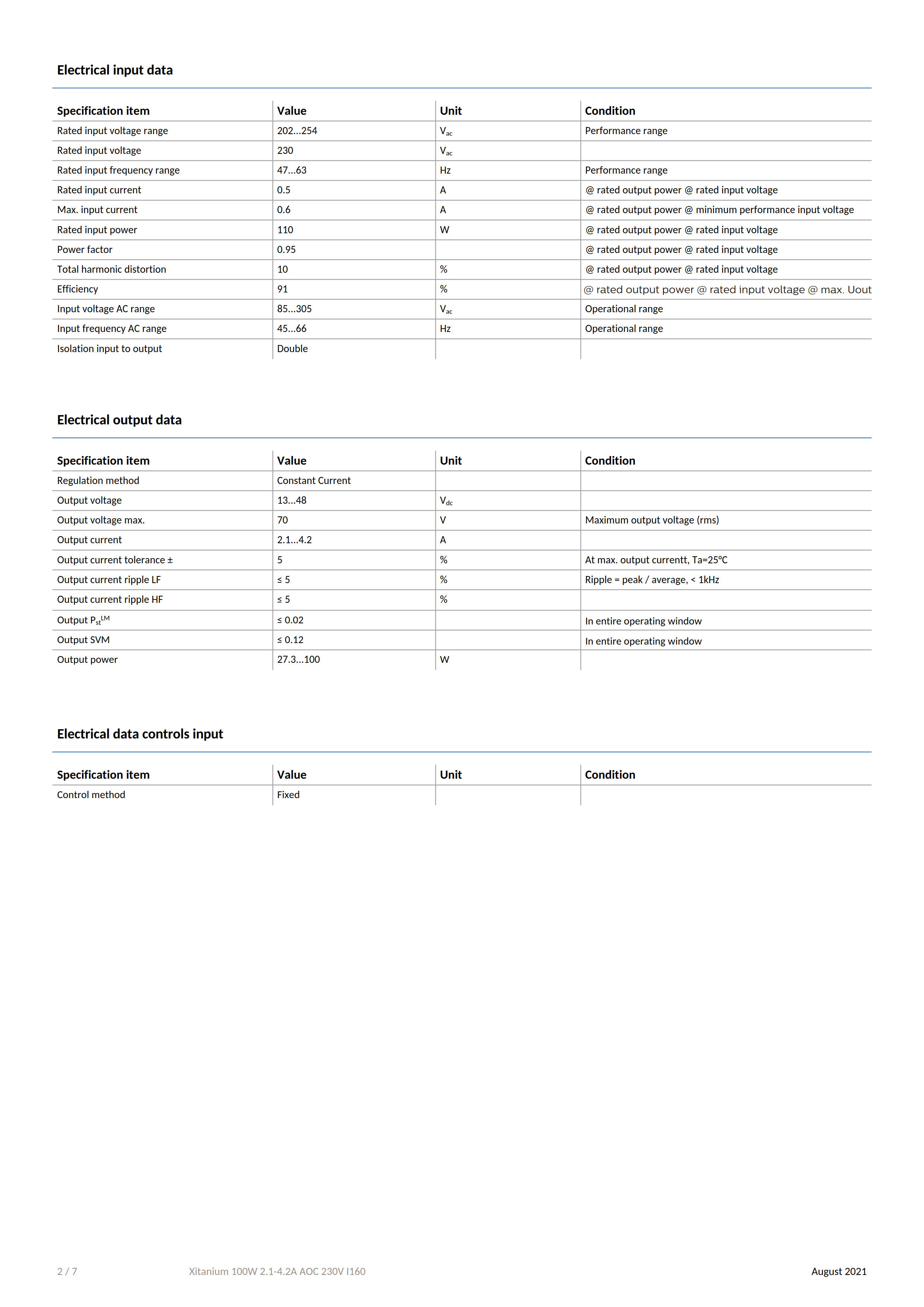

Rated input voltage range 202...254
Rated input voltage 230
Rated input frequency range 47...63
Rated input current 0.5
Max. input current 0.6
Rated input power 110
Power factor 0.95
Total harmonic distortion 10
Efficiency 91

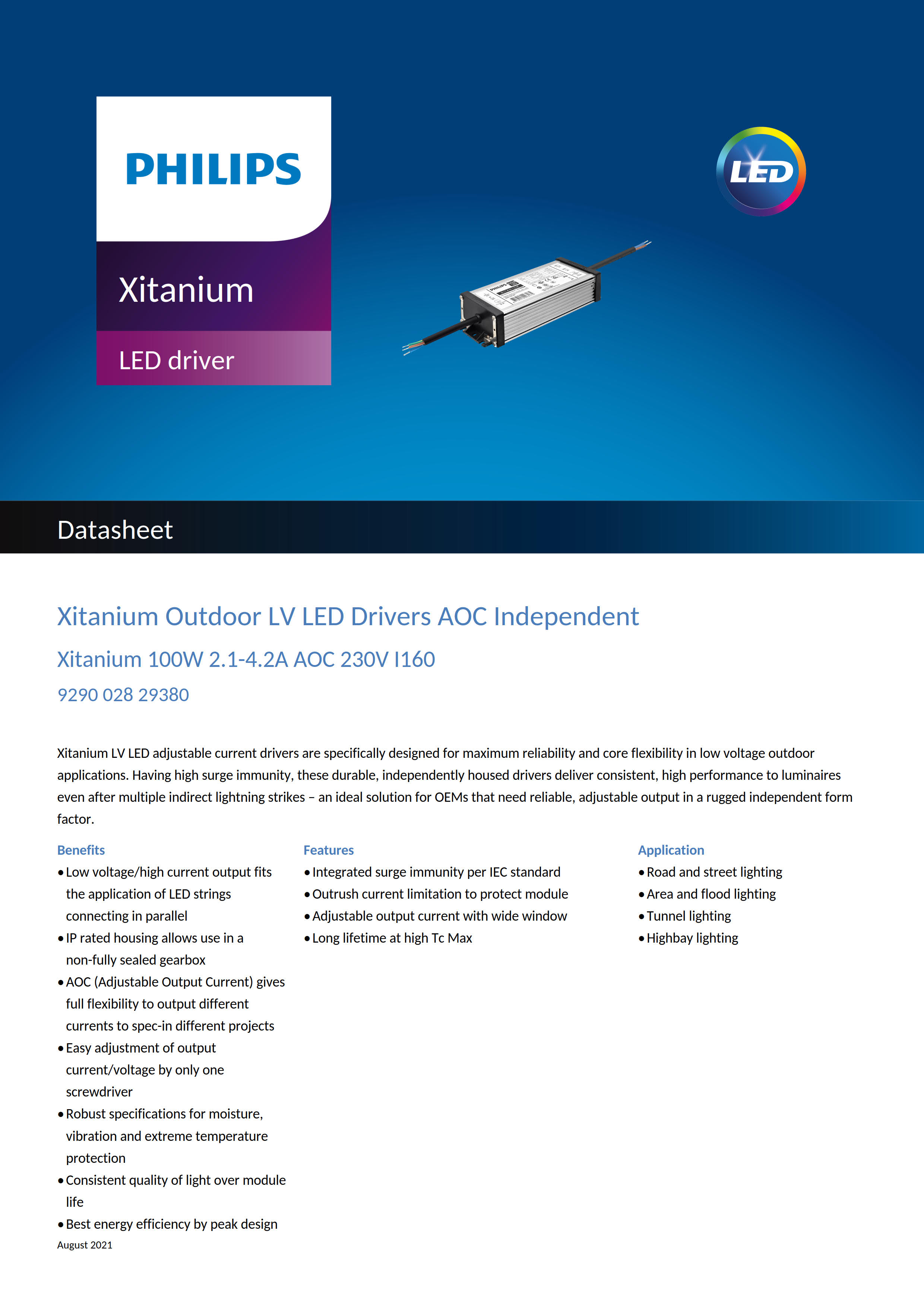

Xitanium LV LED adjustable current drivers are specifically designed for maximum reliability and core flexibility in low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires even after multiple indirect lightning strikes – an ideal solution for OEMs that need reliable, adjustable output in a rugged independent form factor.
Benefits
• Low voltage/high current output fits the application of LED strings
connecting in parallel
• IP rated housing allows use in a
non-fully sealed gearbox
• AOC (Adjustable Output Current) gives
full flexibility to output different
currents to spec-in different projects
• Easy adjustment of output
current/voltage by only one
screwdriver
• Robust specifications for moisture,
vibration and extreme temperature
protection
• Consistent quality of light over module life
• Best energy efficiency by peak design
Features
• Integrated surge immunity per IEC standard
• Outrush current limitation to protect module
• Adjustable output current with wide window
• Long lifetime at high Tc Max
Application
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• Highbay lighting
