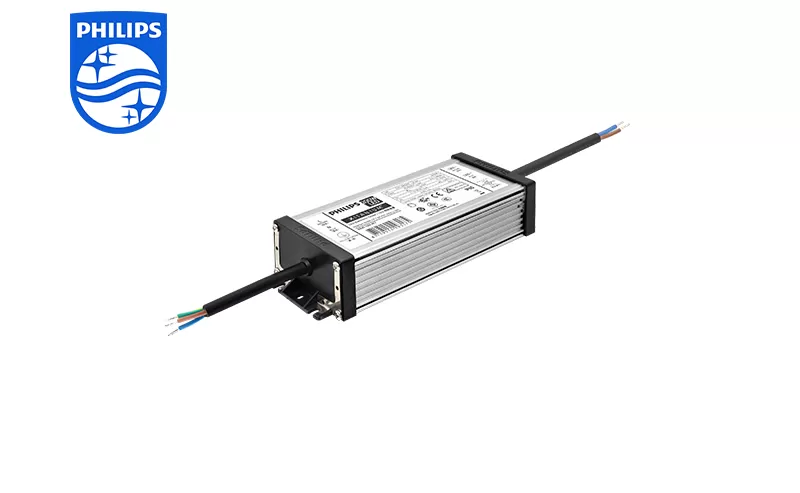

PHILIPS Xitanium Outdoor LED Drivers Xitanium 150W 2.45-4.9A AOC 230V I175 929002829280

Product date

Model name:PHILIPS Xitanium Outdoor LED Drivers Xitanium 150W 2.45-4.9A AOC 230V I175 929002829280

12NC:929002829280

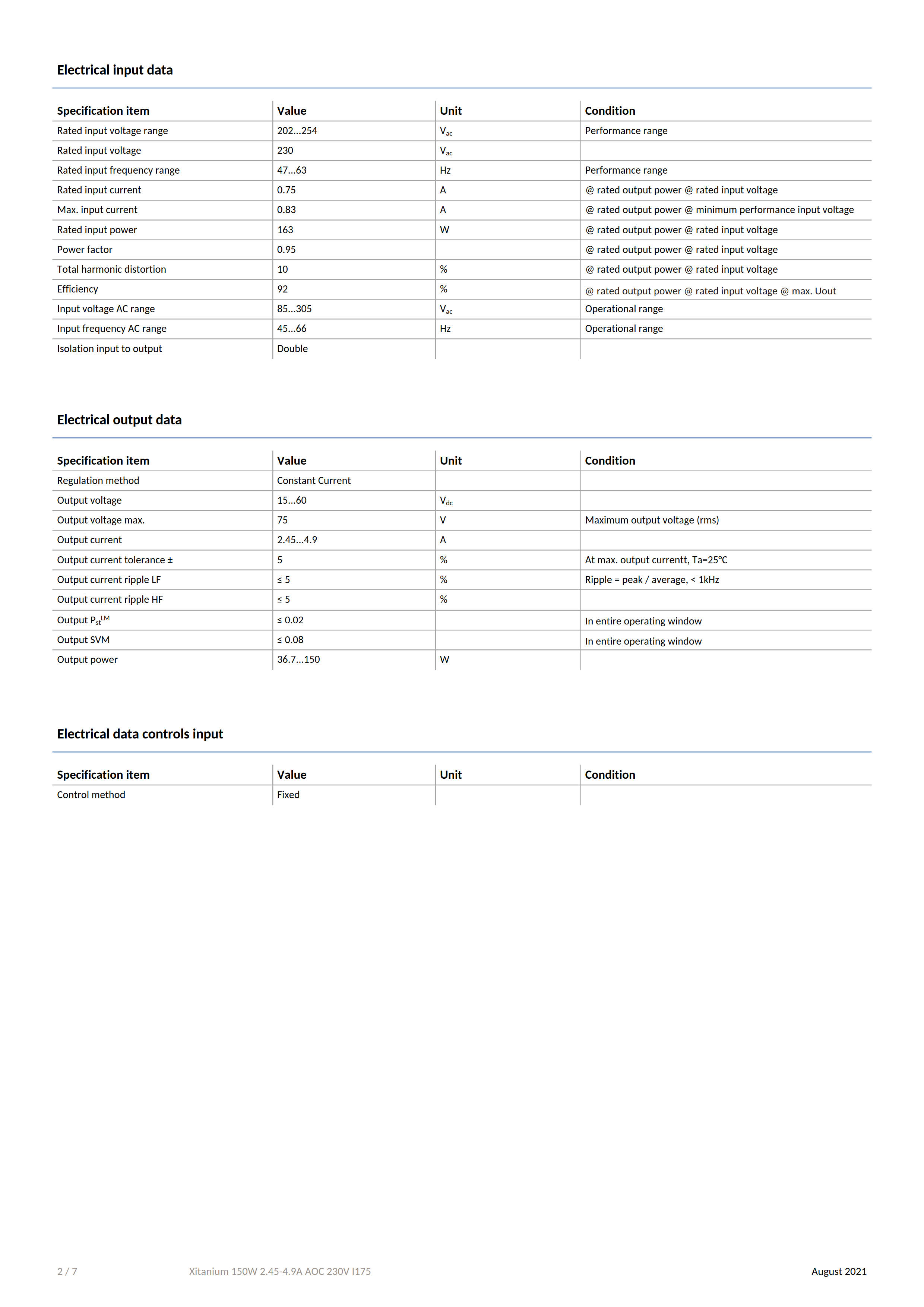

Rated input voltage range 202...254

Rated input voltage 230

Rated input frequency range 47...63

Rated input current 0.75

Max. input current 0.83

Rated input power 163

Power factor 0.95

Total harmonic distortion 10

Efficiency 92





PRODUCT DATA

Product date

Model name:PHILIPS Xitanium Outdoor LED Drivers Xitanium 150W 2.45-4.9A AOC 230V I175 929002829280

12NC:929002829280

Rated input voltage range 202...254

Rated input voltage 230

Rated input frequency range 47...63

Rated input current 0.75

Max. input current 0.83

Rated input power 163

Power factor 0.95

Total harmonic distortion 10

Efficiency 92

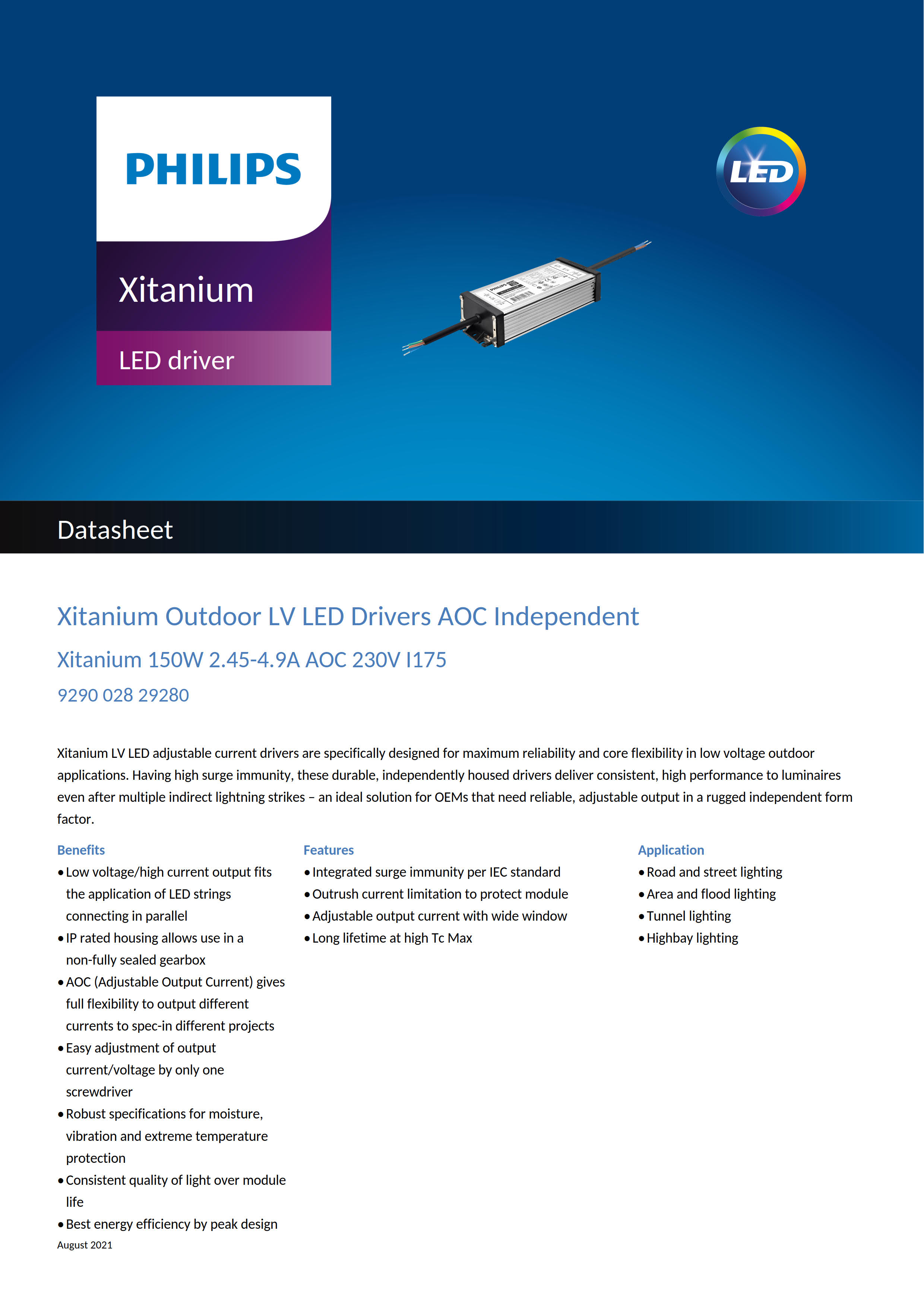

Xitanium LV LED adjustable current drivers are specifically designed for maximum reliability and core flexibility in low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires even after multiple indirect lightning strikes – an ideal solution for OEMs that need reliable, adjustable output in a rugged independent form factor.


Benefits

• Low voltage/high current output fits the application of LED strings

connecting in parallel

• IP rated housing allows use in a

non-fully sealed gearbox

• AOC (Adjustable Output Current) gives

full flexibility to output different

currents to spec-in different projects

• Easy adjustment of output

current/voltage by only one

screwdriver

• Robust specifications for moisture,

vibration and extreme temperature

protection

• Consistent quality of light over module life

• Best energy efficiency by peak design


Features

• Integrated surge immunity per IEC standard

• Outrush current limitation to protect module

• Adjustable output current with wide window

• Long lifetime at high Tc Max


Application

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• Highbay lighting
