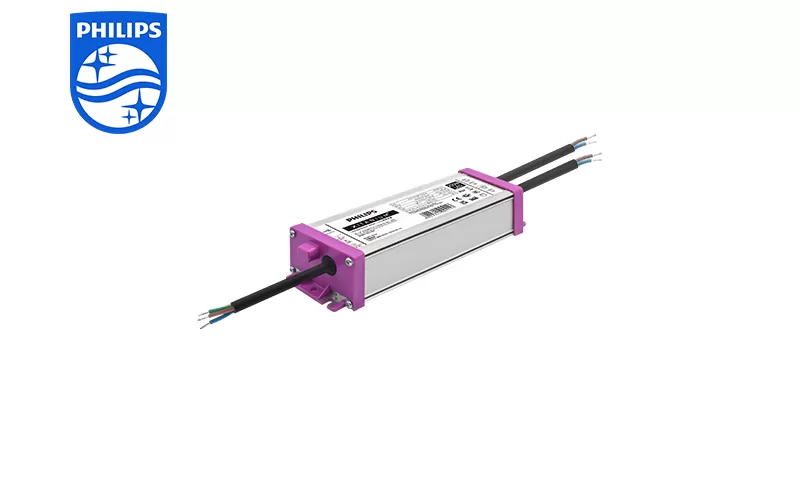

PHILIPS Xitanium Xi LP 150W 0.3-1.05A S1 WL I175 929002879080

Product date

Model name:PHILIPS Xitanium Xi LP 150W 0.3-1.05A S1 WL I175 929002879080

12NC:929002879080

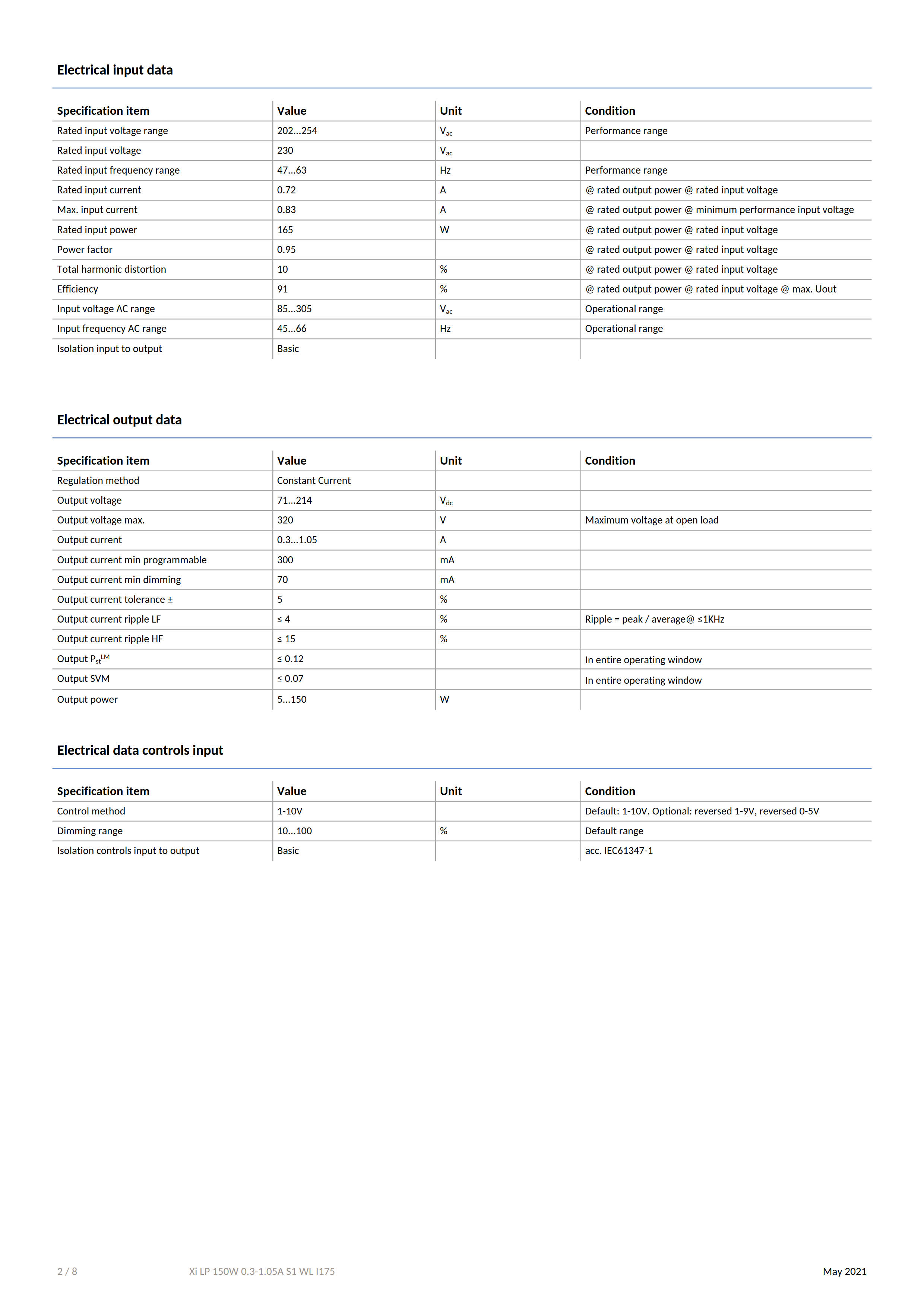

Rated input voltage range 202...254

Rated input voltage 230

Rated input frequency range 47...63

Rated input current 0.72

Max. input current 0.83

Rated input power 165

Power factor 0.95

Total harmonic distortion 10

Efficiency 91





PRODUCT DATA

Product date

Model name:PHILIPS Xitanium Xi LP 150W 0.3-1.05A S1 WL I175 929002879080

12NC:929002879080

Rated input voltage range 202...254

Rated input voltage 230

Rated input frequency range 47...63

Rated input current 0.72

Max. input current 0.83

Rated input power 165

Power factor 0.95

Total harmonic distortion 10

Efficiency 91

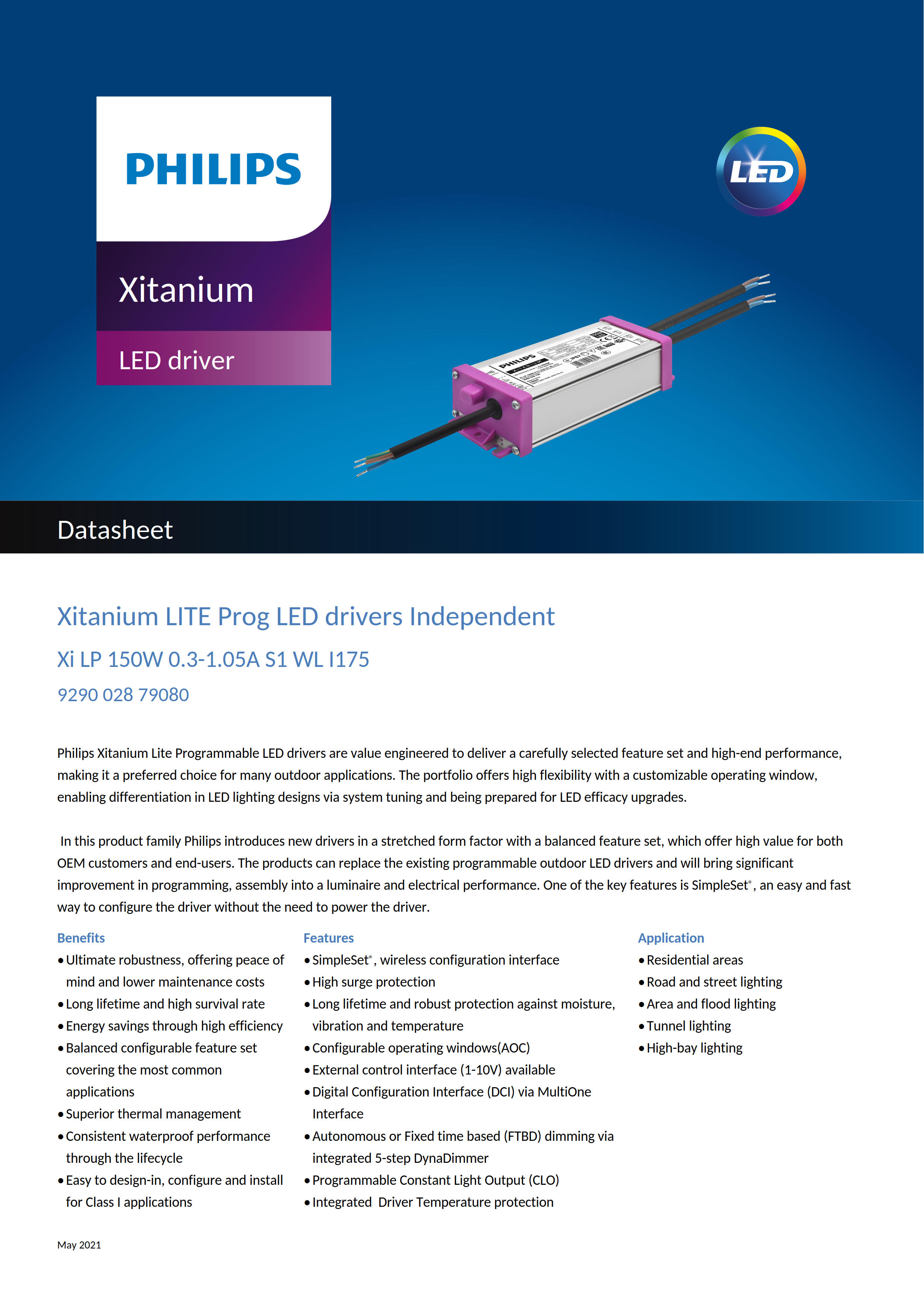

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades.


 In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.



Benefits

• Ultimate robustness, offering peace of

mind and lower maintenance costs

• Long lifetime and high survival rate

• Energy savings through high efficiency

• Balanced configurable feature set covering the most common

applications

• Superior thermal management

• Consistent waterproof performance through the lifecycle

• Easy to design-in, configure and install for Class I applications


Features

• SimpleSet®, wireless configuration interface

• High surge protection

• Long lifetime and robust protection against moisture,

vibration and temperature

• Configurable operating windows(AOC)

• External control interface (1-10V) available

• Digital Configuration Interface (DCI) via MultiOne

Interface

• Autonomous or Fixed time based (FTBD) dimming via

integrated 5-step DynaDimmer

• Programmable Constant Light Output (CLO)

• Integrated Driver Temperature protection


Application

 • Residential areas

 • Road and street lighting

 • Area and flood lighting

 • Tunnel lighting • High-bay lighting
