PRODUCT DATA
Product date

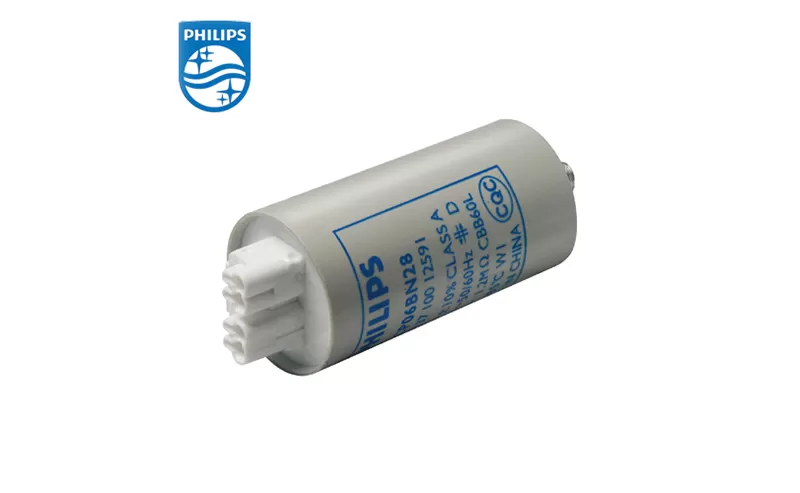

Model name:PHILIPS CP12BQ28 12uF 913710011991
12NC:913710011991
Design: Parallel
Capacitor Value: 12
Input Voltage: 250 V
Housing: M8x10
CP12BQ28 12uF 913710011991

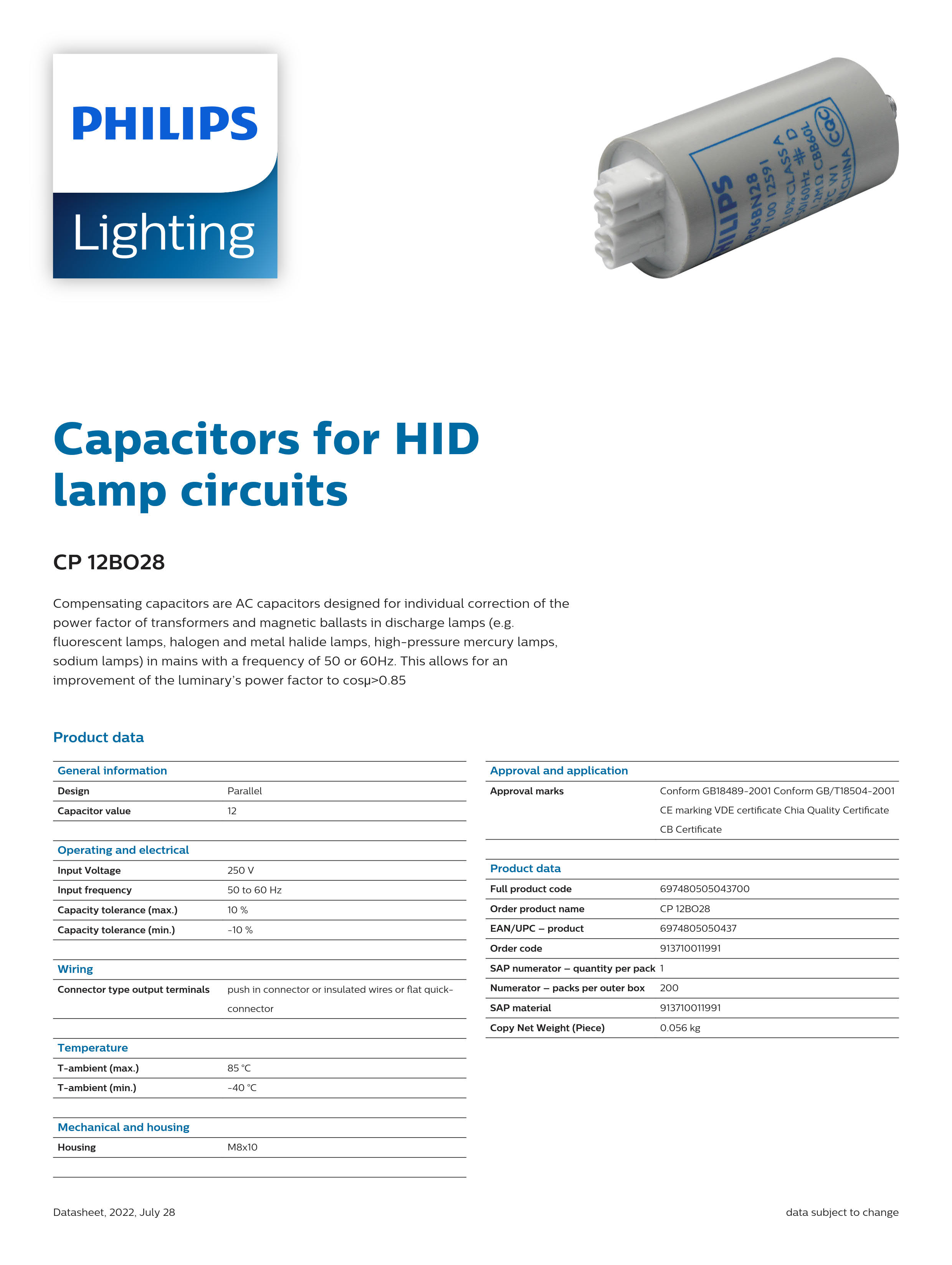

Compensating capacitors are AC capacitors designed for individual correction of the power factor of transformers and magnetic ballasts in discharge lamps (e.g. fluorescent lamps, halogen and metal halide lamps, high-pressure mercury lamps, sodium lamps) in mains with a frequency of 50 or 60Hz. This allows for an improvement of the luminary’s power factor to cosμ>0.85
PHILIPS Product 12NC List
12NC List:
913710011991 CP12BQ28 12uF
913710012191 CP18CU28 18uF
913710012291 CP25ER28 25uF
913710012391 CP32ET28 32uF
913710012491 CA50GV28 50uF
