PHILIPS HID Bulb/PHILIPS HID Ballast

Home - PHILIPS Product - PHILIPS Traditional HID - PHILIPS HID Bulb/PHILIPS HID Ballast - PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

Product date

Model name:PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

12NC:928084705133

Cap-Base: RX7S

Life to 50% Failures: 16000 h

Luminous Flux: 5450 lm

Correlated Color Temperature: 4200 K

Luminous Efficacy: 76 lm/W

Power: 71.5 W

Bulb Shape: T22

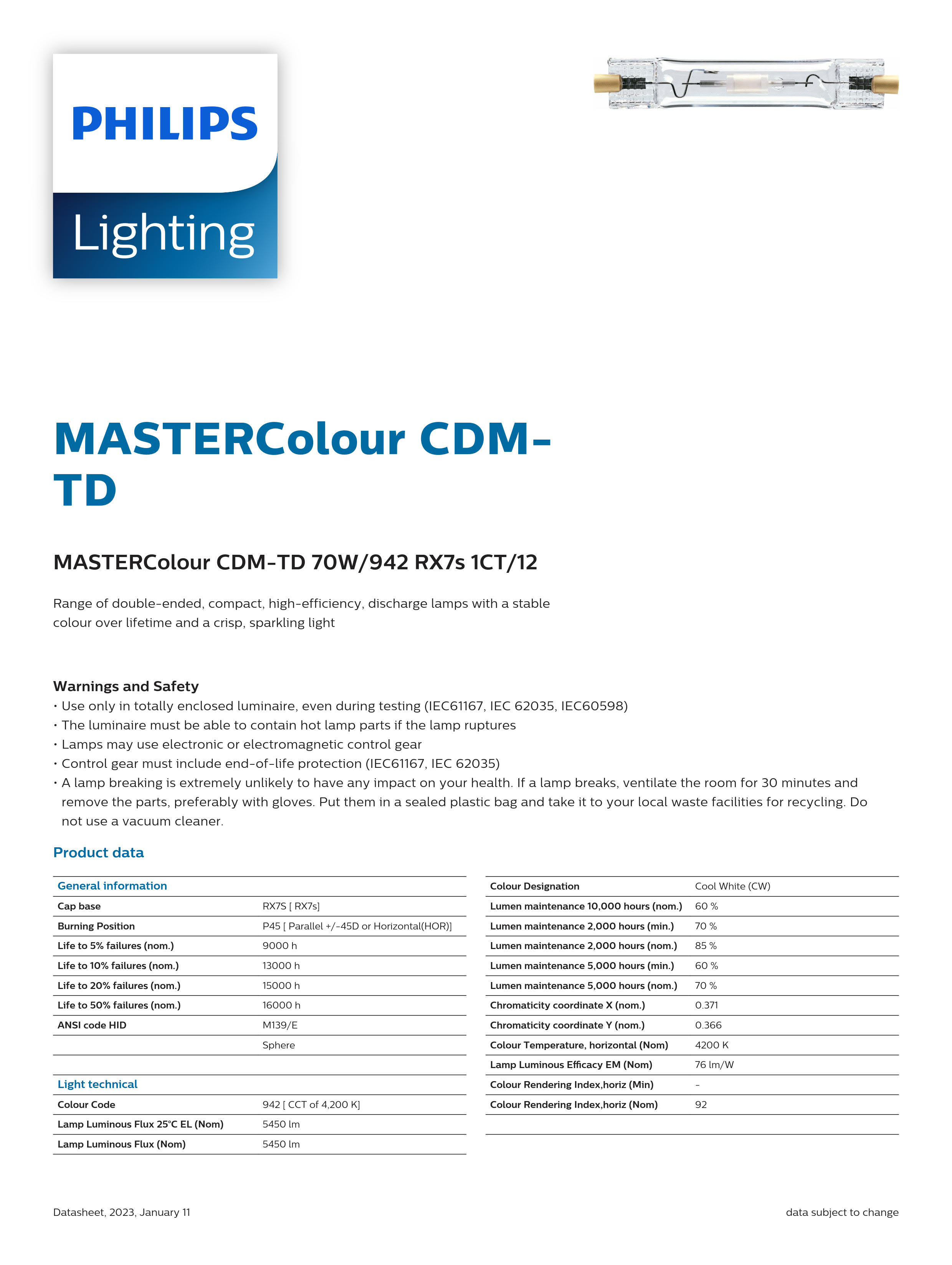

PRODUCT DATA

Product date

Model name:PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

12NC:928084705133

Cap-Base: RX7S

Life to 50% Failures: 16000 h

Luminous Flux: 5450 lm

Correlated Color Temperature: 4200 K

Luminous Efficacy: 76 lm/W

Power: 71.5 W

Bulb Shape: T22

PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

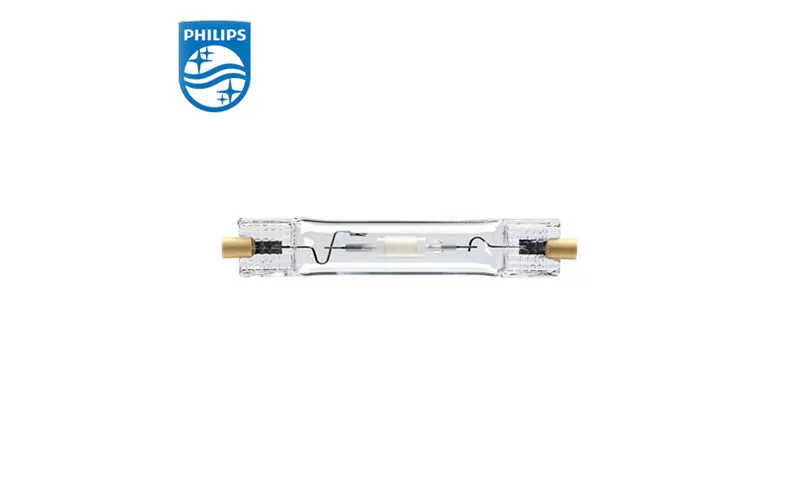

Range of double-ended, compact, high-efficiency, discharge lamps with a stable color over lifetime and a crisp, sparkling light

Warnings and Safety

• Use only in totally enclosed luminaire, even during testing, except for protected versions with PGZX18 cap, which are designed for open luminaires (IEC61167, IEC 62035, IEC60598)

• The luminaire must be able to contain hot lamp parts if the lamp ruptures

• Use only with electronic control gear

• Control gear must include end-of-life protection (IEC61167, IEC 62035)

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133

PHILIPS MASTERC CDM-TD 70W/942 RX7s 1CT/12 928084705133



PHILIPS Product 12NC List

12NC List:

928082205125  MASTERC CDM-TD 70W/830 RX7s 1CT/12

928084705133  MASTERC CDM-TD 70W/942 RX7s 1CT/12

928083605133  MASTERC CDM-TD 150W/830 RX7s 1CT

928084805133  MASTERC CDM-TD 150W/942 RX7s 1CT
