PHILIPS HID Bulb/PHILIPS HID Ballast

Home - PHILIPS Product - PHILIPS Traditional HID - PHILIPS HID Bulb/PHILIPS HID Ballast - PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

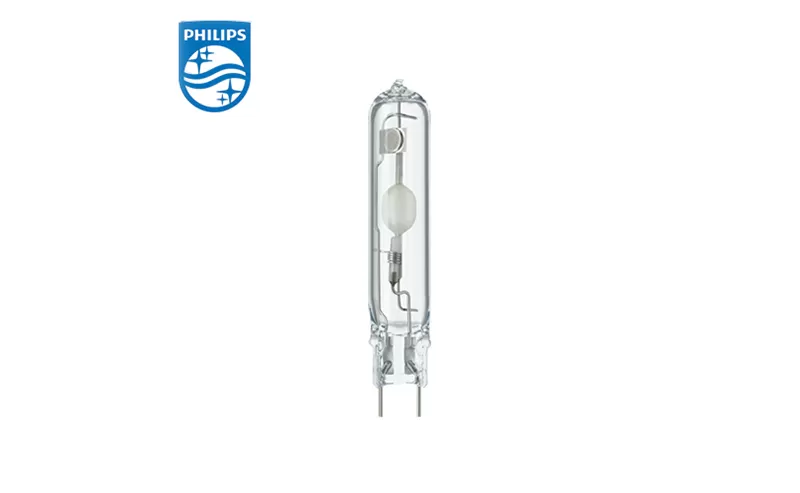

PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

Product date

Model name:PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

12NC:928193905131

Cap-Base: G8.5

Life to 50% Failures: 15000 h

Luminous Flux: 7450 lm

Correlated Color Temperature: 4200 K

Luminous Efficacy: 102 lm/W

Power: 73.2 W

Voltage: 88 V

Dimmable: No

Bulb Shape: T14


PRODUCT DATA

Product date

Model name:PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

12NC:928193905131

Cap-Base: G8.5

Life to 50% Failures: 15000 h

Luminous Flux: 7450 lm

Correlated Color Temperature: 4200 K

Luminous Efficacy: 102 lm/W

Power: 73.2 W

Voltage: 88 V

Dimmable: No

Bulb Shape: T14


MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

Compact, single-ended, very high-efficiency, long-life ceramic metal-halide discharge lamp producing crisp white sparkling light with high color rendering


Warnings and Safety

• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)

• The luminaire must be able to contain hot lamp parts if the lamp ruptures

• Use only with electronic control gear

• Control gear must include end-of-life protection (IEC61167, IEC 62035) • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131

PHILIPS MASTERColour CDM-TC Elite 70W/942 G8.5 928193905131


PHILIPS Product 12NC List

12NC LIST:

928189505131 MASTERColour CDM-TC Elite 70W/930 G8.5

928193905131 MASTERColour CDM-TC Elite 70W/942 G8.5

928193805131 MASTERColour CDM-TC Elite 35W/942 G8.5

928189105131 MASTERColour CDM-TC Elite 35W/930 G8.5

928191805131 MASTERColour CDM-TC Elite 50W/930 G8.5
