Product date
Model name:PHILIPS MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT/12 928093905130
12NC:928093905130
Cap-Base: PGJ5
Life to 50% Failures: 12000 h
Luminous Flux: 3000 lm
Correlated Color Temperature:3000 K
Luminous Efficacy: 77 lm/W
Power: 39.1 W
Voltage: 96 V
Dimmable: No
Bulb Shape: T13.3
PRODUCT DATA
Product date
Model name:PHILIPS MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT/12 928093905130
12NC:928093905130
Cap-Base: PGJ5
Life to 50% Failures: 12000 h
Luminous Flux: 3000 lm
Correlated Color Temperature:3000 K
Luminous Efficacy: 77 lm/W
Power: 39.1 W
Voltage: 96 V
Dimmable: No
Bulb Shape: T13.3

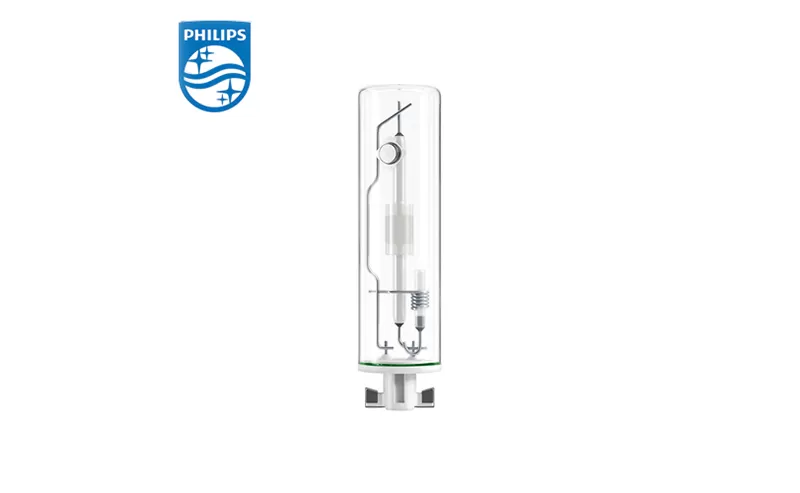

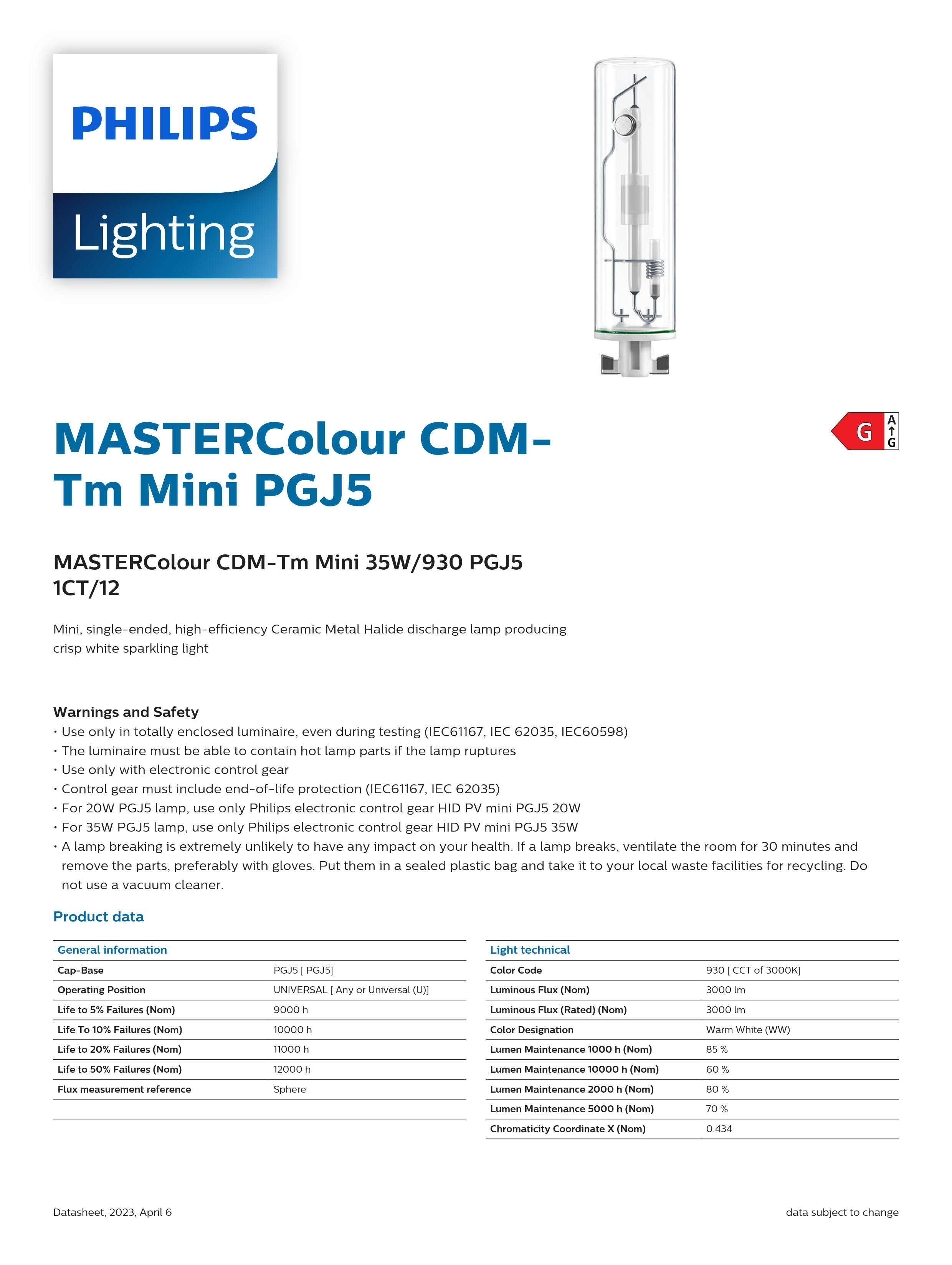

MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT/12 928093905130
Mini, single-ended, high-efficiency Ceramic Metal Halide discharge lamp producing crisp white sparkling light
Warnings and Safety
• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)
• The luminaire must be able to contain hot lamp parts if the lamp ruptures
• Use only with electronic control gear
• Control gear must include end-of-life protection (IEC61167, IEC 62035) • For 20W PGJ5 lamp, use only Philips electronic control gear HID PV mini PGJ5 20W
• For 35W PGJ5 lamp, use only Philips electronic control gear HID PV mini PGJ5 35W
• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
PHILIPS Product 12NC List
12NC List:
928093905130 MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT/12
928087905130 MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12
928187405130 MASTERColour CDM-Tm Elite Mini 35W/930 GU6.5
