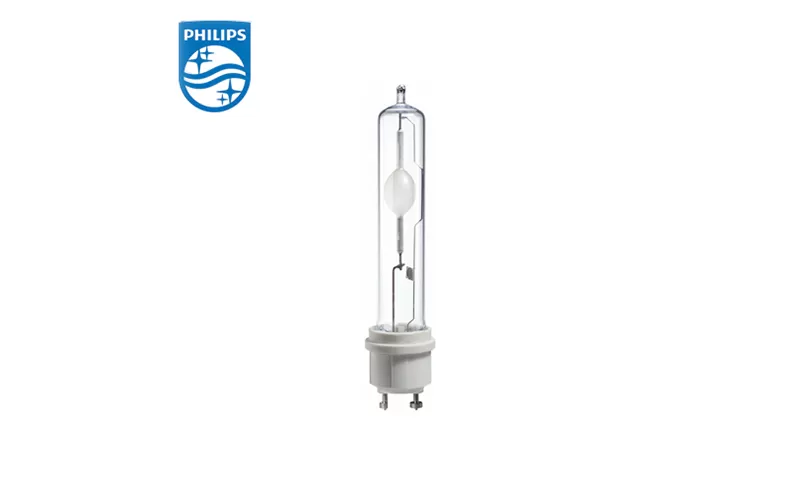

PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

Product date

Model name:PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

12NC:928601164834

Cap-Base: PGZ18

Life to 50% Failures: 30000 h

Luminous Flux: 35500 lm

Correlated Color Temperature: 4140 K

Luminous Efficacy: 112 lm/W

Power: 315.9 W

Voltage: 100 V

Bulb Shape: TMW28


PRODUCT DATA

Product date

Model name:PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

12NC:928601164834

Cap-Base: PGZ18

Life to 50% Failures: 30000 h

Luminous Flux: 35500 lm

Correlated Color Temperature: 4140 K

Luminous Efficacy: 112 lm/W

Power: 315.9 W

Voltage: 100 V

Bulb Shape: TMW28


MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

The medium wattage lighting system that gives superior, longer-lasting white light for both indoor and outdoor use.


Warnings and Safety

• Use only in totally enclosed luminaire, even during testing, except for protected versions with PGZX18 cap, which are designed for open luminaires (IEC61167, IEC 62035, IEC60598)

• The luminaire must be able to contain hot lamp parts if the lamp ruptures

• Use only with electronic control gear

• Control gear must include end-of-life protection (IEC61167, IEC 62035)

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834

PHILIPS MASTERColour CDM-TMW Elite 315W/942 1CT/12 928601164834


PHILIPS Product 12NC List

12NC List:

928601164734 MASTERColour CDM-TMW Elite 210W/930 1CT/12

928601164934 MASTERColour CDM-TMW Elite 210W/942 1CT/12

928601164634 MASTERColour CDM-TMW Elite 315W/930 1CT/12

928601164834 MASTERColour CDM-TMW Elite 315W/942 1CT/12
